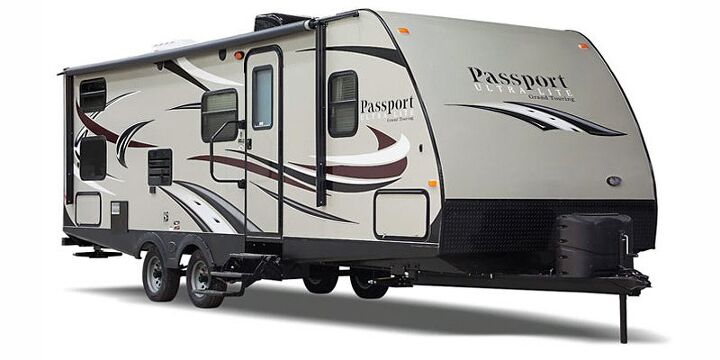

2017 Keystone RV Passport Ultra Lite Grand Touring 2520rl Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2017 Keystone RV Passport Ultra Lite Grand Touring 2520rl
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 7000 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 4930 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 550 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 2070 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 358 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 127 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 78 in | - | - | - |
Specs
Buy Now
More
GVWR
7000 lbs
Dry Weight
4930 lbs
Hitch Weight
550 lbs
Payload Capacity
2070 lbs
Length
358 in
Width
96 in
Exterior Height
127 in
Interior Height
78 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 43 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 76 gal | - | - | - |
| Black Water Tank Capacity | 38 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 40 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
43 gal
Gray Water Tank Capacity
76 gal
Black Water Tank Capacity
38 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Spare Tire Location | Exterior Mounted | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire | ST205/75R 14C Full Spec | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
Specs
Buy Now
More
Spare Tire Location
Exterior Mounted
Rear Wheel Diameter
14
Front Brake Type
Not Applicable
Rear Tire Aspect Ratio
75
Rear Tire
ST205/75R 14C Full Spec
Rear Tire Width
205
Wheels Composition
Steel
Rear Brake Type
Electric Drum
Rear Tire Speed Rating
C
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Living Area Location | Rear | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Sofa Material | Vinyl | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
Specs
Buy Now
More
Number Of Convertible / Sofa Beds
2
Number Of Sofas
1
Master Bedroom Mirror Doors
Yes
Master Bedroom Flooring Type
Vinyl
Number Of Bathrooms
1
Living Area Location
Rear
Master Bedroom Door Style
Full Sliding Door
Reclining Sofa
No
Number Of Queen Size Beds
1
Sofa Material
Vinyl
Full Size Master Bedroom Closet
No
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | U-shaped Dinette | - | - | - |
Specs
Buy Now
More
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
U-shaped Dinette
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Plastic
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Overhead Fan | Yes | Overhead Fan | - | - |
| Screened Room | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Surround Sound | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Metallic | No | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Satellite | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Heated | No | - | - | - |
Specs
Buy Now
More
Overhead Fan
Yes
Screened Room
No
Cable Prewiring
Yes
Refrigerator
Standard
Air Conditioning Prewiring
Yes
Washer / Dryer Prewiring
No
Power Retractable Awning
Yes
Surround Sound
No
Heat Prewiring
Yes
Metallic
No
Satellite Prewiring
No
Bunkhouse
No
Interior Wood Finish
Yes
Wallpaper
Yes
Phone Prewiring
No
Sliding Glass Door
No
Water Heater Tank Bypass
Yes
Satellite
No
Battery Power Converter
Yes
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Heated
No
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Number Of Televisions
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Keystone RV Inc. | - | - | - |
| Year | 2017 | - | - | - |
| Make | Keystone | - | - | - |
| Display Name | Passport Ultra Lite Grand Touring 2520RL | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2016 | - | - | - |
Specs
Buy Now
More
Parent Company
Keystone RV Inc.
Year
2017
Make
Keystone
Display Name
Passport Ultra Lite Grand Touring 2520RL
Class
Travel Trailer
Max Sleeping Count
6
Number of Slideouts
1
Introduction Year
2016
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.0
Final Tow-Ready Score
7.0
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.5
Final Storage Space
6.5
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Keystone RV Passport Ultra Lite Grand Touring 2520rl, ensure your vehicle's rated tow capacity exceeds its GVWR of 7000 lbs. With a dry weight of 4930 lbs and hitch weight of 550 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 4930 lbs and a GVWR of 7000 lbs, giving a payload capacity of 2070 lbs for gear, water, and supplies.
The approximate dimensions are length 358 in., width 96 in., and height 127 in. Always confirm clearances for garages, storage, and campsites.
The Passport Ultra Lite Grand Touring 2520rl includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Passport Ultra Lite Grand Touring 2520rl owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 7000 lbs and dry weight of 4930 lbs, the Passport Ultra Lite Grand Touring 2520rl is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

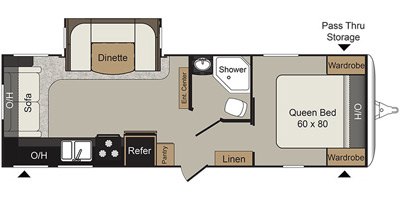

This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Passport Ultra Lite Grand Touring 2520rl features body construction with sidewalls and 2 axle(s). Its GVWR of 7000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
