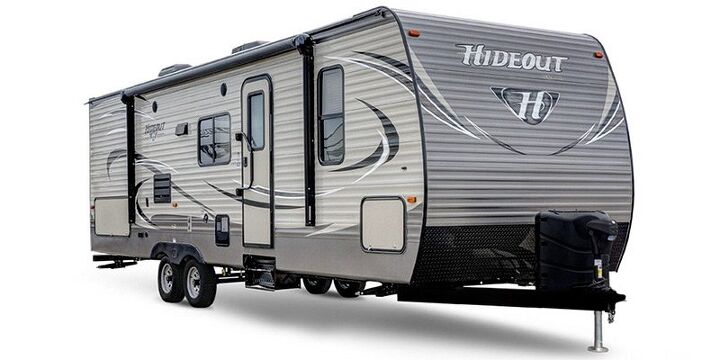

2017 Keystone RV Hideout 31rbts Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2017 Keystone RV Hideout 31rbts
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 9770 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 8447 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 970 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 1323 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 436 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 134 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 81 in | - | - | - |
Specs
Buy Now
More
GVWR
9770 lbs
Dry Weight
8447 lbs
Hitch Weight
970 lbs
Payload Capacity
1323 lbs
Length
436 in
Width
96 in
Exterior Height
134 in
Interior Height
81 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 43 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 39 gal | - | - | - |
| Black Water Tank Capacity | 39 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
43 gal
Gray Water Tank Capacity
39 gal
Black Water Tank Capacity
39 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Width | 225 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Speed Rating | D | - | - | - |
| Rear Tire | 225/75R 15D Full Spec | - | - | - |
| Rear Wheel Diameter | 15 | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
Specs
Buy Now
More
Rear Brake Type
Electric Drum
Rear Tire Width
225
Wheels Composition
Steel
Front Brake Type
Not Applicable
Rear Tire Speed Rating
D
Rear Tire
225/75R 15D Full Spec
Rear Wheel Diameter
15
Rear Tire Aspect Ratio
75
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Bunk Beds | 2 | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Sofas | 2 | Tri-Fold Sofa | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Number Of Convertible / Sofa Beds | 3 | - | - | - |
| Living Area Location | Center | - | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Master Bedroom Location | Front / Rear | - | - | - |
| Sofa Material | Vinyl | - | - | - |
Specs
Buy Now
More
Number Of Bunk Beds
2
Master Bedroom Flooring Type
Vinyl
Reclining Sofa
No
Full Size Master Bedroom Closet
No
Number Of Queen Size Beds
1
Number Of Sofas
2
Master Bedroom Shades / Curtains
Yes
Number Of Bathrooms
1
Master Bedroom Door Style
Full Sliding Door
Number Of Convertible / Sofa Beds
3
Living Area Location
Center
Master Bedroom Mirror Doors
No
Master Bedroom Location
Front / Rear
Sofa Material
Vinyl
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | U-shaped Dinette | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
Specs
Buy Now
More
Refrigerator Size
Mid-Size
Kitchen Table Configuration
U-shaped Dinette
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Aluminum | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Curtain | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Aluminum
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bunkhouse | Yes | - | - | - |
| Metallic | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Satellite | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Heated | No | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Screened Room | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
Specs
Buy Now
More
Bunkhouse
Yes
Metallic
No
Satellite Prewiring
Yes
Wallpaper
Yes
Interior Wood Finish
Yes
Phone Prewiring
No
Sliding Glass Door
No
Water Heater Tank Bypass
Yes
Satellite
No
Battery Power Converter
Yes
TV Antenna Prewiring
Yes
Heated
No
Power Retractable Slideout
Yes
Cable Prewiring
Yes
Overhead Fan
Yes
Screened Room
No
Washer / Dryer Prewiring
No
Refrigerator
Standard
Air Conditioning Prewiring
Yes
Surround Sound
Yes
Heat Prewiring
Yes
Power Retractable Awning
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Keystone RV Inc. | - | - | - |
| Year | 2017 | - | - | - |
| Make | Keystone | - | - | - |
| Display Name | Hideout (East) 31RBTS | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 10 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2013 | - | - | - |
Specs
Buy Now
More
Parent Company
Keystone RV Inc.
Year
2017
Make
Keystone
Display Name
Hideout (East) 31RBTS
Class
Travel Trailer
Max Sleeping Count
10
Number of Slideouts
3
Introduction Year
2013
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Tow-Ready Score
5.0
Living Space & Layout
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.0
Final Living Space & Layout
6.0
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
4.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
-1.0
Final Storage Space
4.0
Off-Grid & Campsites
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Off-Grid & Campsites
5.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Keystone RV Hideout 31rbts, ensure your vehicle's rated tow capacity exceeds its GVWR of 9770 lbs. With a dry weight of 8447 lbs and hitch weight of 970 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 8447 lbs and a GVWR of 9770 lbs, giving a payload capacity of 1323 lbs for gear, water, and supplies.
The approximate dimensions are length 436 in., width 96 in., and height 134 in. Always confirm clearances for garages, storage, and campsites.
The Hideout 31rbts includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Hideout 31rbts owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 9770 lbs and dry weight of 8447 lbs, the Hideout 31rbts is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

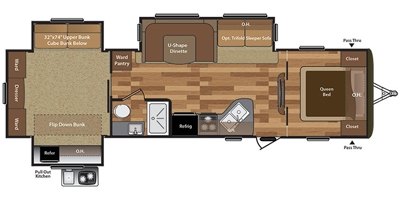

This floorplan sleeps up to 10 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Hideout 31rbts features body construction with sidewalls and 2 axle(s). Its GVWR of 9770 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
