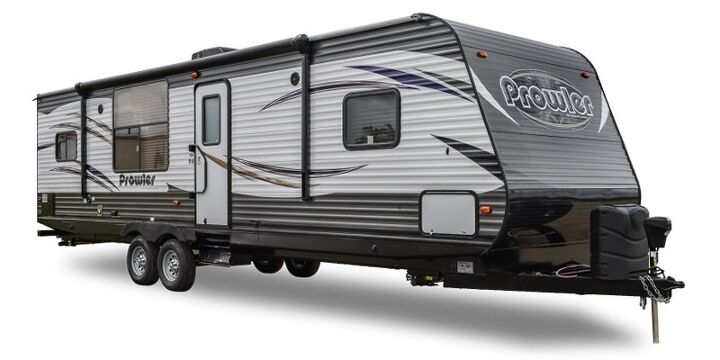

2017 Heartland Prowler 20p-rbs Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2017 Heartland Prowler 20p-rbs
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 7300 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 5320 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 450 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 1930 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 312 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 80 in | - | - | - |
| Exterior Height | 129 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
7300 lbs
Dry Weight
5320 lbs
Hitch Weight
450 lbs
Payload Capacity
1930 lbs
Length
312 in
Width
96 in
Interior Height
80 in
Exterior Height
129 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 45 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
45
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 41 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 35 gal | - | - | - |
| Black Water Tank Capacity | 35 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
41 gal
Gray Water Tank Capacity
35 gal
Black Water Tank Capacity
35 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire | ST205/75 R14-C Full Spec | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
Specs
Buy Now
More
Rear Tire
ST205/75 R14-C Full Spec
Rear Tire Width
205
Rear Brake Type
Electric Drum
Rear Tire Speed Rating
C
Wheels Composition
Steel
Front Brake Type
Not Applicable
Rear Wheel Diameter
14
Rear Tire Aspect Ratio
75
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Living Area Location | Center | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Door Style | Accordion | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Location | Front | - | - | - |
Specs
Buy Now
More
Master Bedroom Mirror Doors
Yes
Living Area Location
Center
Number Of Convertible / Sofa Beds
1
Master Bedroom Flooring Type
Vinyl
Full Size Master Bedroom Closet
No
Number Of Bathrooms
1
Master Bedroom Shades / Curtains
Yes
Master Bedroom Door Style
Accordion
Number Of Queen Size Beds
1
Master Bedroom Location
Front
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen Table Configuration | U-shaped Dinette | - | - | - |
| Oven Depth | 20 / 508 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Full-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
Specs
Buy Now
More
Kitchen Table Configuration
U-shaped Dinette
Oven Depth
20 / 508 in
Kitchen Location
Center
Refrigerator Size
Full-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Power Mode
Electric / Propane
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Toilet Type
Porcelain
Bathroom Location
Rear
Bathroom Flooring Type
Vinyl
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 14 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Aluminum | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Awning Length
14 ft/m
Number of Awnings
1
Number Of Axles
2
Sidewall Construction
Aluminum
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Metallic | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heated | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Surround Sound | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Satellite Prewiring
Yes
Wallpaper
Yes
Heat Prewiring
Yes
Power Retractable Slideout
Yes
Sliding Glass Door
No
Bunkhouse
No
Metallic
No
Water Heater Tank Bypass
Yes
Interior Wood Finish
Yes
Satellite
No
TV Antenna Prewiring
Yes
Phone Prewiring
No
Battery Power Converter
Yes
Screened Room
No
Washer / Dryer Prewiring
No
Heated
No
Refrigerator
Standard
Surround Sound
No
Cable Prewiring
Yes
Overhead Fan
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Heartland Recreational Vehicles LLC | - | - | - |
| Year | 2017 | - | - | - |
| Make | Heartland | - | - | - |
| Display Name | Prowler 20P RBS | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2012 | - | - | - |
Specs
Buy Now
More
Parent Company
Heartland Recreational Vehicles LLC
Year
2017
Make
Heartland
Display Name
Prowler 20P RBS
Class
Travel Trailer
Max Sleeping Count
4
Number of Slideouts
1
Introduction Year
2012
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
7.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.8
Final Tow-Ready Score
7.8
Living Space & Layout
7.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.3
Final Living Space & Layout
7.3
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.8
Final Comfort & Features
5.8
Storage Space
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.0
Final Storage Space
6.0
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Heartland Prowler 20p-rbs, ensure your vehicle's rated tow capacity exceeds its GVWR of 7300 lbs. With a dry weight of 5320 lbs and hitch weight of 450 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 5320 lbs and a GVWR of 7300 lbs, giving a payload capacity of 1930 lbs for gear, water, and supplies.
The approximate dimensions are length 312 in., width 96 in., and height 129 in. Always confirm clearances for garages, storage, and campsites.
The Prowler 20p-rbs includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Prowler 20p-rbs owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 7300 lbs and dry weight of 5320 lbs, the Prowler 20p-rbs is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

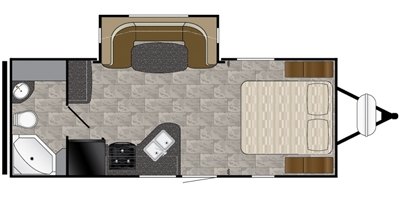

This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Prowler 20p-rbs features body construction with sidewalls and 2 axle(s). Its GVWR of 7300 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
