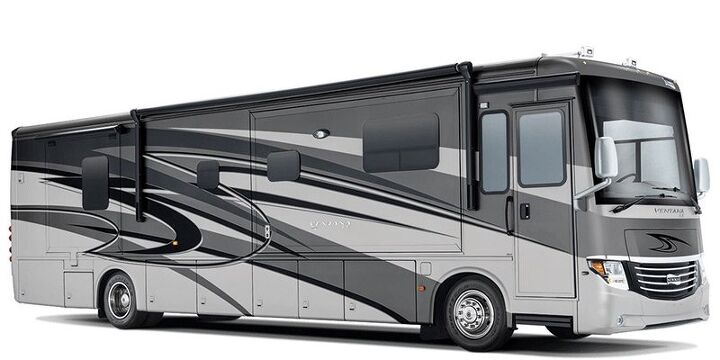

2016 Newmar Ventana LE 4037 Specs
Know Before You Drive
Key specs for safe motorhome driving
⚠️ Height Alert: Over 11' tall. Watch for low bridges and overhangs!
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
36,400 lbs
License
May require CDL
Type
Class A
License Requirement
May require CDL
Standard
Check State
CDL May Apply
Essential Upgrades for the 2016 Newmar Ventana LE 4037
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 36400 lbs | - | - | - |
| Dry Weight | 29700 lbs | - | - | - |
| Payload Capacity | 6700 lbs | Coil SumoSprings | - | - |
| Length | 490 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 101.5 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 84 in | - | - | - |
| Towing Capacity | 5000 / 2268 lbs | - | - | - |
| Exterior Height | 154 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
36400 lbs
Dry Weight
29700 lbs
Payload Capacity
6700 lbs
Length
490 in
Width
101.5 in
Interior Height
84 in
Towing Capacity
5000 / 2268 lbs
Exterior Height
154 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 105 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 65 gal | - | - | - |
| Black Water Tank Capacity | 45 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 135.7 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
105 gal
Gray Water Tank Capacity
65 gal
Black Water Tank Capacity
45 gal
Number Of Propane Tanks
1
Propane Tank Capacity
135.7 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Wheel Width | 8.25 in | - | - | - |
| Front Wheel Diameter | 22.5 | - | - | - |
| Wheelbase | 276 / 5791.2 in | - | - | - |
| Rear Tire Width | 275 | - | - | - |
| Rear Tire | Michelin® XXZE2 275/70R 22.5 Full Spec | - | - | - |
| Front Tire | Michelin® XXZE2 275/70R 22.5 Full Spec | - | - | - |
| Front Tire Width | 275 | - | - | - |
| Tire Brand | Michelin® | - | - | - |
| Rear Tire Aspect Ratio | 70 | - | - | - |
| Rear Brake Type | Hydraulic Drum | - | - | - |
| Rear Wheel Diameter | 22.5 | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Front Tire Aspect Ratio | 70 | - | - | - |
| Rear Wheel Width | 8.25 in | - | - | - |
Specs
Buy Now
More
Front Wheel Width
8.25 in
Front Wheel Diameter
22.5
Wheelbase
276 / 5791.2 in
Rear Tire Width
275
Rear Tire
Michelin® XXZE2 275/70R 22.5 Full Spec
Front Tire
Michelin® XXZE2 275/70R 22.5 Full Spec
Front Tire Width
275
Tire Brand
Michelin®
Rear Tire Aspect Ratio
70
Rear Brake Type
Hydraulic Drum
Rear Wheel Diameter
22.5
Front Brake Type
Hydraulic Disc
Wheels Composition
Aluminum
Front Tire Aspect Ratio
70
Rear Wheel Width
8.25 in
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 10 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
10 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Bathrooms | 2 | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Sofa Material | Leather | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of King Size Beds | 1 | - | - | - |
| Master Bedroom Location | Center | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Number Of Sofas | 2 | Tri-Fold Sofa | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Convertible / Sofa Beds | 3 | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Living Area Location | Front | - | - | - |
Specs
Buy Now
More
Number Of Bathrooms
2
Master Bedroom Door Style
Full Sliding Door
Master Bedroom Shades / Curtains
Yes
Sofa Material
Leather
Reclining Sofa
No
Number Of King Size Beds
1
Master Bedroom Location
Center
Master Bedroom Mirror Doors
Yes
Number Of Sofas
2
Full Size Master Bedroom Closet
No
Number Of Convertible / Sofa Beds
3
Master Bedroom Flooring Type
Carpet
Living Area Location
Front
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear / Center | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Rear / Center
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 18.5 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Brand Name | JBL | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
18.5 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
1
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Brand Name
JBL
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Cable Prewiring | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Phone Prewiring | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Turbocharged | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Satellite | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Supercharged | No | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Power Adjustable Seat | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
Specs
Buy Now
More
Cable Prewiring
Yes
TV Antenna Prewiring
Yes
Phone Prewiring
Yes
Satellite Prewiring
Yes
Surround Sound
Yes
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Washer / Dryer Prewiring
Yes
Power Retractable Awning
Yes
Seat Armrests
Yes
Turbocharged
Yes
Overhead Fan
Yes
Satellite
Yes
Bunkhouse
No
Supercharged
No
Reclining Seats
Yes
Wallpaper
Yes
Power Adjustable Seat
Yes
Screened Room
No
Swivel Seats
Yes
Overdrive
Yes
Refrigerator
Standard
Battery Power Converter
Yes
Sliding Glass Door
No
Interior Wood Finish
Yes
Water Heater Tank Bypass
Yes
Power Retractable Slideout
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Seat Material | Leather | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Number Of Seats | 2 | - | - | - |
| Seat Type | Bucket | - | - | - |
| Number Of Rows | 1 | - | - | - |
Specs
Buy Now
More
Seat Material
Leather
Seat Specifications
Standard
Number Of Seats
2
Seat Type
Bucket
Number Of Rows
1
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Model | XC-Series | - | - | - |
| Chassis Brand | Freightliner | - | - | - |
Specs
Buy Now
More
Chassis Model
XC-Series
Chassis Brand
Freightliner
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Speeds | 6 | - | - | - |
| Transmission Type | Automatic | - | - | - |
| Driveline Type | 4X2 | - | - | - |
| Transmission Brand | Allison | - | - | - |
Specs
Buy Now
More
Number Of Speeds
6
Transmission Type
Automatic
Driveline Type
4X2
Transmission Brand
Allison
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Engine Type | I6 Diesel Pusher | - | - | - |
| Torque | 1085 Nm | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Torque RPM | 1800 | - | - | - |
| Engine Brand Name | Cummins | - | - | - |
| Carburetion | Standard | - | - | - |
| Horsepower RPM | 2400 | - | - | - |
| Horsepower | 360 bhp | - | - | - |
| Cylinders | 6 | - | - | - |
Specs
Buy Now
More
Engine Type
I6 Diesel Pusher
Torque
1085 Nm
Carburetion Type
Fuel Injected
Torque RPM
1800
Engine Brand Name
Cummins
Carburetion
Standard
Horsepower RPM
2400
Horsepower
360 bhp
Cylinders
6
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 2 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior
Number Of Televisions
2
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Type | Diesel | Fuel Treatment | - | - |
| Fuel Capacity | 100 / 379 gal/l | 5Gal Gas Can | - | - |
Specs
Buy Now
More
Fuel Type
Diesel
Fuel Capacity
100 / 379 gal/l
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 2 | - | - | - |
Specs
Buy Now
More
Number Of Radios
2
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Winnebago Industries | - | - | - |
| Year | 2016 | - | - | - |
| Make | Newmar | - | - | - |
| Display Name | Ventana LE 4037 | - | - | - |
| Class | Class A | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2016 | - | - | - |
Specs
Buy Now
More
Parent Company
Winnebago Industries
Year
2016
Make
Newmar
Display Name
Ventana LE 4037
Class
Class A
Max Sleeping Count
8
Number of Slideouts
3
Introduction Year
2016
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class a.
Drivability & Handling
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.8
Final Drivability & Handling
5.8
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.8
Final Comfort & Features
5.8
Storage Space
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.0
Final Storage Space
6.0
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2016 Newmar Ventana LE 4037, ensure your vehicle's rated tow capacity exceeds its GVWR of 36400 lbs. With a dry weight of 29700 lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class A has a dry weight of 29700 lbs and a GVWR of 36400 lbs, giving a payload capacity of 6700 lbs for gear, water, and supplies.
The approximate dimensions are length 490 in., width 101 in., and height 154 in. Always confirm clearances for garages, storage, and campsites.
The Ventana LE 4037 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Ventana LE 4037 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 36400 lbs and dry weight of 29700 lbs, the Ventana LE 4037 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

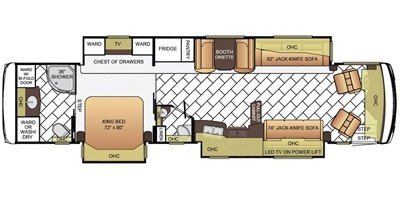

This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class A.
The Ventana LE 4037 features body construction with sidewalls and 1 axle(s). Its GVWR of 36400 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
