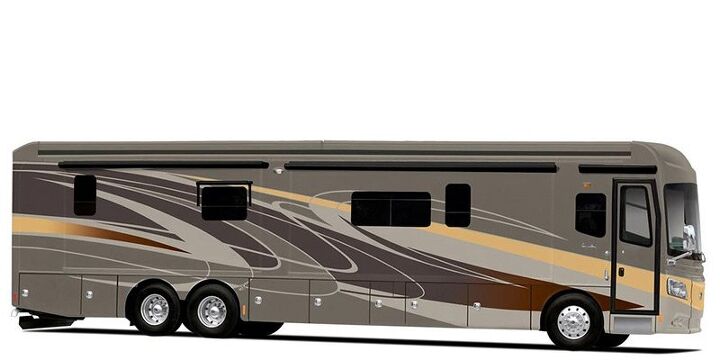

2016 Monaco Dynasty 45p Specs
Know Before You Drive
Key specs for safe motorhome driving
⚠️ Height Alert: Over 11' tall. Watch for low bridges and overhangs!
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
51,000 lbs
License
May require CDL
Type
Class A
License Requirement
May require CDL
Standard
Check State
CDL May Apply
Essential Upgrades for the 2016 Monaco Dynasty 45p
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 51000 lbs | - | - | - |
| Length | 539.5 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 102 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 84 in | - | - | - |
| Towing Capacity | 15000 / 6804 lbs | - | - | - |
| Exterior Height | 155 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
51000 lbs
Length
539.5 in
Width
102 in
Interior Height
84 in
Towing Capacity
15000 / 6804 lbs
Exterior Height
155 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 100 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 60 gal | - | - | - |
| Black Water Tank Capacity | 40 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
100 gal
Gray Water Tank Capacity
60 gal
Black Water Tank Capacity
40 gal
Number Of Propane Tanks
1
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheelbase | 302 / 7670.8 in | - | - | - |
| Front Tire Aspect Ratio | 80 | - | - | - |
| Rear Tire Aspect Ratio | 80 | - | - | - |
| Rear Tire | Michelin® 315/80R 22.5 Full Spec | - | - | - |
| Front Tire | Michelin® 315/80R 22.5 Full Spec | - | - | - |
| Front Wheel Diameter | 22.5 | - | - | - |
| Rear Wheel Diameter | 22.5 | - | - | - |
| Tire Brand | Michelin® | - | - | - |
| Rear Brake Type | Hydraulic Drum | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Front Tire Width | 315 | - | - | - |
| Rear Tire Width | 315 | - | - | - |
| Rear Wheel Width | 9 in | - | - | - |
| Front Wheel Width | 9 in | - | - | - |
Specs
Buy Now
More
Wheelbase
302 / 7670.8 in
Front Tire Aspect Ratio
80
Rear Tire Aspect Ratio
80
Rear Tire
Michelin® 315/80R 22.5 Full Spec
Front Tire
Michelin® 315/80R 22.5 Full Spec
Front Wheel Diameter
22.5
Rear Wheel Diameter
22.5
Tire Brand
Michelin®
Rear Brake Type
Hydraulic Drum
Front Brake Type
Hydraulic Disc
Wheels Composition
Aluminum
Front Tire Width
315
Rear Tire Width
315
Rear Wheel Width
9 in
Front Wheel Width
9 in
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Flooring Type | Tile | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Number Of Bathrooms | 2 | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Living Area Location | Front | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Location | Center | - | - | - |
| Sofa Material | Leather | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
Specs
Buy Now
More
Master Bedroom Flooring Type
Tile
Master Bedroom Shades / Curtains
Yes
Number Of Sofas
1
Number Of Bathrooms
2
Master Bedroom Door Style
Full Sliding Door
Master Bedroom Mirror Doors
Yes
Living Area Location
Front
Full Size Master Bedroom Closet
Yes
Number Of Queen Size Beds
1
Master Bedroom Location
Center
Sofa Material
Leather
Number Of Convertible / Sofa Beds
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Tile | - | - | - |
| Refrigerator Size | Full-Size | - | - | - |
| Kitchen Table Configuration | Chairs | - | - | - |
Specs
Buy Now
More
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
2
Kitchen / Living Area Flooring Type
Carpet / Tile
Refrigerator Size
Full-Size
Kitchen Table Configuration
Chairs
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Rear / Center | - | - | - |
| Bathroom Flooring Type | Tile | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Rear / Center
Bathroom Flooring Type
Tile
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 2 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Brand Name | Sony | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
2
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Brand Name
Sony
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Reclining Seats | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Power Adjustable Seat | Yes | - | - | - |
| Satellite | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Turbocharged | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Supercharged | No | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Metallic | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
Specs
Buy Now
More
Reclining Seats
Yes
Air Conditioning Prewiring
Yes
Surround Sound
Yes
Seat Armrests
Yes
Heat Prewiring
Yes
Washer / Dryer Prewiring
Yes
Power Adjustable Seat
Yes
Satellite
Yes
Bunkhouse
No
Turbocharged
Yes
Overdrive
Yes
Supercharged
No
Power Retractable Slideout
Yes
Screened Room
No
Wallpaper
Yes
Phone Prewiring
No
Refrigerator
Standard
Battery Power Converter
Yes
Swivel Seats
Yes
Metallic
No
Sliding Glass Door
No
Interior Wood Finish
Yes
Water Heater Tank Bypass
Yes
Power Retractable Awning
Yes
Satellite Prewiring
Yes
Cable Prewiring
Yes
TV Antenna Prewiring
Yes
Overhead Fan
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Seat Specifications | Standard | - | - | - |
| Seat Type | Bucket | - | - | - |
| Number Of Rows | 1 | - | - | - |
| Seat Material | Leather | - | - | - |
| Number Of Seats | 2 | - | - | - |
Specs
Buy Now
More
Seat Specifications
Standard
Seat Type
Bucket
Number Of Rows
1
Seat Material
Leather
Number Of Seats
2
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Model | SL Series | - | - | - |
| Chassis Brand | Freightliner | - | - | - |
Specs
Buy Now
More
Chassis Model
SL Series
Chassis Brand
Freightliner
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Transmission Brand | Allison | - | - | - |
| Number Of Speeds | 6 | - | - | - |
| Transmission Type | Automatic | - | - | - |
| Driveline Type | 4X2 | - | - | - |
Specs
Buy Now
More
Transmission Brand
Allison
Number Of Speeds
6
Transmission Type
Automatic
Driveline Type
4X2
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Cylinders | 6 | - | - | - |
| Engine Type | I6 Diesel Pusher | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Carburetion | Standard | - | - | - |
| Torque RPM | 1200 | - | - | - |
| Engine Brand Name | Cummins | - | - | - |
| Torque | 2230.3 Nm | - | - | - |
| Horsepower | 500 bhp | - | - | - |
| Horsepower RPM | 1800 | - | - | - |
Specs
Buy Now
More
Cylinders
6
Engine Type
I6 Diesel Pusher
Carburetion Type
Fuel Injected
Carburetion
Standard
Torque RPM
1200
Engine Brand Name
Cummins
Torque
2230.3 Nm
Horsepower
500 bhp
Horsepower RPM
1800
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Television Brand Name | Sony | - | - | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 3 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Television Brand Name
Sony
Number Of Discs
1
Speaker Location
Interior
Number Of Televisions
3
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 150 / 567.8 gal/l | 5Gal Gas Can | - | - |
| Fuel Type | Diesel | Fuel Treatment | - | - |
Specs
Buy Now
More
Fuel Capacity
150 / 567.8 gal/l
Fuel Type
Diesel
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 2 | - | - | - |
| GPS Brand | Rand McNally | - | - | - |
Specs
Buy Now
More
Number Of Radios
2
GPS Brand
Rand McNally
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | REV Group | - | - | - |
| Year | 2016 | - | - | - |
| Make | Monaco | - | - | - |
| Display Name | Dynasty® 45P | - | - | - |
| Class | Class A | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Number of Slideouts | 4 | - | - | - |
| Introduction Year | 2015 | - | - | - |
Specs
Buy Now
More
Parent Company
REV Group
Year
2016
Make
Monaco
Display Name
Dynasty® 45P
Class
Class A
Max Sleeping Count
4
Number of Slideouts
4
Introduction Year
2015
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class a.
Drivability & Handling
4.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
-0.7
Final Drivability & Handling
4.3
Living Space & Layout
8.0/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+3.0
Final Living Space & Layout
8.0
Comfort & Features
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.3
Final Comfort & Features
6.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
7.5/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+2.5
Final Off-Grid & Campsites
7.5
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2016 Monaco Dynasty 45p, ensure your vehicle's rated tow capacity exceeds its GVWR of 51000 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class A has a dry weight of lbs and a GVWR of 51000 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 539 in., width 102 in., and height 155 in. Always confirm clearances for garages, storage, and campsites.
The Dynasty 45p includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Dynasty 45p owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 51000 lbs and dry weight of lbs, the Dynasty 45p is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class A.
The Dynasty 45p features body construction with sidewalls and 2 axle(s). Its GVWR of 51000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
