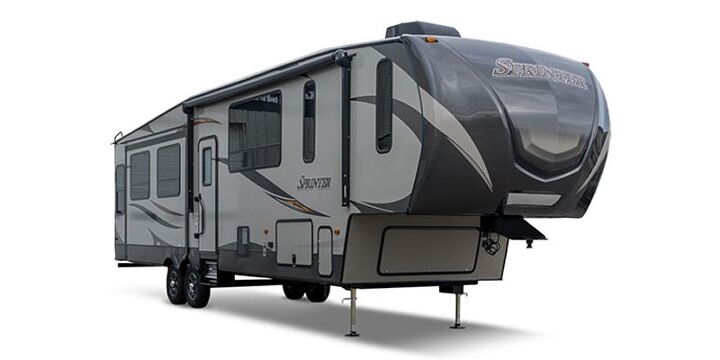

2016 Keystone RV Sprinter 293fwbhs Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2016 Keystone RV Sprinter 293fwbhs
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 12700 lbs | - | - | - |
| Dry Weight | 10030 lbs | - | - | - |
| Hitch Weight | 1980 lbs | - | - | - |
| Payload Capacity | 2670 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 420 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 100 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 150 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
12700 lbs
Dry Weight
10030 lbs
Hitch Weight
1980 lbs
Payload Capacity
2670 lbs
Length
420 in
Width
100 in
Exterior Height
150 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 87 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 120 gal | - | - | - |
| Black Water Tank Capacity | 72 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
87 gal
Gray Water Tank Capacity
120 gal
Black Water Tank Capacity
72 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Width | 235 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Speed Rating | E | - | - | - |
| Rear Tire | 235/80R 16E Full Spec | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Tire Aspect Ratio | 80 | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
Specs
Buy Now
More
Rear Brake Type
Electric Drum
Rear Tire Width
235
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Tire Speed Rating
E
Rear Tire
235/80R 16E Full Spec
Rear Wheel Diameter
16
Rear Tire Aspect Ratio
80
Wheels Composition
Aluminum
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 12 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
12 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Sofas | 2 | Tri-Fold Sofa | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Bathrooms | 2 | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Number Of Convertible / Sofa Beds | 3 | - | - | - |
| Living Area Location | Center | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Location | Front / Rear | - | - | - |
| Sofa Material | Vinyl | - | - | - |
| Number Of Bunk Beds | 1 | - | - | - |
Specs
Buy Now
More
Reclining Sofa
No
Master Bedroom Flooring Type
Carpet
Number Of Queen Size Beds
1
Number Of Sofas
2
Full Size Master Bedroom Closet
Yes
Master Bedroom Shades / Curtains
Yes
Number Of Bathrooms
2
Master Bedroom Door Style
Full Sliding Door
Number Of Convertible / Sofa Beds
3
Living Area Location
Center
Master Bedroom Mirror Doors
Yes
Master Bedroom Location
Front / Rear
Sofa Material
Vinyl
Number Of Bunk Beds
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Oven Depth | 17 / 431.8 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Bench Seats
Oven Depth
17 / 431.8 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Rear / Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Rear / Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wallpaper | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Satellite | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Heated | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Screened Room | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Metallic | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Bunkhouse | Yes | - | - | - |
Specs
Buy Now
More
Wallpaper
Yes
Interior Wood Finish
Yes
Phone Prewiring
No
Sliding Glass Door
No
Satellite
No
Battery Power Converter
Yes
Water Heater Tank Bypass
Yes
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Heated
No
Overhead Fan
Yes
Screened Room
No
Cable Prewiring
Yes
Refrigerator
Standard
Air Conditioning Prewiring
Yes
Washer / Dryer Prewiring
No
Power Retractable Awning
Yes
Surround Sound
Yes
Heat Prewiring
Yes
Metallic
No
Satellite Prewiring
Yes
Bunkhouse
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Keystone RV Inc. | - | - | - |
| Year | 2016 | - | - | - |
| Make | Keystone | - | - | - |
| Display Name | Sprinter Wide Body 293FWBHS | - | - | - |
| Class | Fifth Wheel | - | - | - |
| Max Sleeping Count | 9 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2015 | - | - | - |
Specs
Buy Now
More
Parent Company
Keystone RV Inc.
Year
2016
Make
Keystone
Display Name
Sprinter Wide Body 293FWBHS
Class
Fifth Wheel
Max Sleeping Count
9
Number of Slideouts
3
Introduction Year
2015
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this fifth wheel.
Tow-Ready Score
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.8
Final Tow-Ready Score
6.8
Living Space & Layout
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.5
Final Living Space & Layout
5.5
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Comfort & Features
5.8
Storage Space
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.0
Final Storage Space
6.0
Off-Grid & Campsites
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Off-Grid & Campsites
5.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2016 Keystone RV Sprinter 293fwbhs, ensure your vehicle's rated tow capacity exceeds its GVWR of 12700 lbs. With a dry weight of 10030 lbs and hitch weight of 1980 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Fifth Wheel has a dry weight of 10030 lbs and a GVWR of 12700 lbs, giving a payload capacity of 2670 lbs for gear, water, and supplies.
The approximate dimensions are length 420 in., width 100 in., and height 150 in. Always confirm clearances for garages, storage, and campsites.
The Sprinter 293fwbhs includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Sprinter 293fwbhs owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 12700 lbs and dry weight of 10030 lbs, the Sprinter 293fwbhs is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

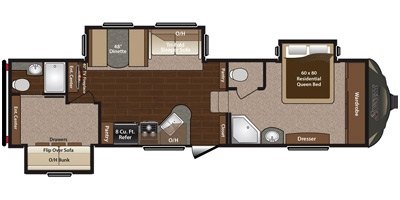

This floorplan sleeps up to 9 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Fifth Wheel.
The Sprinter 293fwbhs features body construction with sidewalls and 2 axle(s). Its GVWR of 12700 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
