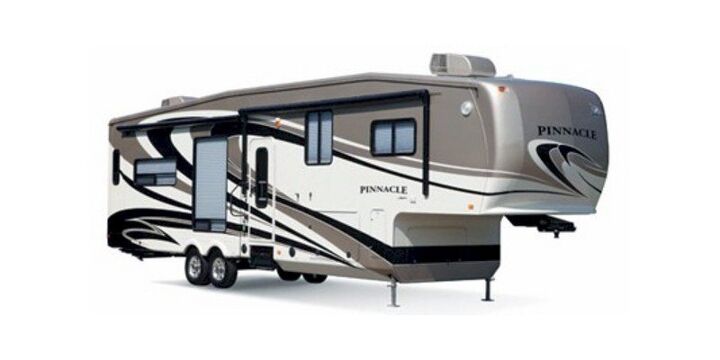

2011 Jayco Pinnacle 31-rlts Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2011 Jayco Pinnacle 31-rlts
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 14950 lbs | - | - | - |
| Dry Weight | 10820 lbs | - | - | - |
| Hitch Weight | 2230 lbs | - | - | - |
| Payload Capacity | 4130 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 417 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 155 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 107.5 in | - | - | - |
Specs
Buy Now
More
GVWR
14950 lbs
Dry Weight
10820 lbs
Hitch Weight
2230 lbs
Payload Capacity
4130 lbs
Length
417 in
Width
96 in
Exterior Height
155 in
Interior Height
107.5 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 80 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
80
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 87 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 89 gal | - | - | - |
| Black Water Tank Capacity | 52 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
87 gal
Gray Water Tank Capacity
89 gal
Black Water Tank Capacity
52 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Tire Brand | Goodyear® | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Rear Tire | 16 Inch Goodyear® Tires Full Spec | - | - | - |
Specs
Buy Now
More
Tire Brand
Goodyear®
Rear Brake Type
Electric Drum
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Wheel Diameter
16
Wheels Composition
Aluminum
Rear Tire
16 Inch Goodyear® Tires Full Spec
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 12 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
12 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Sofa Material | Cloth | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Living Area Location | Rear | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Accordion | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Number Of King Size Beds | 1 | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
Specs
Buy Now
More
Sofa Material
Cloth
Master Bedroom Flooring Type
Carpet
Master Bedroom Shades / Curtains
Yes
Living Area Location
Rear
Number Of Bathrooms
1
Master Bedroom Door Style
Accordion
Number Of Sofas
1
Master Bedroom Mirror Doors
Yes
Number Of King Size Beds
1
Full Size Master Bedroom Closet
Yes
Master Bedroom Location
Front
Number Of Recliner / Rockers
2
Number Of Convertible / Sofa Beds
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen Table Configuration | Chairs | - | - | - |
| Oven Depth | 21 / 533.4 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
Specs
Buy Now
More
Kitchen Table Configuration
Chairs
Oven Depth
21 / 533.4 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 18 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
18 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wallpaper | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Screened Room | No | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Metallic | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Wallpaper
Yes
Cable Prewiring
Yes
Power Retractable Awning
Yes
Sliding Glass Door
No
Air Conditioning Prewiring
Yes
Water Heater Tank Bypass
Yes
Heat Prewiring
Yes
Refrigerator
Standard
TV Antenna Prewiring
Yes
Bunkhouse
No
Overhead Fan
Yes
Screened Room
No
Washer / Dryer Prewiring
Yes
Power Retractable Slideout
Yes
Surround Sound
Yes
Battery Power Converter
Yes
Metallic
No
Interior Wood Finish
Yes
Satellite Prewiring
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Number Of Televisions
1
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Leather | - | - | - |
Specs
Buy Now
More
Material
Leather
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Jayco | - | - | - |
| Year | 2011 | - | - | - |
| Make | Jayco | - | - | - |
| Display Name | Pinnacle 31 RLTS | - | - | - |
| Class | Fifth Wheel | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2011 | - | - | - |
Specs
Buy Now
More
Parent Company
Jayco
Year
2011
Make
Jayco
Display Name
Pinnacle 31 RLTS
Class
Fifth Wheel
Max Sleeping Count
4
Number of Slideouts
3
Introduction Year
2011
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this fifth wheel.
Tow-Ready Score
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.5
Final Tow-Ready Score
5.5
Living Space & Layout
7.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.3
Final Living Space & Layout
7.3
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Comfort & Features
5.8
Storage Space
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.5
Final Storage Space
6.5
Off-Grid & Campsites
7.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.8
Final Off-Grid & Campsites
7.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2011 Jayco Pinnacle 31-rlts, ensure your vehicle's rated tow capacity exceeds its GVWR of 14950 lbs. With a dry weight of 10820 lbs and hitch weight of 2230 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Fifth Wheel has a dry weight of 10820 lbs and a GVWR of 14950 lbs, giving a payload capacity of 4130 lbs for gear, water, and supplies.
The approximate dimensions are length 417 in., width 96 in., and height 155 in. Always confirm clearances for garages, storage, and campsites.
The Pinnacle 31-rlts includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Pinnacle 31-rlts owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 14950 lbs and dry weight of 10820 lbs, the Pinnacle 31-rlts is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

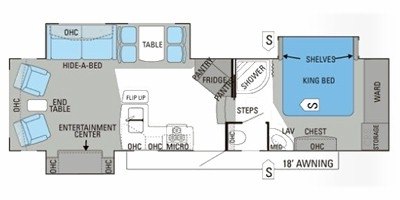

This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Fifth Wheel.
The Pinnacle 31-rlts features body construction with sidewalls and 2 axle(s). Its GVWR of 14950 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
