Pick a Wagoneer Floorplan — Get Specs & Tow Ratings
Crafted with a resilient aluminum frame, Wagoneer travel trailers are engineered for durability while maintaining a sleek profile. With 22 models produced between 2010 and 2013, these trailers merge functionality with style, offering spacious interiors and thoughtful layouts to enhance your adventures on the open road.
Wagoneer Travel Trailer Floorplans
| Plan | Model | Years | Sleeps | Length | GVWR | |
|---|---|---|---|---|---|---|
|
|
140w | 4 | 15' 10" | 3,850 | |
|
|

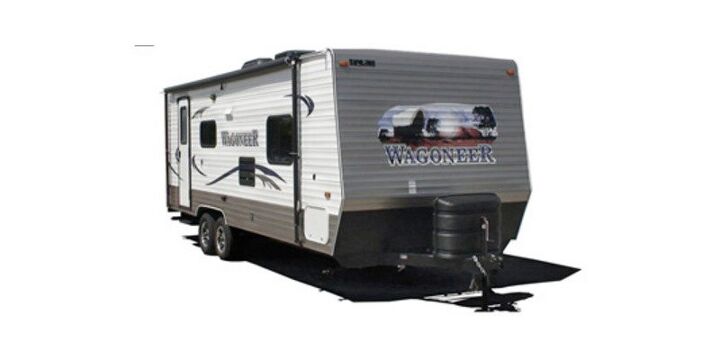

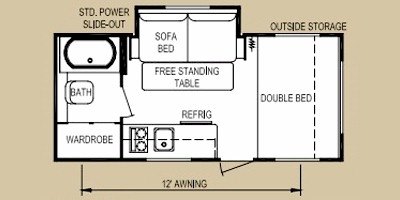

170w | 4 | 18' 4" | 3,850 | |
|
|
183w | 3 | 20' 4" | 3,850 | |
|
|
186w | 5 | 20' 6" | 3,850 | |
|
|

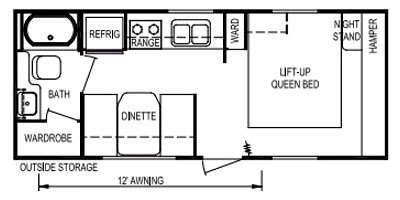

197 | 4 | 24' 7" | 5,600 | |
|
|

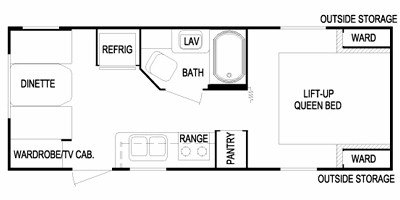

2040 | 4 | 24' 9" | 6,200 | |
|
|
205 | 4 | 25' 5" | 5,600 | |
|
|
216w | 7 | 24' 0" | 5,600 | |
|
|
2240 | 4 | 24' 11" | 6,200 | |
|
|
225 | 4 | 25' 7" | 6,200 | |
|
|
231 | 6 | 28' 7" | 6,200 | |
|
|

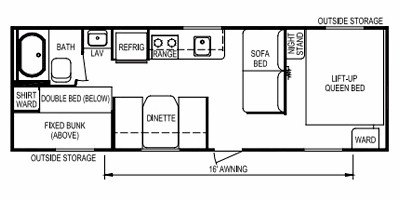

237 | 9 | 28' 1" | 6,200 | |
|
|

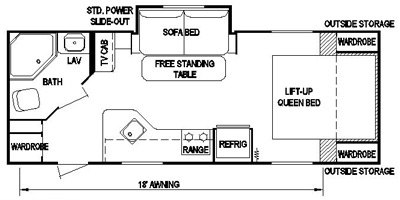

239w | 4 | 25' 11" | 6,200 | |
|
|
241 | 6 | 28' 1" | 6,200 | |
|
|

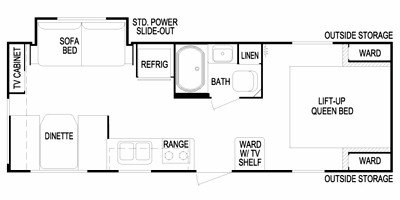

2440 | 6 | 27' 5" | 6,200 | |
|
|
252 | 9 | 28' 7" | 6,200 | |
|
|

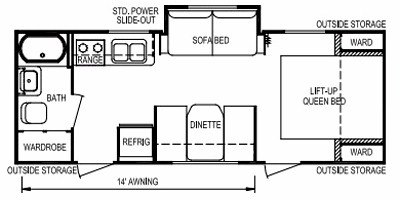

254 | 6 | 26' 9" | 6,200 | |
|
|

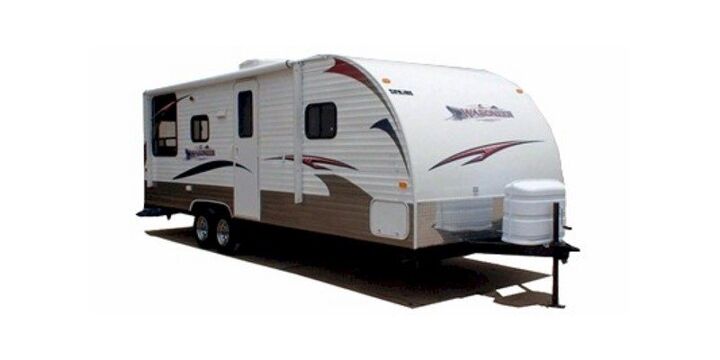

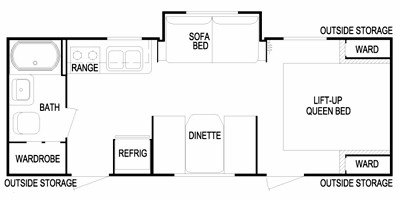

2540 | 6 | 26' 1" | 6,200 | |
|
|
264w | 9 | 28' 9" | 7,750 | |
|
|
269 | 6 | 29' 9" | 7,750 | |
|
|
274 | 9 | 31' 4" | 7,750 | |
|
|
2740 | 9 | 31' 4" | 7,750 |
