Browse Sedona Fifth Wheel & Travel Trailer Floorplans — Compare Specs & Tow Ratings
2013 – 2016
Sedona RVs blend comfort and adventure, making them an excellent choice for families seeking memorable road trips. With a diverse lineup of travel trailers and fifth wheels, these models are designed to accommodate various lifestyles, offering spacious interiors and practical features for seamless journeys into the great outdoors.
Filter
Sedona Fifth Wheel Floorplans
| Plan | Model | Years | Sleeps | Length | GVWR | |
|---|---|---|---|---|---|---|
|
|
30fikt | 6 | 34' 11" | 14,270 | |
|
|
32fbht | 6 | 36' 0" | 14,020 | |
|
|
32ftok | 6 | 36' 8" | 14,080 | |
|
|
33fsbi | 4 | 36' 8" | 14,310 | |
|
|
36flrb | 6 | 42' 6" | — | |
|
|
37rlmb | 9 | — | — | |
|
|
Advanced-profile-30frlw | 4 | 34' 1" | 14,250 | |
|
|
Advanced-profile-32frbw | 4 | 36' 2" | 14,030 | |
|
|
Advanced-profile-32frkt | 4 | 36' 8" | 13,960 | |
|
|
Advanced-profile-33fret | 4 | 36' 8" | 14,080 | |
|
|
Advanced-profile-33frlq | 4 | 37' 7" | 14,210 | |
|
|
Advanced-profile-34frsi | 4 | 36' 8" | 14,310 | |
|
|
Advanced-profile-36fbqs | 4 | 40' 0" | 14,730 | |
|
|
Advanced-profile-36flrq | 6 | 40' 0" | — | |
|
|
Advanced-profile-37rbds | 10 | 41' 0" | 14,050 | |
|
|
Slt-series-26frkw | 6 | 29' 1" | 9,900 | |
|
|
Slt-series-27fret | 4 | 31' 1" | 10,790 | |
|
|
Slt-series-27frld | 6 | 29' 11" | 9,900 | |
|
|
Slt-series-28fbhb | 8 | 31' 6" | 9,900 | |
|
|
Slt-series-31fbhs | 9 | 35' 7" | 12,140 | |
|
|
Slt-series-32frtg | 9 | 37' 3" | 11,960 | |
|
|
Sport-series-25frlw | 6 | 29' 10" | 9,900 | |
|
|
Sport-series-26frkw | 6 | 29' 1" | 9,900 | |
|
|

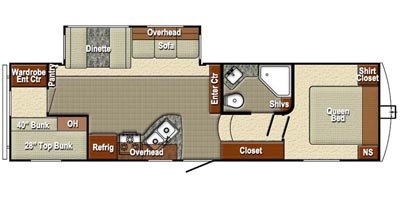

Sport-series-28fbhb | 8 | 31' 6" | 9,900 | |
|
|
Xlt-27frel | 6 | 29' 11" | 9,900 | |
|
|
Xlt-27fret | 4 | 31' 1" | 10,790 | |
|
|
Xlt-30fses | 4 | 33' 11" | 12,240 | |
|
|

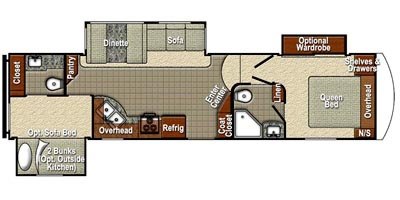

Xlt-31fbhs | 9 | 35' 7" | 12,140 | |
|
|
Xlt-32frtg | 9 | 37' 3" | 11,960 |
Sedona Travel Trailer Floorplans
| Plan | Model | Years | Sleeps | Length | GVWR | |
|---|---|---|---|---|---|---|
|
|
265bhs | 9 | 29' 11" | 9,580 | |
|
|
278dds | 10 | 31' 10" | 8,070 | |
|
|
288rls | 6 | 32' 3" | 9,630 | |
|
|
301tbs | 10 | 33' 7" | 11,356 | |
|
|
|
302rks | 6 | 34' 8" | 11,420 | |
|
|
321tbs | 9 | 35' 8" | 11,250 | |
|
|
325bik | 7 | 37' 11" | — | |
|
|
32tbht | 9 | 37' 0" | 11,180 | |
|
|
335ret | 6 | 34' 8" | — | |
|
|
34trlw | 4 | 37' 7" | 13,420 | |
|
|
Luxury-265bhs | 9 | 29' 11" | 9,580 | |
|
|

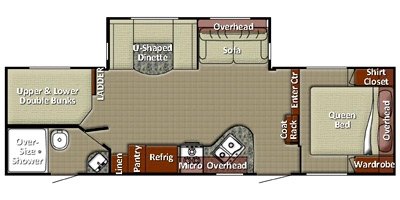

Luxury-278dds | 10 | 31' 10" | 8,070 | |
|
|
Luxury-288rls | 6 | 32' 3" | 9,630 | |
|
|
Luxury-301rks | 9 | 33' 7" | 11,356 | |
|
|
Luxury-301tb | 9 | 33' 7" | 11,356 | |
|
|
Luxury-301tbs | 12 | 33' 7" | 11,356 | |
|
|
Luxury-302rks | 6 | 34' 8" | 11,420 | |
|
|
Luxury-321tbr | 9 | 35' 8" | 11,250 | |
|
|
Luxury-321tbs | 9 | 35' 8" | 11,250 | |
|
|

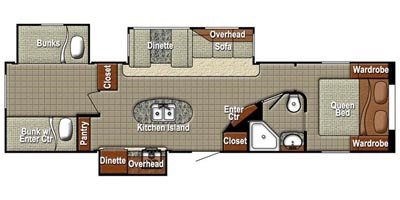

Luxury-32tbht | 9 | 37' 0" | 11,180 | |
|
|
Luxury-34trlw | 4 | 37' 7" | 13,420 |
