Pick a Surveyor Floorplan — Get Specs & Tow Ratings
2008 – 2018
Surveyor carved a niche in the RV market with its versatile lineup of travel trailers and fifth wheels, designed for both adventure seekers and families. From lightweight models perfect for spontaneous getaways to spacious options equipped with modern amenities, Surveyor catered to a diverse range of outdoor enthusiasts throughout its active years.
Filter
Surveyor Fifth Wheel Floorplans
| Plan | Model | Years | Sleeps | Length | GVWR | |
|---|---|---|---|---|---|---|
|
|
274bhs | 8 | 30' 8" | — | |
|
|
275bhss | 10 | 32' 0" | — | |
|
|
278rlds | 4 | 30' 4" | — | |
|
|
292rets | 4 | 32' 10" | — | |
|
|
293rlts | 4 | 32' 9" | — | |
|
|
294rlts | 4 | 32' 9" | — | |
|
|
299rlok | 4 | 35' 2" | — | |
|
|

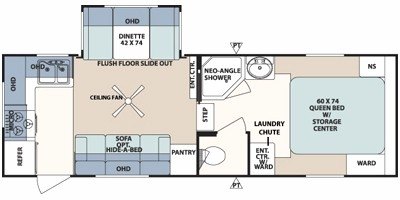

Svf-241rk | 6 | 26' 7" | 7,489 | |
|
|

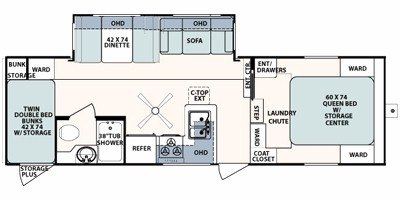

Svf-260bh | 10 | 29' 1" | 9,444 | |
|
|

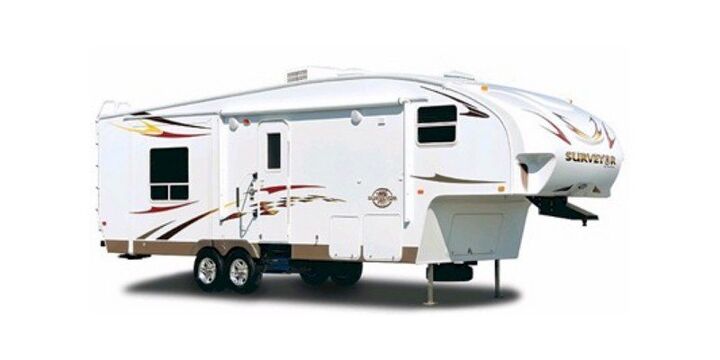

Svf-273rl | 6 | 29' 3" | 9,447 | |
|
|

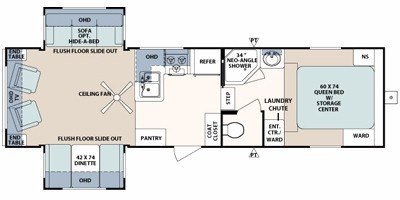

Svf-285rl | 6 | 31' 11" | 9,462 | |
|
|

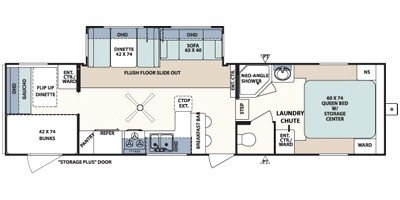

Svf-306bh | 7 | 34' 2" | 9,657 | |
|
|
Svf276rls | 4 | 30' 4" | — | |
|
|
Svf278rlds | 4 | 30' 4" | — | |
|
|
Svf292 | 4 | 32' 10" | — | |
|
|
Svf292rkds | 4 | 32' 10" | — | |
|
|
Svf293 | 4 | 32' 10" | — | |
|
|
Svf293rlts | 4 | 32' 10" | — | |
|
|
Svf320bhts | 9 | 35' 8" | — | |
|
|
Svf324 | 9 | 35' 8" | — |
Surveyor Travel Trailer Floorplans
| Plan | Model | Years | Sleeps | Length | GVWR | |
|---|---|---|---|---|---|---|
|
|
191t | 6 | 20' 4" | — | |
|
|
192t | 8 | 21' 11" | — | |
|
|
201rbs | 4 | 24' 5" | — | |
|
|
220rbs | 4 | 24' 11" | — | |
|
|
224t | 10 | 24' 7" | — | |
|
|
226rbds | 4 | 25' 10" | — | |
|
|
243rbs | 4 | 27' 8" | — | |
|
|
245bhs | 8 | 28' 3" | — | |
|
|
247bhds | 8 | 29' 4" | — | |
|
|
251rks | 6 | 29' 6" | — | |
|
|
265rlds | 6 | 31' 3" | — | |
|
|
|
266rlds | 6 | 31' 3" | — | |
|
|

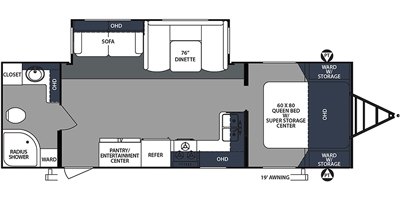

267rbss | 6 | 30' 11" | — | |
|
|
287bhss | 10 | 32' 10" | — | |
|
|
321bhts | 10 | 36' 5" | — | |
|
|
32krets | 4 | 36' 5" | — | |
|
|
33krets | 4 | 36' 5" | — | |
|
|
33krlok | 4 | 36' 11" | — | |
|
|

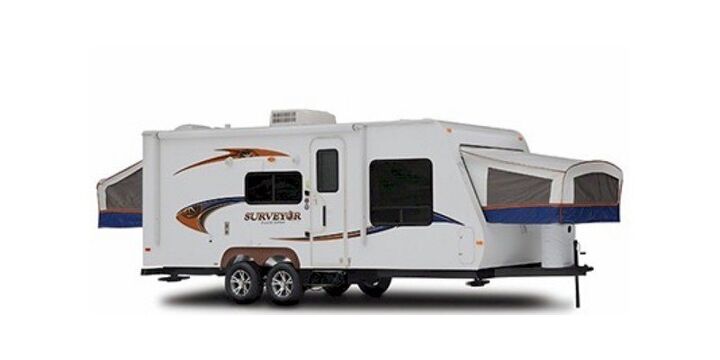

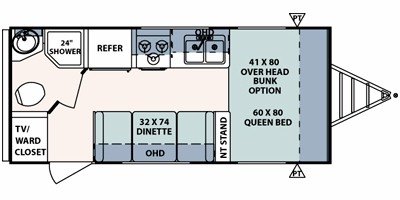

Sp-186 | 5 | 20' 2" | 5,235 | |
|
|

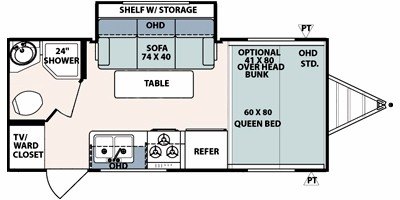

Sp-189 | 5 | 20' 6" | 5,302 | |
|
|

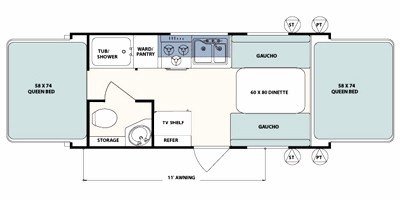

Sp-190t | 6 | 19' 6" | — | |
|
|

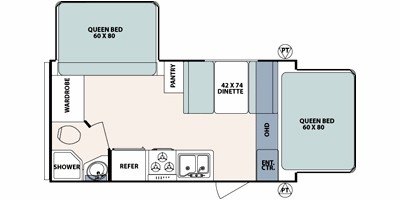

Sp-191t | 6 | 20' 4" | — | |
|
|

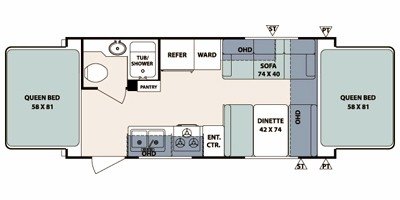

Sp-192t | 8 | 25' 7" | — | |
|
|
Sp-220 | 4 | 24' 8" | — | |
|
|

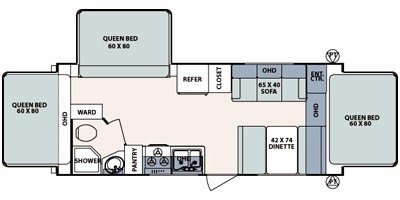

Sp-224t | 10 | 28' 3" | — | |
|
|

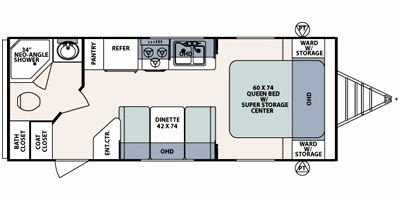

Sp-230 | 4 | 25' 7" | — | |
|
|

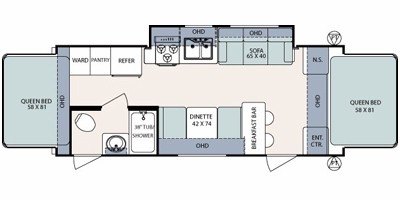

Sp-234t | 8 | 27' 9" | — | |
|
|

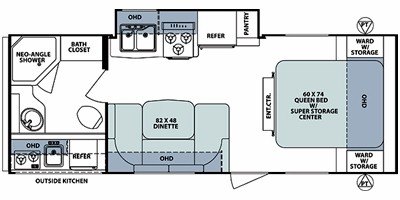

Sp-240 | 4 | 26' 6" | — | |
|
|

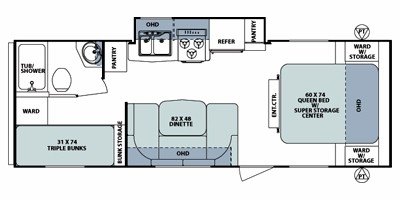

Sp-260 | 7 | 28' 0" | — | |
|
|

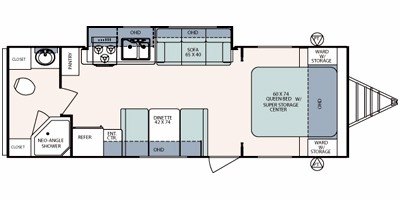

Sp-275 | 6 | 28' 9" | 7,418 | |
|
|
Sp-280 | 9 | 30' 7" | — | |
|
|

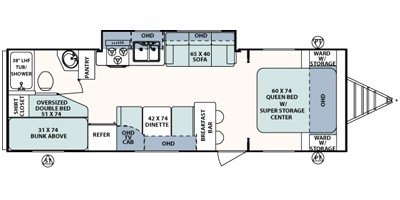

Sp-280bh | 9 | 30' 7" | 7,415 | |
|
|

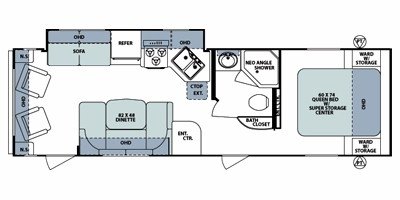

Sp-292 | 6 | 32' 5" | — | |
|
|

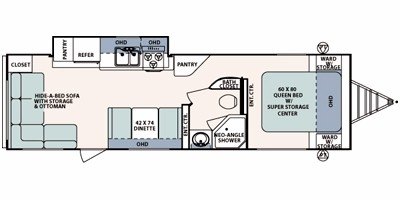

Sp-293 | 6 | 33' 0" | 7,494 | |
|
|

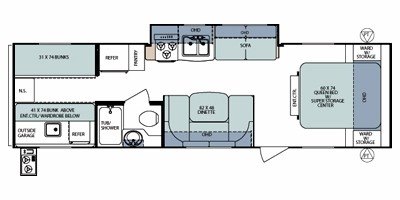

Sp-295 | 9 | 33' 2" | — | |
|
|
Sport-186 | 5 | 19' 6" | 4,982 | |
|
|

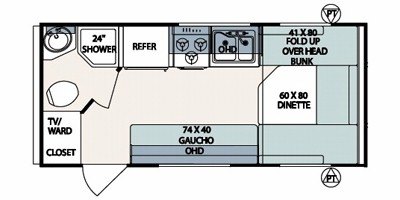

Sport-187 | 4 | 19' 6" | 4,972 | |
|
|

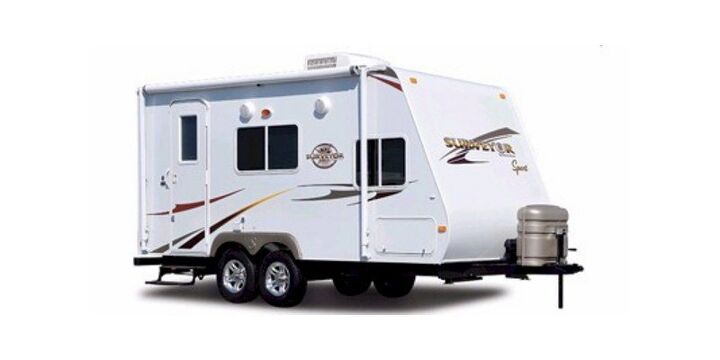

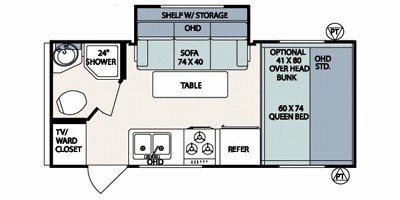

Sport-189 | 5 | 20' 6" | 5,058 | |
|
|

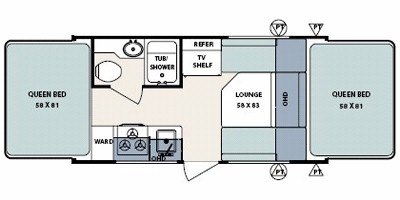

Sv-180t | 6 | 21' 6" | 3,721 | |
|
|

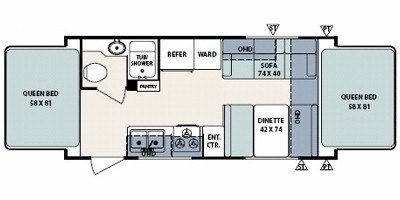

Sv-192t | 8 | 24' 9" | 5,138 | |
|
|

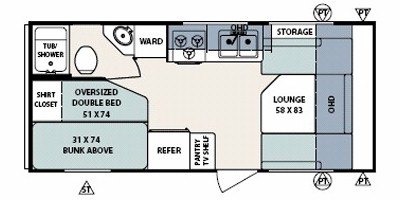

Sv-210 | 5 | 22' 6" | 4,911 | |
|
|

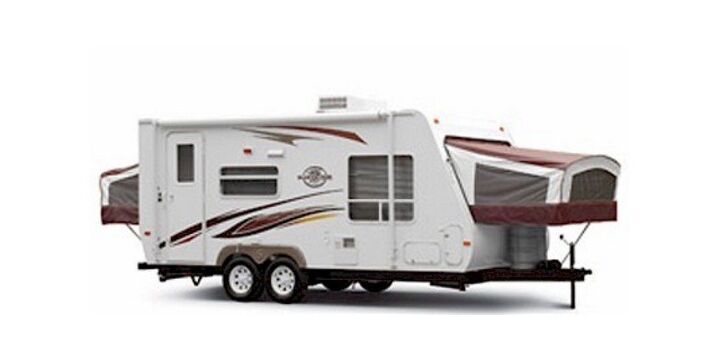

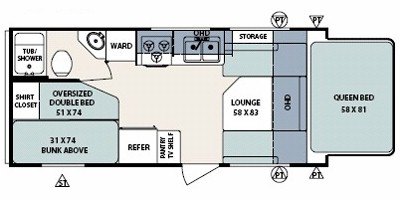

Sv-210t | 7 | 22' 6" | 5,287 | |
|
|

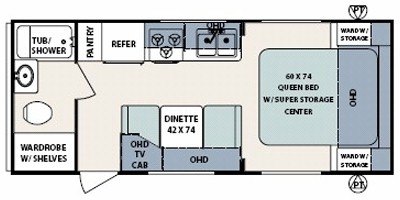

Sv-230 | 4 | 23' 11" | 4,805 | |
|
|

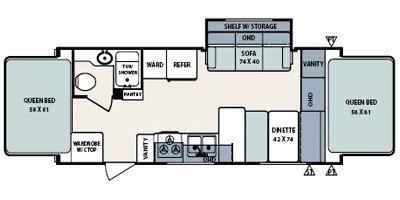

Sv-233t | 8 | 27' 9" | 5,186 | |
|
|

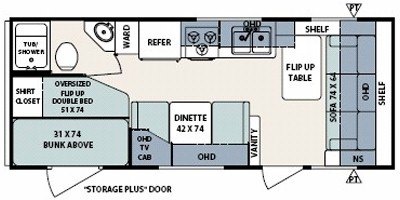

Sv-234 | 7 | 24' 5" | 4,991 | |
|
|
Sv-234t | 8 | 27' 9" | 5,410 | |
|
|

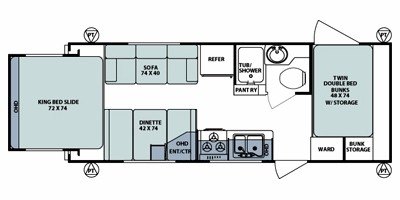

Sv-235 | 10 | 29' 8" | — | |
|
|

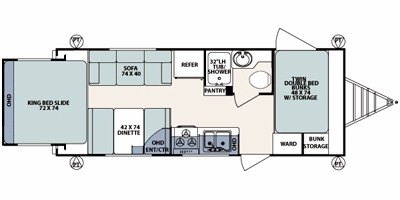

Sv-235rks | 10 | 29' 8" | 7,003 | |
|
|

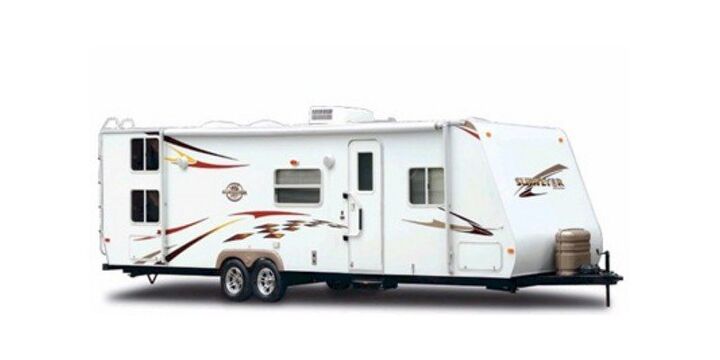

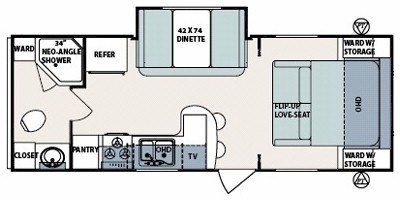

Sv-249 | 4 | 26' 6" | — | |
|
|

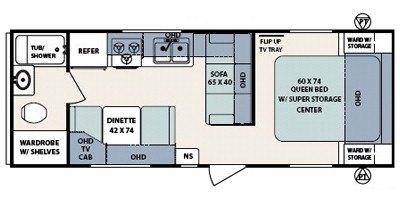

Sv-250 | 6 | 26' 6" | 5,000 | |
|
|

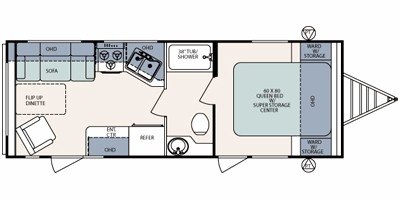

Sv-251 | 4 | 27' 1" | 5,450 | |
|
|

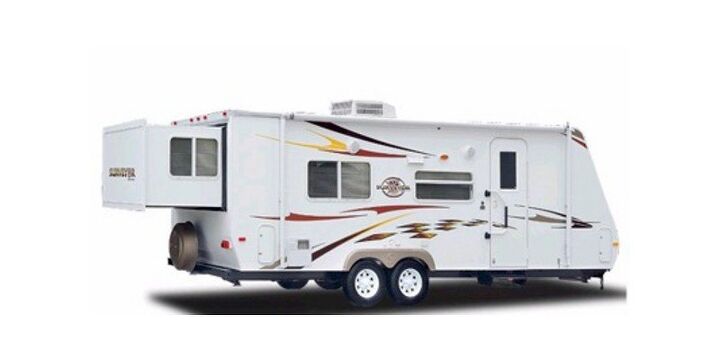

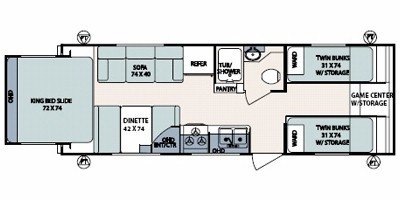

Sv-255rks | 10 | 32' 3" | 6,928 | |
|
|

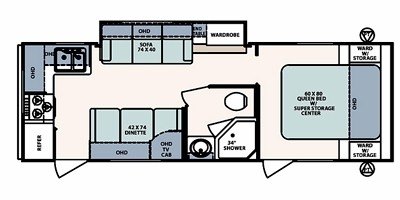

Sv-264 | 6 | 29' 0" | 7,481 | |
|
|

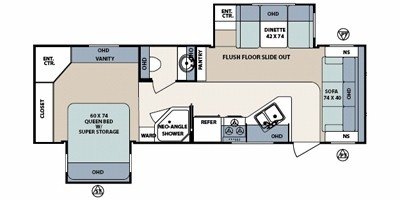

Sv-282 | 6 | 30' 8" | 8,922 | |
|
|

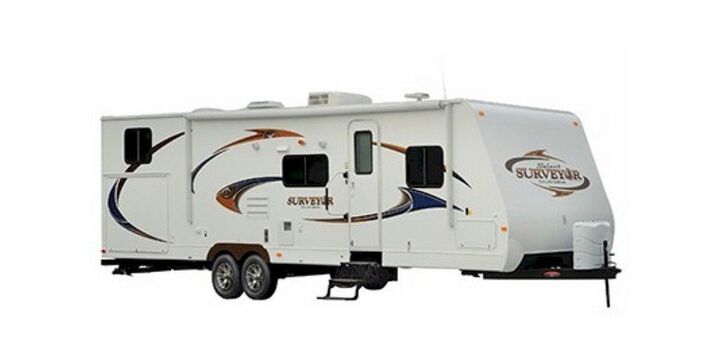

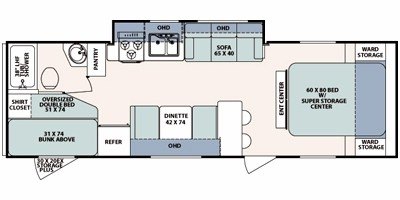

Sv-291 | 9 | 31' 0" | 7,485 | |
|
|

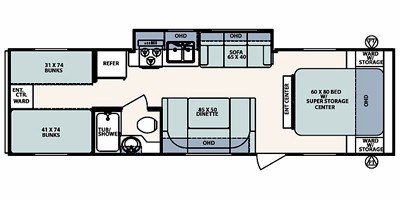

Sv-294 | 10 | 33' 0" | 7,547 | |
|
|

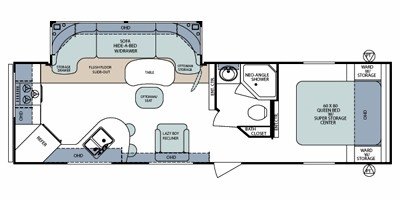

Sv-300 | 9 | 33' 8" | 9,260 | |
|
|
Sv-301 | 6 | 35' 7" | 9,533 | |
|
|

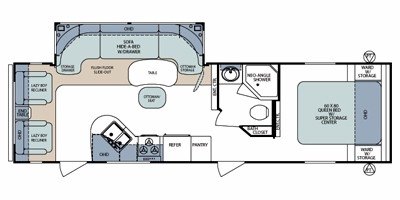

Sv-302 | 6 | 34' 2" | 9,309 | |
|
|

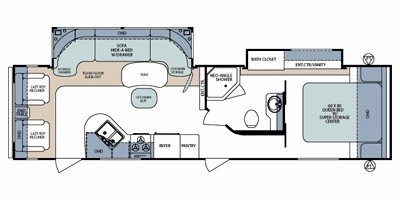

Sv-303 | 9 | 36' 0" | 9,260 | |
|
|

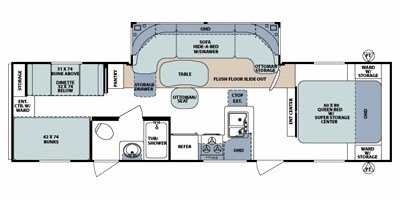

Sv-304 | 10 | 34' 3" | 9,377 | |
|
|

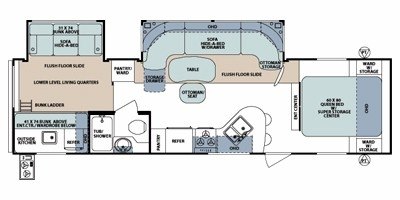

Sv-305 | 11 | 35' 7" | — |
