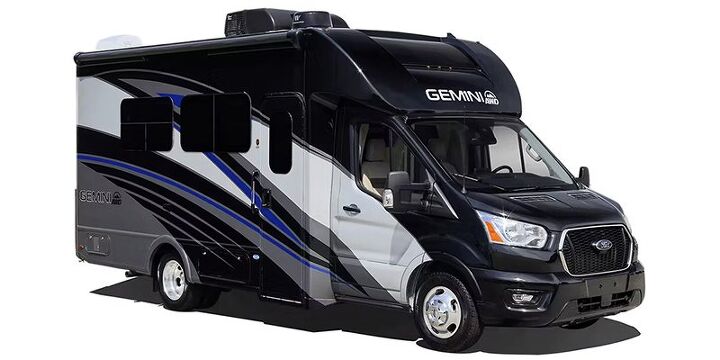

2023 Thor Motor Coach Gemini AWD 23te Specs
1
Can Your Vehicle Tow This?
Enter your vehicle to check manufacturer-rated limits
Loading your garage...
2
Get Your Real Numbers
Tow rating is one limit — payload is what overloads first
The full calculator factors in:
Tongue weight vs payload
Water tanks (50 gal = 417 lbs)
Propane (40 lbs full)
Passengers in truck
Gear, bikes, coolers, tools
Cargo weight distribution
Your truck's payload limit carries tongue weight, passengers, and everything in the bed — that's the number that overloads first. The calculator checks both tow and payload with real gear weights.
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 11000 lbs | - | - | - |
| Length | 283 in | - | ||
| Width | 90 in | - | ||
| Exterior Height | 132 in | - | ||
| Interior Height | 80 in | - | ||
| Towing Capacity | 5000 / 2268 lbs | - | - | - |
Specs
Buy Now
More
GVWR
11000 lbs
Length
283 in
Width
90 in
Exterior Height
132 in
Interior Height
80 in
Towing Capacity
5000 / 2268 lbs
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | ||
| Battery Type | 12V Lead-Acid | Top 5 | ||
| Solar Pre-Wired | Optional | - | ||
| Inverter | Optional | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | ||
| Number Of Gray Water Holding Tanks | 1 | - | ||
| Number Of Black Water Holding Tanks | 1 | - | ||
| Fresh Water Tank Capacity | 31 gal | - | ||
| Gray Water Tank Capacity | 37 gal | - | ||
| Black Water Tank Capacity | 19 gal | - | ||
| Number Of Propane Tanks | 1 | - | ||
| Propane Tank Capacity | 40 lbs | - | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
31 gal
Gray Water Tank Capacity
37 gal
Black Water Tank Capacity
19 gal
Number Of Propane Tanks
1
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Brake Type | Hydraulic Disc | - | - | - |
| Front Tire | 195/75R 16C Full Spec | - | - | - |
| Front Tire Aspect Ratio | 75 | - | - | - |
| Front Tire Speed Rating | C | - | - | - |
| Front Tire Width | 195 | - | - | - |
| Front Wheel Diameter | 16 | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
| Rear Tire | 195/75R 16C Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
| Rear Tire Width | 195 | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Wheelbase | 156 / 3962.4 in | - | - | - |
| Wheels Composition | Steel | - | - | - |
Specs
Buy Now
More
Front Brake Type
Hydraulic Disc
Front Tire
195/75R 16C Full Spec
Front Tire Aspect Ratio
75
Front Tire Speed Rating
C
Front Tire Width
195
Front Wheel Diameter
16
Rear Brake Type
Hydraulic Disc
Rear Tire
195/75R 16C Full Spec
Rear Tire Aspect Ratio
75
Rear Tire Speed Rating
C
Rear Tire Width
195
Rear Wheel Diameter
16
Wheelbase
156 / 3962.4 in
Wheels Composition
Steel
Tires & Wheels Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | - | ||
| Heater Type | Automatic | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Heater Type
Automatic
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Center | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Number Of Sofas | 1 | - | - | |
| Reclining Sofa | No | - | ||
| Sofa Material | Vinyl | - | - | - |
Specs
Buy Now
More
Living Area Location
Center
Number Of Convertible / Sofa Beds
1
Number Of Sofas
1
Reclining Sofa
No
Sofa Material
Vinyl
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Kitchen Location | Center | - | - | - |
| Kitchen Table Configuration | Pedestal Table | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Location
Center
Kitchen Table Configuration
Pedestal Table
Number Of Oven Burners
2
Refrigerator Power Mode
Electric / Propane
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Bathroom Location | Rear | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Toilet Type | Plastic | Top 5 |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Bathroom Location
Rear
Number Of Bathrooms
1
Toilet Type
Plastic
Bathroom Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 14 ft/m | - | ||
| Number of Awnings | 1 | - | ||
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | ||
| Door Type | Curtain | - | ||
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
14 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
1
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | ||
| Battery Power Converter | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Heated | No | - | ||
| Interior Wood Finish | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Overhead Fan | No | - | - | |
| Phone Prewiring | No | - | - | - |
| Power Adjustable Seat | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Satellite | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Supercharged | No | - | - | - |
| Surround Sound | No | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Turbocharged | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Battery Power Converter
Yes
Bunkhouse
No
Cable Prewiring
Yes
Heat Prewiring
Yes
Recommended
FOGATTI RV Furnace 35,000 BTU High-Capacity - Quiet Thermostat Controlled RV Heater for Motorhome, Camper & Travel Trailer
Interior Wood Finish
Yes
Overdrive
Yes
Overhead Fan
No
Phone Prewiring
No
Power Adjustable Seat
No
Power Retractable Awning
Yes
Power Retractable Slideout
Yes
Reclining Seats
Yes
Refrigerator
Standard
Satellite
Yes
Satellite Prewiring
Yes
Screened Room
No
Seat Armrests
Yes
Sliding Glass Door
No
Supercharged
No
Surround Sound
No
Swivel Seats
Yes
Turbocharged
Yes
TV Antenna Prewiring
Yes
Wallpaper
Yes
Washer / Dryer Prewiring
No
Water Heater Tank Bypass
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Rows | 1 | - | - | - |
| Number Of Seats | 2 | - | - | - |
| Seat Material | Vinyl | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Seat Type | Bucket | - | - | - |
Specs
Buy Now
More
Number Of Rows
1
Number Of Seats
2
Seat Material
Vinyl
Seat Specifications
Standard
Seat Type
Bucket
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Storage Capacity | 21.3 / 136.9 / 603.1 cuft/gal/l | - | - | - |
Specs
Buy Now
More
Storage Capacity
21.3 / 136.9 / 603.1 cuft/gal/l
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Brand | Ford | - | - | - |
| Chassis Model | Transit | - | - | - |
Specs
Buy Now
More
Chassis Brand
Ford
Chassis Model
Transit
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Driveline Type | 4X2 | - | - | - |
| Number Of Speeds | 10 | - | - | - |
| Transmission Brand | SelectShift® | - | - | - |
| Transmission Type | Automatic | - | - | - |
Specs
Buy Now
More
Driveline Type
4X2
Number Of Speeds
10
Transmission Brand
SelectShift®
Transmission Type
Automatic
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Carburetion | Standard | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Cylinders | 6 | - | - | - |
| Engine Brand Name | EcoBoost® | - | - | - |
| Engine Type | V6 | - | - | - |
| Horsepower | 310 bhp | - | - | - |
| Horsepower RPM | 5000 | - | - | - |
| Torque | 542.3 Nm | - | - | - |
| Torque RPM | 2500 | - | - | - |
Specs
Buy Now
More
Carburetion
Standard
Carburetion Type
Fuel Injected
Cylinders
6
Engine Brand Name
EcoBoost®
Engine Type
V6
Horsepower
310 bhp
Horsepower RPM
5000
Torque
542.3 Nm
Torque RPM
2500
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | - | ||
| Speaker Location | Interior | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Speaker Location
Interior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 25 / 94.6 gal/l | - | - | |
| Fuel Type | Gas | - | - |
Specs
Buy Now
More
Fuel Capacity
25 / 94.6 gal/l
Fuel Type
Gas
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Thor Industries | - | - | - |
| Year | 2023 | - | - | - |
| Make | Thor Motor Coach | - | - | - |
| Display Name | Gemini AWD® 23TE | - | - | - |
| Class | Class C | - | - | - |
| Max Sleeping Count | 2 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2021 | - | - | - |
Specs
Buy Now
More
Parent Company
Thor Industries
Year
2023
Make
Thor Motor Coach
Display Name
Gemini AWD® 23TE
Class
Class C
Max Sleeping Count
2
Number of Slideouts
1
Introduction Year
2021
Essential Upgrades for the 2023 Thor Motor Coach Gemini AWD 23te
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class c.
Drivability & Handling
8.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+3.8
Final Drivability & Handling
8.8
Living Space & Layout
7.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+2.8
Final Living Space & Layout
7.8
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2023 Thor Motor Coach Gemini AWD 23te, ensure your vehicle's rated tow capacity exceeds its GVWR of 11000 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class C has a dry weight of lbs and a GVWR of 11000 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 283 in., width 90 in., and height 132 in. Always confirm clearances for garages, storage, and campsites.
The Gemini AWD 23te includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Gemini AWD 23te owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 11000 lbs and dry weight of lbs, the Gemini AWD 23te is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 2 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class C.
The Gemini AWD 23te features body construction with sidewalls and 1 axle(s). Its GVWR of 11000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
Leave the Noise Behind.
Reconnect Outdoors.
Our mission is to help people make well-informed RV buying decisions, so they can leave the noise and screens behind, reconnect with family, and create unforgettable memories in the great outdoors.
Free tools. No sales pressure. Just better decisions.
