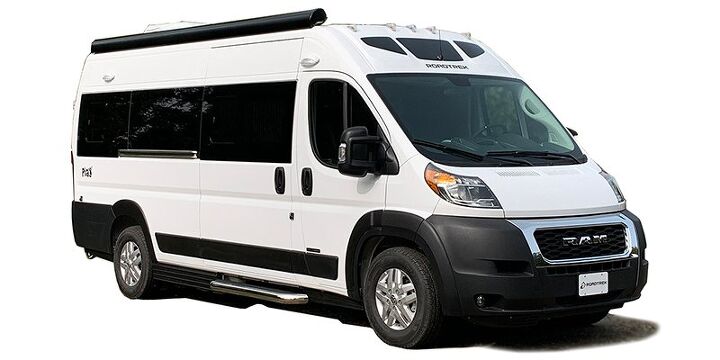

2023 Roadtrek Play Base Specs
1
Can Your Vehicle Tow This?
Enter your vehicle to check manufacturer-rated limits
Loading your garage...
2
Get Your Real Numbers
Tow rating is one limit — payload is what overloads first
The full calculator factors in:
Tongue weight vs payload
Water tanks (50 gal = 417 lbs)
Propane (40 lbs full)
Passengers in truck
Gear, bikes, coolers, tools
Cargo weight distribution
Your truck's payload limit carries tongue weight, passengers, and everything in the bed — that's the number that overloads first. The calculator checks both tow and payload with real gear weights.
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 9350 lbs | - | - | - |
| Payload Capacity | 1950 lbs | - | - | |
| Length | 249 in | - | ||
| Width | 83 in | - | ||
| Exterior Height | 113 in | - | ||
| Interior Height | 74 in | - | ||
| Towing Capacity | 3500 / 1587.6 lbs | - | - | - |
Specs
Buy Now
More
GVWR
9350 lbs
Payload Capacity
1950 lbs
Length
249 in
Width
83 in
Exterior Height
113 in
Interior Height
74 in
Towing Capacity
3500 / 1587.6 lbs
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | ||
| Battery Type | 12V Lead-Acid | Top 5 | ||
| Solar Pre-Wired | Optional | - | ||
| Inverter | Optional | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | ||
| Number Of Gray Water Holding Tanks | 1 | - | ||
| Number Of Black Water Holding Tanks | 1 | - | ||
| Fresh Water Tank Capacity | 37 gal | - | ||
| Gray Water Tank Capacity | 14 gal | - | ||
| Black Water Tank Capacity | 8.5 gal | - | - | |
| Number Of Propane Tanks | 1 | - | ||
| Propane Tank Capacity | 22 lbs | - | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
37 gal
Gray Water Tank Capacity
14 gal
Black Water Tank Capacity
8.5 gal
Number Of Propane Tanks
1
Propane Tank Capacity
22 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Brake Type | Hydraulic Disc | - | - | - |
| Front Tire | LT225/75QR 16E BSW AS Full Spec | - | - | - |
| Front Tire Aspect Ratio | 75 | - | - | - |
| Front Tire Speed Rating | E | - | - | - |
| Front Tire Width | 225 | - | - | - |
| Front Wheel Diameter | 16 | - | - | - |
| Front Wheel Width | 6 in | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
| Rear Tire | LT225/75QR 16E BSW AS Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire Speed Rating | E | - | - | - |
| Rear Tire Width | 225 | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Wheel Width | 6 in | - | - | - |
| Spare Tire Location | Exterior Mounted | - | ||
| Wheelbase | 159 / 4038.6 in | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
Specs
Buy Now
More
Front Brake Type
Hydraulic Disc
Front Tire
LT225/75QR 16E BSW AS Full Spec
Front Tire Aspect Ratio
75
Front Tire Speed Rating
E
Front Tire Width
225
Front Wheel Diameter
16
Front Wheel Width
6 in
Rear Brake Type
Hydraulic Disc
Rear Tire
LT225/75QR 16E BSW AS Full Spec
Rear Tire Aspect Ratio
75
Rear Tire Speed Rating
E
Rear Tire Width
225
Rear Wheel Diameter
16
Rear Wheel Width
6 in
Spare Tire Location
Exterior Mounted
Wheelbase
159 / 4038.6 in
Wheels Composition
Aluminum
Tires & Wheels Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | - | ||
| Heater Type | Automatic | - | ||
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Rear | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Number Of Sofas | 2 | - | - | |
| Reclining Sofa | No | - | ||
| Sofa Material | Cloth | - | - | - |
Specs
Buy Now
More
Living Area Location
Rear
Number Of Convertible / Sofa Beds
1
Number Of Sofas
2
Reclining Sofa
No
Sofa Material
Cloth
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Kitchen Location | Center | - | - | - |
| Kitchen Table Configuration | Pedestal Table | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
| Refrigerator Power Mode | Electric | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Location
Center
Kitchen Table Configuration
Pedestal Table
Number Of Oven Burners
2
Refrigerator Power Mode
Electric
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Bathroom Location | Center | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Toilet Type | Plastic | Top 5 |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Number Of Bathrooms
1
Toilet Type
Plastic
Bathroom Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 13 ft/m | - | ||
| Number of Awnings | 1 | - | ||
| Number Of Axles | 1 | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | ||
| Door Type | Curtain | - |
Specs
Buy Now
More
Awning Length
13 ft/m
Number of Awnings
1
Number Of Axles
1
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | ||
| Battery Power Converter | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Heated | No | - | ||
| Interior Wood Finish | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Overhead Fan | Yes | - | - | |
| Phone Prewiring | No | - | - | - |
| Power Adjustable Seat | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Satellite | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Supercharged | No | - | - | - |
| Surround Sound | No | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Turbocharged | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Battery Power Converter
Yes
Bunkhouse
No
Cable Prewiring
Yes
Heat Prewiring
Yes
Recommended
FOGATTI RV Furnace 35,000 BTU High-Capacity - Quiet Thermostat Controlled RV Heater for Motorhome, Camper & Travel Trailer
Interior Wood Finish
Yes
Overdrive
Yes
Overhead Fan
Yes
Phone Prewiring
No
Power Adjustable Seat
No
Power Retractable Awning
Yes
Reclining Seats
Yes
Refrigerator
Standard
Satellite
Yes
Satellite Prewiring
Yes
Screened Room
No
Seat Armrests
Yes
Sliding Glass Door
No
Supercharged
No
Surround Sound
No
Swivel Seats
Yes
Turbocharged
No
TV Antenna Prewiring
Yes
Wallpaper
Yes
Washer / Dryer Prewiring
No
Water Heater Tank Bypass
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Rows | 1 | - | - | - |
| Number Of Seats | 2 | - | - | - |
| Seat Material | Cloth | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Seat Type | Bucket | - | - | - |
Specs
Buy Now
More
Number Of Rows
1
Number Of Seats
2
Seat Material
Cloth
Seat Specifications
Standard
Seat Type
Bucket
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Brand | ProMaster™ | - | - | - |
| Chassis Model | 3500 | - | - | - |
Specs
Buy Now
More
Chassis Brand
ProMaster™
Chassis Model
3500
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Driveline Type | 4X2 | - | - | - |
| Number Of Speeds | 9 | - | - | - |
| Transmission Type | Automatic | - | - | - |
Specs
Buy Now
More
Driveline Type
4X2
Number Of Speeds
9
Transmission Type
Automatic
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Carburetion | Standard | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Cylinders | 6 | - | - | - |
| Engine Brand Name | Pentastar™ VVT | - | - | - |
| Engine Type | V6 | - | - | - |
| Horsepower | 276 bhp | - | - | - |
| Horsepower RPM | 6400 | - | - | - |
| Torque | 339 Nm | - | - | - |
| Torque RPM | 4400 | - | - | - |
Specs
Buy Now
More
Carburetion
Standard
Carburetion Type
Fuel Injected
Cylinders
6
Engine Brand Name
Pentastar™ VVT
Engine Type
V6
Horsepower
276 bhp
Horsepower RPM
6400
Torque
339 Nm
Torque RPM
4400
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior | - | - |
Specs
Buy Now
More
Speaker Location
Interior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 24 / 91 gal/l | - | - | |
| Fuel Type | Gas | - | - |
Specs
Buy Now
More
Fuel Capacity
24 / 91 gal/l
Fuel Type
Gas
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Rapido Group | - | - | - |
| Year | 2023 | - | - | - |
| Make | Roadtrek | - | - | - |
| Display Name | Play Base | - | - | - |
| Class | Class B | - | - | - |
| Max Sleeping Count | 3 | - | - | - |
| Introduction Year | 2021 | - | - | - |
Specs
Buy Now
More
Parent Company
Rapido Group
Year
2023
Make
Roadtrek
Display Name
Play Base
Class
Class B
Max Sleeping Count
3
Introduction Year
2021
Essential Upgrades for the 2023 Roadtrek Play Base
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class b.
Drivability & Handling
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+2.0
Final Drivability & Handling
7.0
Living Space & Layout
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+0.5
Final Living Space & Layout
5.5
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+0.3
Final Comfort & Features
5.3
Storage Space
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+2.0
Final Storage Space
7.0
Off-Grid & Campsites
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+0.5
Final Off-Grid & Campsites
5.5
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2023 Roadtrek Play Base, ensure your vehicle's rated tow capacity exceeds its GVWR of 9350 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class B has a dry weight of lbs and a GVWR of 9350 lbs, giving a payload capacity of 1950 lbs for gear, water, and supplies.
The approximate dimensions are length 249 in., width 83 in., and height 113 in. Always confirm clearances for garages, storage, and campsites.
The Play Base includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Play Base owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 9350 lbs and dry weight of lbs, the Play Base is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 3 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class B.
The Play Base features body construction with sidewalls and 1 axle(s). Its GVWR of 9350 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
Leave the Noise Behind.
Reconnect Outdoors.
Our mission is to help people make well-informed RV buying decisions, so they can leave the noise and screens behind, reconnect with family, and create unforgettable memories in the great outdoors.
Free tools. No sales pressure. Just better decisions.
