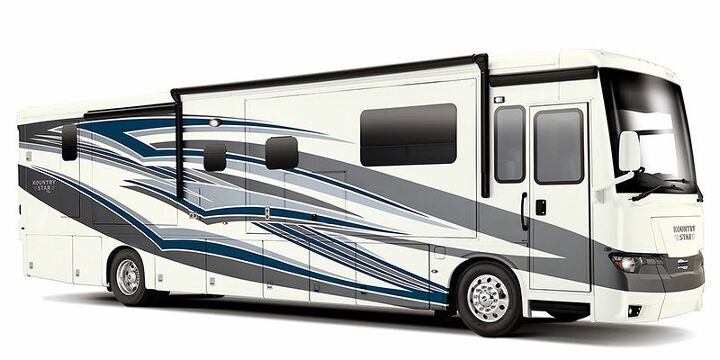

2022 Newmar Kountry Star 4002 Specs
Know Before You Drive
Key specs for safe motorhome driving
⚠️ Height Alert: Over 11' tall. Watch for low bridges and overhangs!
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
38,000 lbs
License
May require CDL
Type
Class A
License Requirement
May require CDL
Standard
Check State
CDL May Apply
Essential Upgrades for the 2022 Newmar Kountry Star 4002
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 38000 lbs | - | - | - |
| Dry Weight | 29500 lbs | - | - | - |
| Payload Capacity | 8500 lbs | Coil SumoSprings | - | - |
| Length | 490 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 101.5 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 83 in | - | - | - |
| Towing Capacity | 10000 / 4536 lbs | - | - | - |
| Exterior Height | 154 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
38000 lbs
Dry Weight
29500 lbs
Payload Capacity
8500 lbs
Length
490 in
Width
101.5 in
Interior Height
83 in
Towing Capacity
10000 / 4536 lbs
Exterior Height
154 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 105 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 65 gal | - | - | - |
| Black Water Tank Capacity | 45 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 135.7 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
105 gal
Gray Water Tank Capacity
65 gal
Black Water Tank Capacity
45 gal
Number Of Propane Tanks
1
Propane Tank Capacity
135.7 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheelbase | 276 / 7010.4 in | - | - | - |
| Front Tire Aspect Ratio | 80 | - | - | - |
| Rear Wheel Diameter | 22.5 | - | - | - |
| Rear Tire | Michelin® X Line Energy Z 275/80R 22.5 Full Spec | - | - | - |
| Front Wheel Diameter | 22.5 | - | - | - |
| Front Tire | Michelin® X Line Energy Z 275/80R 22.5 Full Spec | - | - | - |
| Tire Brand | Michelin® | - | - | - |
| Rear Tire Width | 275 | - | - | - |
| Rear Brake Type | Hydraulic Drum | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Front Tire Width | 275 | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Rear Wheel Width | 8.25 in | - | - | - |
| Rear Tire Aspect Ratio | 80 | - | - | - |
| Front Wheel Width | 8.25 in | - | - | - |
Specs
Buy Now
More
Wheelbase
276 / 7010.4 in
Front Tire Aspect Ratio
80
Rear Wheel Diameter
22.5
Rear Tire
Michelin® X Line Energy Z 275/80R 22.5 Full Spec
Front Wheel Diameter
22.5
Front Tire
Michelin® X Line Energy Z 275/80R 22.5 Full Spec
Tire Brand
Michelin®
Rear Tire Width
275
Rear Brake Type
Hydraulic Drum
Wheels Composition
Aluminum
Front Tire Width
275
Front Brake Type
Hydraulic Disc
Rear Wheel Width
8.25 in
Rear Tire Aspect Ratio
80
Front Wheel Width
8.25 in
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 10 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
10 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Sofa Material | Leather | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Convertible / Sofa Beds | 3 | - | - | - |
| Master Bedroom Flooring Type | Carpet / Vinyl | - | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Number Of Sofas | 2 | Tri-Fold Sofa | - | - |
| Number Of Bathrooms | 2 | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Number Of King Size Beds | 1 | - | - | - |
| Living Area Location | Front | - | - | - |
| Master Bedroom Location | Center | - | - | - |
Specs
Buy Now
More
Master Bedroom Shades / Curtains
Yes
Sofa Material
Leather
Reclining Sofa
No
Number Of Convertible / Sofa Beds
3
Master Bedroom Flooring Type
Carpet / Vinyl
Master Bedroom Mirror Doors
No
Number Of Sofas
2
Number Of Bathrooms
2
Full Size Master Bedroom Closet
Yes
Master Bedroom Door Style
Full Sliding Door
Number Of King Size Beds
1
Living Area Location
Front
Master Bedroom Location
Center
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Size | Full-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Size
Full-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric
Kitchen Location
Center
Number Of Oven Burners
3
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear / Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Toilet Type
Porcelain
Bathroom Location
Rear / Center
Bathroom Flooring Type
Vinyl
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 18 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
18 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
1
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Power Adjustable Seat | Yes | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Turbocharged | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Supercharged | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Screened Room | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Swivel Seats
Yes
Water Heater Tank Bypass
Yes
Power Retractable Awning
Yes
Sliding Glass Door
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Overhead Fan
Yes
Satellite Prewiring
Yes
Bunkhouse
No
Reclining Seats
Yes
Surround Sound
Yes
Washer / Dryer Prewiring
Yes
Power Adjustable Seat
Yes
Seat Armrests
Yes
Turbocharged
Yes
Overdrive
Yes
Refrigerator
Standard
Battery Power Converter
Yes
Interior Wood Finish
Yes
Power Retractable Slideout
Yes
Supercharged
No
Wallpaper
Yes
Phone Prewiring
No
Screened Room
No
Cable Prewiring
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Seats | 2 | - | - | - |
| Seat Type | Bucket | - | - | - |
| Number Of Rows | 1 | - | - | - |
| Seat Material | Leather | - | - | - |
| Seat Specifications | Standard | - | - | - |
Specs
Buy Now
More
Number Of Seats
2
Seat Type
Bucket
Number Of Rows
1
Seat Material
Leather
Seat Specifications
Standard
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Model | XC-Series | - | - | - |
| Chassis Brand | Freightliner | - | - | - |
Specs
Buy Now
More
Chassis Model
XC-Series
Chassis Brand
Freightliner
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Transmission Type | Automatic | - | - | - |
| Driveline Type | 4X2 | - | - | - |
| Transmission Brand | Allison | - | - | - |
| Number Of Speeds | 6 | - | - | - |
Specs
Buy Now
More
Transmission Type
Automatic
Driveline Type
4X2
Transmission Brand
Allison
Number Of Speeds
6
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Horsepower RPM | 2600 | - | - | - |
| Cylinders | 6 | - | - | - |
| Torque | 1085 Nm | - | - | - |
| Engine Type | I6 Diesel Pusher | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Torque RPM | 1800 | - | - | - |
| Carburetion | Standard | - | - | - |
| Horsepower | 360 bhp | - | - | - |
| Engine Brand Name | Cummins | - | - | - |
Specs
Buy Now
More
Horsepower RPM
2600
Cylinders
6
Torque
1085 Nm
Engine Type
I6 Diesel Pusher
Carburetion Type
Fuel Injected
Torque RPM
1800
Carburetion
Standard
Horsepower
360 bhp
Engine Brand Name
Cummins
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 2 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Television Brand Name | Samsung | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior
Number Of Televisions
2
Television Brand Name
Samsung
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 100 / 379 gal/l | 5Gal Gas Can | - | - |
| Fuel Type | Diesel | Fuel Treatment | - | - |
Specs
Buy Now
More
Fuel Capacity
100 / 379 gal/l
Fuel Type
Diesel
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Winnebago Industries | - | - | - |
| Year | 2022 | - | - | - |
| Make | Newmar | - | - | - |
| Display Name | Kountry Star 4002 | - | - | - |
| Class | Class A | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2020 | - | - | - |
Specs
Buy Now
More
Parent Company
Winnebago Industries
Year
2022
Make
Newmar
Display Name
Kountry Star 4002
Class
Class A
Max Sleeping Count
8
Number of Slideouts
3
Introduction Year
2020
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class a.
Drivability & Handling
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.8
Final Drivability & Handling
5.8
Living Space & Layout
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.8
Final Living Space & Layout
6.8
Comfort & Features
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.3
Final Comfort & Features
6.3
Storage Space
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.5
Final Storage Space
6.5
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2022 Newmar Kountry Star 4002, ensure your vehicle's rated tow capacity exceeds its GVWR of 38000 lbs. With a dry weight of 29500 lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class A has a dry weight of 29500 lbs and a GVWR of 38000 lbs, giving a payload capacity of 8500 lbs for gear, water, and supplies.
The approximate dimensions are length 490 in., width 101 in., and height 154 in. Always confirm clearances for garages, storage, and campsites.
The Kountry Star 4002 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Kountry Star 4002 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 38000 lbs and dry weight of 29500 lbs, the Kountry Star 4002 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class A.
The Kountry Star 4002 features body construction with sidewalls and 1 axle(s). Its GVWR of 38000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
