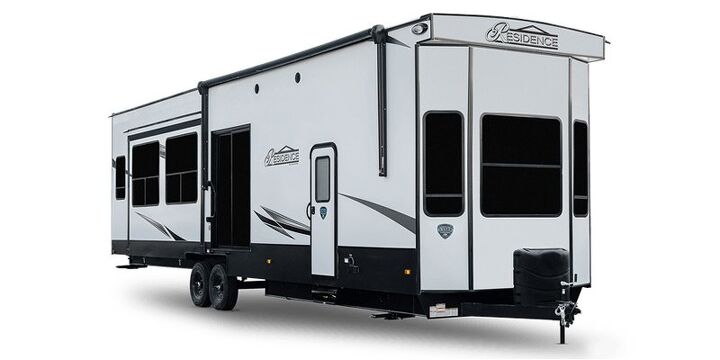

2022 Keystone RV Residence 40flft Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2022 Keystone RV Residence 40flft
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 14000 lbs | Class 4 Receiver | - | - |
| Dry Weight | 12890 lbs | CURT WD Hitch & Sway Controller | - | - |
| Hitch Weight | 1445 lbs | - | - | - |
| Payload Capacity | 1110 lbs | Coil SumoSprings | - | - |
| Length | 491 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 102 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 161 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 96 in | - | - | - |
Specs
Buy Now
More
GVWR
14000 lbs
Dry Weight
12890 lbs
Hitch Weight
1445 lbs
Payload Capacity
1110 lbs
Length
491 in
Width
102 in
Exterior Height
161 in
Interior Height
96 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 100 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
100
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 53 gal | 50-57gal Fresh Water Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 39 gal | - | - | - |
| Black Water Tank Capacity | 39 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
53 gal
Gray Water Tank Capacity
39 gal
Black Water Tank Capacity
39 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire Width | 235 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Tire Speed Rating | F | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire | ST235/85R 16F Full Spec | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Tire Aspect Ratio | 85 | - | - | - |
Specs
Buy Now
More
Rear Tire Width
235
Rear Brake Type
Electric Drum
Wheels Composition
Steel
Rear Tire Speed Rating
F
Front Brake Type
Not Applicable
Rear Tire
ST235/85R 16F Full Spec
Rear Wheel Diameter
16
Rear Tire Aspect Ratio
85
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 16 g | 16Gal Water heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
16 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of King Size Beds | 1 | - | - | - |
| Living Area Location | Rear | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Bathrooms | 1 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Door Style | Conventional Door | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Double Beds | 1 | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Sofa Material | Leather | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
Specs
Buy Now
More
Number Of King Size Beds
1
Living Area Location
Rear
Reclining Sofa
No
Number Of Bathrooms
1
Number Of Sofas
1
Full Size Master Bedroom Closet
Yes
Master Bedroom Door Style
Conventional Door
Master Bedroom Shades / Curtains
Yes
Number Of Double Beds
1
Master Bedroom Location
Front
Number Of Recliner / Rockers
2
Master Bedroom Mirror Doors
Yes
Number Of Convertible / Sofa Beds
1
Sofa Material
Leather
Master Bedroom Flooring Type
Carpet
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Size | Full-Size | - | - | - |
| Kitchen Table Configuration | Chairs | - | - | - |
| Refrigerator Power Mode | Electric | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Size
Full-Size
Kitchen Table Configuration
Chairs
Refrigerator Power Mode
Electric
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Aluminum | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 2 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Aluminum
Number Of Emergency Exits
1
Number of Doors
2
Door Type
Plastic / Glass
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Metallic | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Bunkhouse | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Phone Prewiring | Yes | - | - | - |
| Sliding Glass Door | Yes | - | - | - |
| Satellite | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Heated | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Screened Room | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Power Retractable Awning | No | - | - | - |
| Surround Sound | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Metallic
No
Satellite Prewiring
Yes
Bunkhouse
Yes
Wallpaper
Yes
Interior Wood Finish
Yes
Phone Prewiring
Yes
Sliding Glass Door
Yes
Satellite
No
Battery Power Converter
Yes
Water Heater Tank Bypass
Yes
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Heated
No
Overhead Fan
Yes
Screened Room
No
Cable Prewiring
Yes
Refrigerator
Standard
Air Conditioning Prewiring
Yes
Washer / Dryer Prewiring
Yes
Power Retractable Awning
No
Surround Sound
Yes
Heat Prewiring
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Number Of Televisions
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Leather | - | - | - |
Specs
Buy Now
More
Material
Leather
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Keystone RV Inc. | - | - | - |
| Year | 2022 | - | - | - |
| Make | Keystone | - | - | - |
| Display Name | Residence 40FLFT | - | - | - |
| Class | Destination | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2018 | - | - | - |
Specs
Buy Now
More
Parent Company
Keystone RV Inc.
Year
2022
Make
Keystone
Display Name
Residence 40FLFT
Class
Destination
Max Sleeping Count
6
Number of Slideouts
3
Introduction Year
2018
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this destination.
Tow-Ready Score
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Destination class averages
+1.0
Final Tow-Ready Score
6.0
Living Space & Layout
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Destination class averages
+1.8
Final Living Space & Layout
6.8
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Destination class averages
+0.8
Final Comfort & Features
5.8
Storage Space
4.0/10
Base Score
5.0
Spec-based adjustments
Based on Destination class averages
-1.0
Final Storage Space
4.0
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Destination class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2022 Keystone RV Residence 40flft, ensure your vehicle's rated tow capacity exceeds its GVWR of 14000 lbs. With a dry weight of 12890 lbs and hitch weight of 1445 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Destination has a dry weight of 12890 lbs and a GVWR of 14000 lbs, giving a payload capacity of 1110 lbs for gear, water, and supplies.
The approximate dimensions are length 491 in., width 102 in., and height 161 in. Always confirm clearances for garages, storage, and campsites.
The Residence 40flft includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Residence 40flft owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 14000 lbs and dry weight of 12890 lbs, the Residence 40flft is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

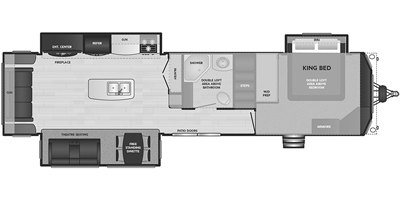

This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Destination.
The Residence 40flft features body construction with sidewalls and 2 axle(s). Its GVWR of 14000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
