2022 Coachmen RV Cross Trail Transit 21xg Specs
Know Before You Drive
Key specs for safe motorhome driving
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
11,000 lbs
License
Standard driver's license
Type
Class C
License Requirement
Standard driver's license
Standard
Check State
CDL May Apply
Essential Upgrades for the 2022 Coachmen RV Cross Trail Transit 21xg
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 11000 lbs | - | - | - |
| Dry Weight | 8632 lbs | - | - | - |
| Payload Capacity | 2368 lbs | Coil SumoSprings | - | - |
| Length | 289 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 91 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 124 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 79 in | - | - | - |
Specs
Buy Now
More
GVWR
11000 lbs
Dry Weight
8632 lbs
Payload Capacity
2368 lbs
Length
289 in
Width
91 in
Exterior Height
124 in
Interior Height
79 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 41 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 59 gal | - | - | - |
| Black Water Tank Capacity | 28 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 68 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
41 gal
Gray Water Tank Capacity
59 gal
Black Water Tank Capacity
28 gal
Number Of Propane Tanks
1
Propane Tank Capacity
68 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheelbase | 156 / 3962.4 in | - | - | - |
| Front Wheel Diameter | 16 | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
| Front Tire | 195/75R 16C Full Spec | - | - | - |
| Front Tire Aspect Ratio | 75 | - | - | - |
| Front Tire Width | 195 | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Tire | 195/75R 16C Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Front Tire Speed Rating | C | - | - | - |
| Rear Tire Width | 195 | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
Specs
Buy Now
More
Wheelbase
156 / 3962.4 in
Front Wheel Diameter
16
Rear Tire Speed Rating
C
Front Tire
195/75R 16C Full Spec
Front Tire Aspect Ratio
75
Front Tire Width
195
Rear Wheel Diameter
16
Rear Tire
195/75R 16C Full Spec
Rear Tire Aspect Ratio
75
Front Brake Type
Hydraulic Disc
Wheels Composition
Steel
Front Tire Speed Rating
C
Rear Tire Width
195
Rear Brake Type
Hydraulic Disc
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Sofa Material | Vinyl | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Double Beds | 1 | - | - | - |
| Living Area Location | Front | - | - | - |
Specs
Buy Now
More
Sofa Material
Vinyl
Number Of Convertible / Sofa Beds
1
Number Of Sofas
1
Number Of Bathrooms
1
Reclining Sofa
No
Number Of Double Beds
1
Living Area Location
Front
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Compact | - | - | - |
| Kitchen Table Configuration | Pedestal Table | - | - | - |
| Refrigerator Power Mode | Electric | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Compact
Kitchen Table Configuration
Pedestal Table
Refrigerator Power Mode
Electric
Kitchen Location
Center
Number Of Oven Burners
2
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Rear | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Rear
Bathroom Flooring Type
Vinyl
Toilet Type
Plastic
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 14 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
14 ft/m
Number of Awnings
1
Number Of Axles
1
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Reclining Seats | Yes | - | - | - |
| Supercharged | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Swivel Seats | No | - | - | - |
| Metallic | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Overhead Fan | No | Overhead Fan | - | - |
| Surround Sound | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Power Adjustable Seat | No | - | - | - |
| Satellite | No | - | - | - |
| Turbocharged | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
Specs
Buy Now
More
Reclining Seats
Yes
Supercharged
No
Heat Prewiring
Yes
Screened Room
No
Battery Power Converter
Yes
Wallpaper
Yes
Phone Prewiring
No
Refrigerator
Standard
Swivel Seats
No
Metallic
No
Sliding Glass Door
No
Cable Prewiring
Yes
Water Heater Tank Bypass
Yes
Power Retractable Awning
Yes
Satellite Prewiring
Yes
Air Conditioning Prewiring
Yes
TV Antenna Prewiring
Yes
Overhead Fan
No
Surround Sound
No
Interior Wood Finish
Yes
Seat Armrests
Yes
Bunkhouse
No
Washer / Dryer Prewiring
No
Power Adjustable Seat
No
Satellite
No
Turbocharged
Yes
Overdrive
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Seats | 2 | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Seat Type | Bucket | - | - | - |
| Number Of Rows | 1 | - | - | - |
| Seat Material | Cloth | - | - | - |
Specs
Buy Now
More
Number Of Seats
2
Seat Specifications
Standard
Seat Type
Bucket
Number Of Rows
1
Seat Material
Cloth
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Storage Capacity | 47 / 302.1 / 1330.9 cuft/gal/l | - | - | - |
Specs
Buy Now
More
Storage Capacity
47 / 302.1 / 1330.9 cuft/gal/l
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Model | Transit | - | - | - |
| Chassis Brand | Ford | - | - | - |
Specs
Buy Now
More
Chassis Model
Transit
Chassis Brand
Ford
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Transmission Brand | SelectShift® | - | - | - |
| Number Of Speeds | 10 | - | - | - |
| Transmission Type | Automatic | - | - | - |
| Driveline Type | 4X2 | - | - | - |
Specs
Buy Now
More
Transmission Brand
SelectShift®
Number Of Speeds
10
Transmission Type
Automatic
Driveline Type
4X2
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Carburetion | Standard | - | - | - |
| Engine Type | V6 | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Torque RPM | 2500 | - | - | - |
| Engine Brand Name | EcoBoost® | - | - | - |
| Horsepower | 310 bhp | - | - | - |
| Torque | 542.3 Nm | - | - | - |
| Horsepower RPM | 5000 | - | - | - |
| Cylinders | 6 | - | - | - |
Specs
Buy Now
More
Carburetion
Standard
Engine Type
V6
Carburetion Type
Fuel Injected
Torque RPM
2500
Engine Brand Name
EcoBoost®
Horsepower
310 bhp
Torque
542.3 Nm
Horsepower RPM
5000
Cylinders
6
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Speaker Location
Interior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 25 / 94.6 gal/l | 5Gal Gas Can | - | - |
| Fuel Type | Gas | Fuel Treatment | - | - |
Specs
Buy Now
More
Fuel Capacity
25 / 94.6 gal/l
Fuel Type
Gas
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Forest River | - | - | - |
| Year | 2022 | - | - | - |
| Make | Coachmen | - | - | - |
| Display Name | Cross Trail Transit 21XG | - | - | - |
| Class | Class C | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Introduction Year | 2021 | - | - | - |
Specs
Buy Now
More
Parent Company
Forest River
Year
2022
Make
Coachmen
Display Name
Cross Trail Transit 21XG
Class
Class C
Max Sleeping Count
4
Introduction Year
2021
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class c.
Drivability & Handling
8.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+3.8
Final Drivability & Handling
8.8
Living Space & Layout
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.5
Final Living Space & Layout
6.5
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.3
Final Comfort & Features
5.3
Storage Space
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.5
Final Storage Space
6.5
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2022 Coachmen RV Cross Trail Transit 21xg, ensure your vehicle's rated tow capacity exceeds its GVWR of 11000 lbs. With a dry weight of 8632 lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class C has a dry weight of 8632 lbs and a GVWR of 11000 lbs, giving a payload capacity of 2368 lbs for gear, water, and supplies.
The approximate dimensions are length 289 in., width 91 in., and height 124 in. Always confirm clearances for garages, storage, and campsites.
The Cross Trail Transit 21xg includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Cross Trail Transit 21xg owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 11000 lbs and dry weight of 8632 lbs, the Cross Trail Transit 21xg is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

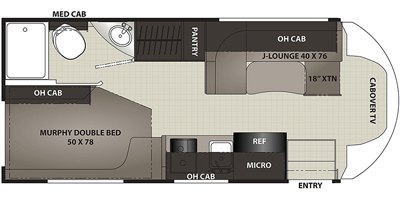

This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class C.
The Cross Trail Transit 21xg features body construction with sidewalls and 1 axle(s). Its GVWR of 11000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
