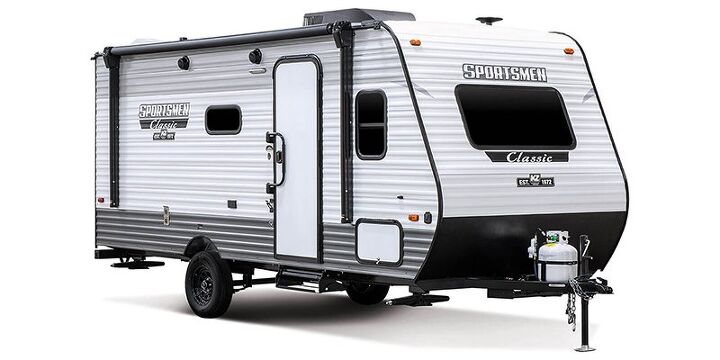

2021 KZ RV Sportsmen Classic 170mb Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
4Runner
Up to 5,000 lbs
Grand Cherokee
Up to 7,200 lbs
Explorer
Up to 5,600 lbs
Chevy Tahoe
Up to 8,400 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2021 KZ RV Sportsmen Classic 170mb
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 3500 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 2910 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 460 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 590 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 264 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 90 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 78 in | - | - | - |
| Exterior Height | 112 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
3500 lbs
Dry Weight
2910 lbs
Hitch Weight
460 lbs
Payload Capacity
590 lbs
Length
264 in
Width
90 in
Interior Height
78 in
Exterior Height
112 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 20 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 32 gal | - | - | - |
| Black Water Tank Capacity | 26 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 20 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
20 gal
Gray Water Tank Capacity
32 gal
Black Water Tank Capacity
26 gal
Number Of Propane Tanks
1
Propane Tank Capacity
20 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Rear Tire | 14 Inch Nitrogen Filled Radial Tires Full Spec | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
Specs
Buy Now
More
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Wheel Diameter
14
Rear Tire
14 Inch Nitrogen Filled Radial Tires Full Spec
Wheels Composition
Steel
Rear Brake Type
Electric Drum
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Living Area Location | Front | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Sofa Material | Vinyl | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
Specs
Buy Now
More
Number Of Queen Size Beds
1
Reclining Sofa
No
Living Area Location
Front
Number Of Convertible / Sofa Beds
1
Sofa Material
Vinyl
Number Of Bathrooms
1
Number Of Sofas
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
Specs
Buy Now
More
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
2
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Plastic
Bathroom Location
Rear
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 12 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Sheet Metal | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Curtain | - | - | - |
| Brand Name | Furrion | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Awning Length
12 ft/m
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
1
Sidewall Construction
Sheet Metal
Number of Doors
1
Door Type
Curtain
Brand Name
Furrion
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Phone Prewiring | No | - | - | - |
| Surround Sound | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Overhead Fan | No | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Satellite | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Metallic | No | - | - | - |
| Screened Room | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
Specs
Buy Now
More
Phone Prewiring
No
Surround Sound
No
Air Conditioning Prewiring
Yes
Interior Wood Finish
Yes
Satellite Prewiring
No
Bunkhouse
No
Wallpaper
Yes
Overhead Fan
No
Sliding Glass Door
No
Heat Prewiring
Yes
Satellite
No
Power Retractable Awning
Yes
TV Antenna Prewiring
Yes
Battery Power Converter
Yes
Metallic
No
Screened Room
No
Cable Prewiring
Yes
Refrigerator
Standard
Washer / Dryer Prewiring
No
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Thor Industries Inc. | - | - | - |
| Year | 2021 | - | - | - |
| Make | KZ | - | - | - |
| Display Name | Sportsmen Classic 170MB | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 3 | - | - | - |
| Introduction Year | 2020 | - | - | - |
Specs
Buy Now
More
Parent Company
Thor Industries Inc.
Year
2021
Make
KZ
Display Name
Sportsmen Classic 170MB
Class
Travel Trailer
Max Sleeping Count
3
Introduction Year
2020
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
7.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.8
Final Tow-Ready Score
7.8
Living Space & Layout
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.0
Final Living Space & Layout
7.0
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.5
Final Off-Grid & Campsites
5.5
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2021 KZ RV Sportsmen Classic 170mb, ensure your vehicle's rated tow capacity exceeds its GVWR of 3500 lbs. With a dry weight of 2910 lbs and hitch weight of 460 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 2910 lbs and a GVWR of 3500 lbs, giving a payload capacity of 590 lbs for gear, water, and supplies.
The approximate dimensions are length 264 in., width 90 in., and height 112 in. Always confirm clearances for garages, storage, and campsites.
The Sportsmen Classic 170mb includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Sportsmen Classic 170mb owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 3500 lbs and dry weight of 2910 lbs, the Sportsmen Classic 170mb is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 3 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Sportsmen Classic 170mb features body construction with sidewalls and 1 axle(s). Its GVWR of 3500 lbs ensures strength without excessive towing weight.
