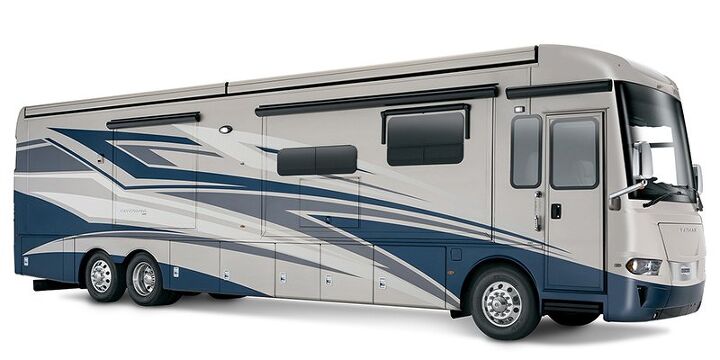

2020 Newmar Ventana 3717 Specs
1
Can Your Vehicle Tow This?
Enter your vehicle to check manufacturer-rated limits
Loading your garage...
2
Get Your Real Numbers
Tow rating is one limit — payload is what overloads first
The full calculator factors in:
Tongue weight vs payload
Water tanks (50 gal = 417 lbs)
Propane (40 lbs full)
Passengers in truck
Gear, bikes, coolers, tools
Cargo weight distribution
Your truck's payload limit carries tongue weight, passengers, and everything in the bed — that's the number that overloads first. The calculator checks both tow and payload with real gear weights.
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 37500 lbs | - | - | - |
| Length | 454 in | - | ||
| Width | 101.5 in | - | ||
| Exterior Height | 154 in | - | ||
| Interior Height | 83 in | - | ||
| Towing Capacity | 5000 / 2268 lbs | - | - | - |
Specs
Buy Now
More
GVWR
37500 lbs
Length
454 in
Width
101.5 in
Exterior Height
154 in
Interior Height
83 in
Towing Capacity
5000 / 2268 lbs
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | ||
| Battery Type | 12V Lead-Acid | Top 5 | ||
| Solar Pre-Wired | Optional | - | ||
| Inverter | Optional | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | ||
| Number Of Gray Water Holding Tanks | 1 | - | ||
| Number Of Black Water Holding Tanks | 1 | - | ||
| Fresh Water Tank Capacity | 105 gal | - | - | |
| Gray Water Tank Capacity | 65 gal | - | - | - |
| Black Water Tank Capacity | 45 gal | - | - | |
| Number Of Propane Tanks | 1 | - | ||
| Propane Tank Capacity | 135.7 lbs | - | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
105 gal
Gray Water Tank Capacity
65 gal
Black Water Tank Capacity
45 gal
Number Of Propane Tanks
1
Propane Tank Capacity
135.7 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Brake Type | Hydraulic Disc | - | - | - |
| Front Tire | Michelin® XZE2: 275/80R 22.5 Full Spec | - | - | - |
| Front Tire Aspect Ratio | 80 | - | - | - |
| Front Tire Width | 275 | - | - | - |
| Front Wheel Diameter | 22.5 | - | - | - |
| Front Wheel Width | 8.25 in | - | - | - |
| Rear Brake Type | Hydraulic Drum | - | - | - |
| Rear Tire | Michelin® XZE2: 275/80R 22.5 Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 80 | - | - | - |
| Rear Tire Width | 275 | - | - | - |
| Rear Wheel Diameter | 22.5 | - | - | - |
| Rear Wheel Width | 8.25 in | - | - | - |
| Tire Brand | Michelin® | - | - | - |
| Wheelbase | 242 / 6146.8 in | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
Specs
Buy Now
More
Front Brake Type
Hydraulic Disc
Front Tire
Michelin® XZE2: 275/80R 22.5 Full Spec
Front Tire Aspect Ratio
80
Front Tire Width
275
Front Wheel Diameter
22.5
Front Wheel Width
8.25 in
Rear Brake Type
Hydraulic Drum
Rear Tire
Michelin® XZE2: 275/80R 22.5 Full Spec
Rear Tire Aspect Ratio
80
Rear Tire Width
275
Rear Wheel Diameter
22.5
Rear Wheel Width
8.25 in
Tire Brand
Michelin®
Wheelbase
242 / 6146.8 in
Wheels Composition
Aluminum
Tires & Wheels Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | - | ||
| Water Heater Tank Capacity | 10 g | - | ||
| Heater Type | Automatic | - | ||
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
10 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Living Area Location | Front | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Master Bedroom Flooring Type | Carpet / Tile | - | - | - |
| Master Bedroom Location | Rear | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Convertible / Sofa Beds | 3 | - | - | - |
| Number Of King Size Beds | 1 | - | - | - |
| Number Of Sofas | 2 | - | - | |
| Reclining Sofa | No | - | ||
| Sofa Material | Leather | - | - | - |
Specs
Buy Now
More
Full Size Master Bedroom Closet
Yes
Living Area Location
Front
Master Bedroom Door Style
Full Sliding Door
Master Bedroom Flooring Type
Carpet / Tile
Master Bedroom Location
Rear
Master Bedroom Mirror Doors
Yes
Master Bedroom Shades / Curtains
Yes
Number Of Convertible / Sofa Beds
3
Number Of King Size Beds
1
Number Of Sofas
2
Reclining Sofa
No
Sofa Material
Leather
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Carpet / Tile | - | - | - |
| Kitchen Location | Center | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Carpet / Tile
Kitchen Location
Center
Kitchen Table Configuration
Bench Seats
Number Of Oven Burners
2
Refrigerator Power Mode
Electric / Propane
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Tile | - | - | - |
| Bathroom Location | Center | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Toilet Type | Porcelain | Top 5 |
Specs
Buy Now
More
Bathroom Flooring Type
Tile
Bathroom Location
Center
Number Of Bathrooms
1
Toilet Type
Porcelain
Bathroom Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 2 | - | ||
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | ||
| Door Type | Plastic / Glass | - | ||
| Brand Name | Harman/Kardon | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
2
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
1
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Brand Name
Harman/Kardon
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | ||
| Battery Power Converter | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Overhead Fan | Yes | - | - | |
| Phone Prewiring | No | - | - | - |
| Power Adjustable Seat | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Supercharged | No | - | - | - |
| Surround Sound | Yes | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Turbocharged | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Battery Power Converter
Yes
Bunkhouse
No
Cable Prewiring
Yes
Heat Prewiring
Yes
Interior Wood Finish
Yes
Overdrive
Yes
Overhead Fan
Yes
Phone Prewiring
No
Power Adjustable Seat
Yes
Power Retractable Awning
Yes
Power Retractable Slideout
Yes
Reclining Seats
Yes
Refrigerator
Standard
Satellite Prewiring
Yes
Screened Room
No
Seat Armrests
Yes
Sliding Glass Door
No
Supercharged
No
Surround Sound
Yes
Swivel Seats
Yes
Turbocharged
Yes
TV Antenna Prewiring
Yes
Wallpaper
Yes
Washer / Dryer Prewiring
Yes
Water Heater Tank Bypass
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Rows | 1 | - | - | - |
| Number Of Seats | 2 | - | - | - |
| Seat Material | Leather | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Seat Type | Bucket | - | - | - |
Specs
Buy Now
More
Number Of Rows
1
Number Of Seats
2
Seat Material
Leather
Seat Specifications
Standard
Seat Type
Bucket
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Brand | Freightliner | - | - | - |
| Chassis Model | XC-Series | - | - | - |
Specs
Buy Now
More
Chassis Brand
Freightliner
Chassis Model
XC-Series
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Driveline Type | 4X2 | - | - | - |
| Number Of Speeds | 6 | - | - | - |
| Transmission Brand | Allison | - | - | - |
| Transmission Type | Automatic | - | - | - |
Specs
Buy Now
More
Driveline Type
4X2
Number Of Speeds
6
Transmission Brand
Allison
Transmission Type
Automatic
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Carburetion | Standard | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Cylinders | 6 | - | - | - |
| Engine Brand Name | Cummins | - | - | - |
| Engine Type | I6 Diesel Pusher | - | - | - |
| Horsepower | 360 bhp | - | - | - |
| Horsepower RPM | 2600 | - | - | - |
| Torque | 1085 Nm | - | - | - |
| Torque RPM | 1800 | - | - | - |
Specs
Buy Now
More
Carburetion
Standard
Carburetion Type
Fuel Injected
Cylinders
6
Engine Brand Name
Cummins
Engine Type
I6 Diesel Pusher
Horsepower
360 bhp
Horsepower RPM
2600
Torque
1085 Nm
Torque RPM
1800
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Number Of Televisions | 2 | - | ||
| Speaker Location | Interior | - | - | |
| Television Brand Name | Samsung | - | - | - |
Specs
Buy Now
More
Number Of Discs
1
Number Of Televisions
2
Speaker Location
Interior
Television Brand Name
Samsung
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 100 / 379 gal/l | - | - | |
| Fuel Type | Diesel | - | - |
Specs
Buy Now
More
Fuel Capacity
100 / 379 gal/l
Fuel Type
Diesel
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Winnebago Industries | - | - | - |
| Year | 2020 | - | - | - |
| Make | Newmar | - | - | - |
| Display Name | Ventana 3717 | - | - | - |
| Class | Class A | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 4 | - | - | - |
| Introduction Year | 2019 | - | - | - |
Specs
Buy Now
More
Parent Company
Winnebago Industries
Year
2020
Make
Newmar
Display Name
Ventana 3717
Class
Class A
Max Sleeping Count
8
Number of Slideouts
4
Introduction Year
2019
Essential Upgrades for the 2020 Newmar Ventana 3717
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class a.
Drivability & Handling
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.0
Final Drivability & Handling
6.0
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2020 Newmar Ventana 3717, ensure your vehicle's rated tow capacity exceeds its GVWR of 37500 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class A has a dry weight of lbs and a GVWR of 37500 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 454 in., width 101 in., and height 154 in. Always confirm clearances for garages, storage, and campsites.
The Ventana 3717 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Ventana 3717 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 37500 lbs and dry weight of lbs, the Ventana 3717 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class A.
The Ventana 3717 features body construction with sidewalls and 1 axle(s). Its GVWR of 37500 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
Leave the Noise Behind.
Reconnect Outdoors.
Our mission is to help people make well-informed RV buying decisions, so they can leave the noise and screens behind, reconnect with family, and create unforgettable memories in the great outdoors.
Free tools. No sales pressure. Just better decisions.
