2019 Shasta Shasta 18bh Specs
1
Can Your Vehicle Tow This?
Enter your vehicle to check manufacturer-rated limits
Loading your garage...
2
Get Your Real Numbers
Tow rating is one limit — payload is what overloads first
The full calculator factors in:
Tongue weight vs payload
Water tanks (50 gal = 417 lbs)
Propane (40 lbs full)
Passengers in truck
Gear, bikes, coolers, tools
Cargo weight distribution
Your truck's payload limit carries tongue weight, passengers, and everything in the bed — that's the number that overloads first. The calculator checks both tow and payload with real gear weights.
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Dry Weight | 3210 lbs | - | ||
| Hitch Weight | 350 lbs | - | ||
| Payload Capacity | 1821 lbs | - | ||
| Length | 269 in | - | ||
| Width | 96 in | - | ||
| Exterior Height | 126 in | - | ||
| Interior Height | 69 in | - |
Specs
Buy Now
More
Dry Weight
3210 lbs
Hitch Weight
350 lbs
Payload Capacity
1821 lbs
Length
269 in
Width
96 in
Exterior Height
126 in
Interior Height
69 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | ||
| Battery Type | 12V Lead-Acid | Top 5 | ||
| Solar Pre-Wired | Optional | - | ||
| Inverter | Optional | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | ||
| Number Of Gray Water Holding Tanks | 1 | - | ||
| Number Of Black Water Holding Tanks | 1 | - | ||
| Fresh Water Tank Capacity | 42 gal | - | ||
| Gray Water Tank Capacity | 36 gal | - | ||
| Black Water Tank Capacity | 36 gal | - | - | |
| Number Of Propane Tanks | 1 | - | ||
| Propane Tank Capacity | 20 lbs | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
42 gal
Gray Water Tank Capacity
36 gal
Black Water Tank Capacity
36 gal
Number Of Propane Tanks
1
Propane Tank Capacity
20 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Brake Type | Not Applicable | - | - | - |
| Rear Brake Type | Electric Drum | - | ||
| Rear Tire | ST205/75 R14 Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Wheels Composition | Steel | - | - | - |
Specs
Buy Now
More
Front Brake Type
Not Applicable
Rear Brake Type
Electric Drum
Rear Tire
ST205/75 R14 Full Spec
Rear Tire Aspect Ratio
75
Rear Tire Width
205
Rear Wheel Diameter
14
Wheels Composition
Steel
Tires & Wheels Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | - | ||
| Water Heater Tank Capacity | 6 g | - | ||
| Heater Type | Automatic | - | ||
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.

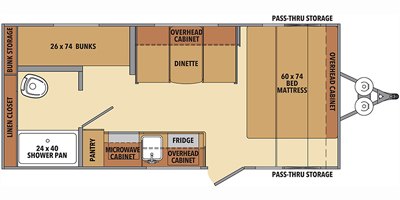

Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Center | - | - | - |
| Number Of Bunk Beds | 2 | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Number Of Queen Size Beds | 1 | - |
Specs
Buy Now
More
Living Area Location
Center
Number Of Bunk Beds
2
Number Of Convertible / Sofa Beds
1
Number Of Queen Size Beds
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Kitchen Location | Center | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Refrigerator Size | Compact | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Location
Center
Kitchen Table Configuration
Bench Seats
Number Of Oven Burners
3
Refrigerator Power Mode
Electric / Propane
Refrigerator Size
Compact
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Bathroom Location | Rear | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Toilet Type | Plastic | Top 5 |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Bathroom Location
Rear
Number Of Bathrooms
1
Toilet Type
Plastic
Bathroom Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 12 ft/m | - | ||
| Number of Awnings | 1 | - | ||
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Aluminum | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | ||
| Door Type | Curtain | - | ||
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Awning Length
12 ft/m
Number of Awnings
1
Number Of Axles
1
Sidewall Construction
Aluminum
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | ||
| Battery Power Converter | Yes | - | - | - |
| Bunkhouse | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Overhead Fan | Yes | - | - | |
| Phone Prewiring | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Screened Room | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Battery Power Converter
Yes
Bunkhouse
Yes
Cable Prewiring
Yes
Heat Prewiring
Yes
Interior Wood Finish
Yes
Overhead Fan
Yes
Phone Prewiring
No
Power Retractable Awning
Yes
Refrigerator
Standard
Satellite Prewiring
No
Screened Room
No
Sliding Glass Door
No
TV Antenna Prewiring
Yes
Wallpaper
Yes
Washer / Dryer Prewiring
No
Water Heater Tank Bypass
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Forest River Inc. | - | - | - |
| Year | 2019 | - | - | - |
| Make | Shasta | - | - | - |
| Display Name | Shasta 18BH | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Introduction Year | 2019 | - | - | - |
Specs
Buy Now
More
Parent Company
Forest River Inc.
Year
2019
Make
Shasta
Display Name
Shasta 18BH
Class
Travel Trailer
Max Sleeping Count
6
Introduction Year
2019
Essential Upgrades for the 2019 Shasta Shasta 18bh
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2019 Shasta Shasta 18bh, ensure your vehicle's rated tow capacity exceeds its GVWR of lbs. With a dry weight of 3210 lbs and hitch weight of 350 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 3210 lbs and a GVWR of lbs, giving a payload capacity of 1821 lbs for gear, water, and supplies.
The approximate dimensions are length 269 in., width 96 in., and height 126 in. Always confirm clearances for garages, storage, and campsites.
The Shasta 18bh includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Shasta 18bh owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of lbs and dry weight of 3210 lbs, the Shasta 18bh is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Shasta 18bh features body construction with sidewalls and 1 axle(s). Its GVWR of lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
