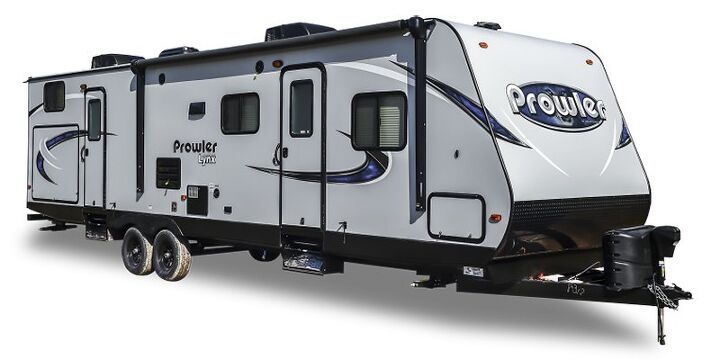

2018 Heartland Prowler Lynx 30-lx Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2018 Heartland Prowler Lynx 30-lx
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 9000 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 6720 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 880 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 2130 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 407 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 80 in | - | - | - |
| Exterior Height | 134 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
9000 lbs
Dry Weight
6720 lbs
Hitch Weight
880 lbs
Payload Capacity
2130 lbs
Length
407 in
Width
96 in
Interior Height
80 in
Exterior Height
134 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 45 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
45
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 42 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 35 gal | - | - | - |
| Black Water Tank Capacity | 35 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 40 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
42 gal
Gray Water Tank Capacity
35 gal
Black Water Tank Capacity
35 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire Speed Rating | D | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Wheel Diameter | 15 | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Width | 225 | - | - | - |
| Rear Tire | ST225/75 R15-D Full Spec | - | - | - |
Specs
Buy Now
More
Rear Tire Speed Rating
D
Rear Brake Type
Electric Drum
Rear Wheel Diameter
15
Rear Tire Aspect Ratio
75
Wheels Composition
Steel
Front Brake Type
Not Applicable
Rear Tire Width
225
Rear Tire
ST225/75 R15-D Full Spec
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Sofa Material | Vinyl | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Curtain | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Front / Rear | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Bunk Beds | 4 | - | - | - |
| Living Area Location | Center | - | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Number Of Queen Size Beds
1
Sofa Material
Vinyl
Number Of Bathrooms
1
Master Bedroom Door Style
Curtain
Number Of Convertible / Sofa Beds
2
Number Of Sofas
1
Full Size Master Bedroom Closet
No
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front / Rear
Reclining Sofa
No
Number Of Bunk Beds
4
Living Area Location
Center
Master Bedroom Mirror Doors
No
Master Bedroom Flooring Type
Vinyl
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | U-shaped Dinette | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
U-shaped Dinette
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 17 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Aluminum | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Curtain | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Awning Length
17 ft/m
Number of Awnings
1
Number Of Axles
2
Sidewall Construction
Aluminum
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Metallic | No | - | - | - |
| Screened Room | No | - | - | - |
| Bunkhouse | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Phone Prewiring | No | - | - | - |
| Surround Sound | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Heated | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Satellite | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Heat Prewiring
Yes
Metallic
No
Screened Room
No
Bunkhouse
Yes
Interior Wood Finish
Yes
Refrigerator
Standard
Washer / Dryer Prewiring
No
Phone Prewiring
No
Surround Sound
No
Satellite Prewiring
Yes
Battery Power Converter
Yes
Wallpaper
Yes
Heated
No
Overhead Fan
Yes
Sliding Glass Door
No
Cable Prewiring
Yes
Satellite
No
Air Conditioning Prewiring
Yes
Water Heater Tank Bypass
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Heartland Recreational Vehicles LLC | - | - | - |
| Year | 2018 | - | - | - |
| Make | Heartland | - | - | - |
| Display Name | Prowler Lynx 30 LX | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 10 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2014 | - | - | - |
Specs
Buy Now
More
Parent Company
Heartland Recreational Vehicles LLC
Year
2018
Make
Heartland
Display Name
Prowler Lynx 30 LX
Class
Travel Trailer
Max Sleeping Count
10
Number of Slideouts
1
Introduction Year
2014
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.8
Final Tow-Ready Score
5.8
Living Space & Layout
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Living Space & Layout
5.3
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.5
Final Storage Space
5.5
Off-Grid & Campsites
4.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
-0.2
Final Off-Grid & Campsites
4.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2018 Heartland Prowler Lynx 30-lx, ensure your vehicle's rated tow capacity exceeds its GVWR of 9000 lbs. With a dry weight of 6720 lbs and hitch weight of 880 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 6720 lbs and a GVWR of 9000 lbs, giving a payload capacity of 2130 lbs for gear, water, and supplies.
The approximate dimensions are length 407 in., width 96 in., and height 134 in. Always confirm clearances for garages, storage, and campsites.
The Prowler Lynx 30-lx includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Prowler Lynx 30-lx owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 9000 lbs and dry weight of 6720 lbs, the Prowler Lynx 30-lx is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

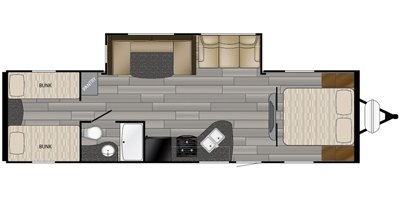

This floorplan sleeps up to 10 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Prowler Lynx 30-lx features body construction with sidewalls and 2 axle(s). Its GVWR of 9000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
