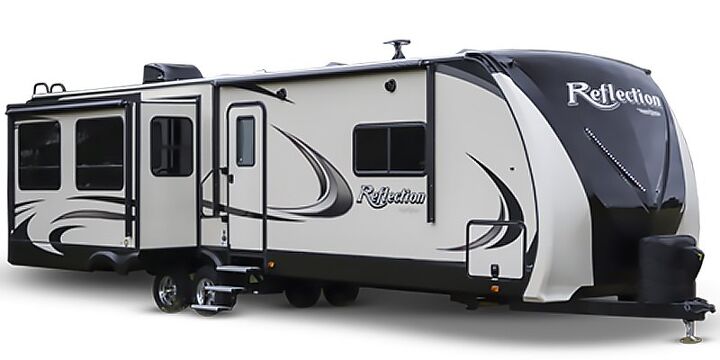

2018 Grand Design RV Reflection 315rlts Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2018 Grand Design RV Reflection 315rlts
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 10995 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 8994 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 1065 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Length | 455 in | Furrion Backup Camera | Shop Cameras | - |
| Exterior Height | 137 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
10995 lbs
Dry Weight
8994 lbs
Hitch Weight
1065 lbs
Length
455 in
Exterior Height
137 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 2 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 60 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 118 gal | - | - | - |
| Black Water Tank Capacity | 43 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
2
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
60 gal
Gray Water Tank Capacity
118 gal
Black Water Tank Capacity
43 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheels Composition | Aluminum | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Tire | 16-Inch E-Rated Full Spec | - | - | - |
Specs
Buy Now
More
Wheels Composition
Aluminum
Rear Brake Type
Electric Drum
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Wheel Diameter
16
Rear Tire
16-Inch E-Rated Full Spec
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Rear | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Sofa Material | Leather | - | - | - |
| Master Bedroom Door Style | Conventional Door | - | - | - |
Specs
Buy Now
More
Living Area Location
Rear
Number Of Queen Size Beds
1
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Reclining Sofa
No
Number Of Sofas
1
Number Of Convertible / Sofa Beds
2
Master Bedroom Mirror Doors
Yes
Master Bedroom Flooring Type
Vinyl
Number Of Recliner / Rockers
2
Full Size Master Bedroom Closet
Yes
Number Of Bathrooms
1
Sofa Material
Leather
Master Bedroom Door Style
Conventional Door
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Size | Full-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Size
Full-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Center
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 23.5 ft/m | - | All Awnings | - |
| Number of Awnings | 2 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
23.5 ft/m
Number of Awnings
2
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Surround Sound | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Phone Prewiring | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Refrigerator | Standard | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
Specs
Buy Now
More
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Power Retractable Awning
Yes
Screened Room
No
Air Conditioning Prewiring
Yes
Washer / Dryer Prewiring
Yes
Heat Prewiring
Yes
Surround Sound
No
Bunkhouse
No
Phone Prewiring
No
Satellite Prewiring
Yes
Wallpaper
Yes
Power Retractable Slideout
Yes
Sliding Glass Door
No
Battery Power Converter
Yes
Overhead Fan
Yes
Refrigerator
Standard
Water Heater Tank Bypass
Yes
Interior Wood Finish
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Leather | - | - | - |
Specs
Buy Now
More
Material
Leather
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Winnebago Industries | - | - | - |
| Year | 2018 | - | - | - |
| Make | Grand Design | - | - | - |
| Display Name | Reflection Travel Trailer 315RLTS | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2017 | - | - | - |
Specs
Buy Now
More
Parent Company
Winnebago Industries
Year
2018
Make
Grand Design
Display Name
Reflection Travel Trailer 315RLTS
Class
Travel Trailer
Max Sleeping Count
6
Number of Slideouts
3
Introduction Year
2017
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
3.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
-1.2
Final Tow-Ready Score
3.8
Living Space & Layout
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.0
Final Living Space & Layout
7.0
Comfort & Features
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Comfort & Features
6.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2018 Grand Design RV Reflection 315rlts, ensure your vehicle's rated tow capacity exceeds its GVWR of 10995 lbs. With a dry weight of 8994 lbs and hitch weight of 1065 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 8994 lbs and a GVWR of 10995 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 455 in., width in., and height 137 in. Always confirm clearances for garages, storage, and campsites.
The Reflection 315rlts includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Reflection 315rlts owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 10995 lbs and dry weight of 8994 lbs, the Reflection 315rlts is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Reflection 315rlts features body construction with sidewalls and 2 axle(s). Its GVWR of 10995 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
