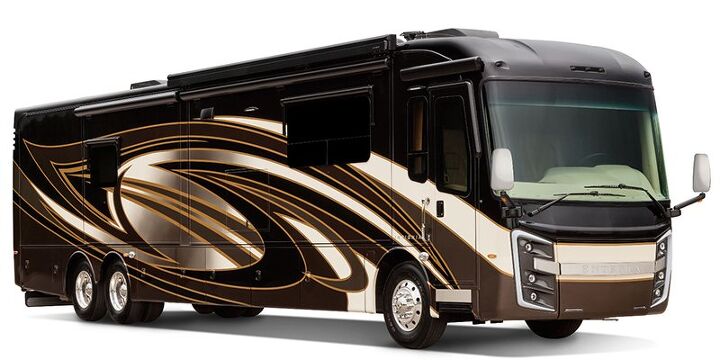

2018 Entegra Coach Insignia 44r Specs
Know Before You Drive
Key specs for safe motorhome driving
⚠️ Height Alert: Over 11' tall. Watch for low bridges and overhangs!
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
48,000 lbs
License
May require CDL
Type
Class A
License Requirement
May require CDL
Standard
Check State
CDL May Apply
Essential Upgrades for the 2018 Entegra Coach Insignia 44r
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 48000 lbs | - | - | - |
| Width | 101 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 84 in | - | - | - |
| Towing Capacity | 15000 / 6804 lbs | - | - | - |
| Exterior Height | 155 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
48000 lbs
Width
101 in
Interior Height
84 in
Towing Capacity
15000 / 6804 lbs
Exterior Height
155 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 100 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 62 gal | - | - | - |
| Black Water Tank Capacity | 41 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 212 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
100 gal
Gray Water Tank Capacity
62 gal
Black Water Tank Capacity
41 gal
Number Of Propane Tanks
1
Propane Tank Capacity
212 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Brake Type | Hydraulic Drum | - | - | - |
| Rear Tire Aspect Ratio | 80 | - | - | - |
| Front Wheel Diameter | 22.5 | - | - | - |
| Tire Brand | Michelin® | - | - | - |
| Rear Wheel Diameter | 22.5 | - | - | - |
| Front Tire | Michelin® 315/80R 22.5 XZA1 Full Spec | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Front Tire Width | 315 | - | - | - |
| Rear Tire | Michelin® 295/80R 22.5 XZA2 Full Spec | - | - | - |
| Rear Tire Width | 295 | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Wheelbase | 320 / 8128 in | - | - | - |
| Front Tire Aspect Ratio | 80 | - | - | - |
Specs
Buy Now
More
Rear Brake Type
Hydraulic Drum
Rear Tire Aspect Ratio
80
Front Wheel Diameter
22.5
Tire Brand
Michelin®
Rear Wheel Diameter
22.5
Front Tire
Michelin® 315/80R 22.5 XZA1 Full Spec
Wheels Composition
Aluminum
Front Tire Width
315
Rear Tire
Michelin® 295/80R 22.5 XZA2 Full Spec
Rear Tire Width
295
Front Brake Type
Hydraulic Disc
Wheelbase
320 / 8128 in
Front Tire Aspect Ratio
80
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of King Size Beds | 1 | - | - | - |
| Number Of Bathrooms | 2 | - | - | - |
| Sofa Material | Leather | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Master Bedroom Location | Center | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Number Of Bunk Beds | 2 | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Living Area Location | Front | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Master Bedroom Flooring Type | Tile | - | - | - |
Specs
Buy Now
More
Number Of King Size Beds
1
Number Of Bathrooms
2
Sofa Material
Leather
Master Bedroom Mirror Doors
Yes
Master Bedroom Door Style
Full Sliding Door
Number Of Convertible / Sofa Beds
2
Master Bedroom Location
Center
Number Of Sofas
1
Number Of Bunk Beds
2
Full Size Master Bedroom Closet
Yes
Master Bedroom Shades / Curtains
Yes
Living Area Location
Front
Reclining Sofa
No
Master Bedroom Flooring Type
Tile
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 2 | - | - | - |
| Kitchen / Living Area Flooring Type | Tile | - | - | - |
| Refrigerator Size | Full-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
2
Kitchen / Living Area Flooring Type
Tile
Refrigerator Size
Full-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Rear / Center | - | - | - |
| Bathroom Flooring Type | Tile | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Rear / Center
Bathroom Flooring Type
Tile
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Brand Name | JBL | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Brand Name
JBL
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Heated | No | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Turbocharged | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Satellite | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Supercharged | No | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Power Adjustable Seat | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Bunkhouse | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Phone Prewiring | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
Specs
Buy Now
More
Heated
No
Washer / Dryer Prewiring
Yes
Power Retractable Awning
Yes
Seat Armrests
Yes
Turbocharged
Yes
Overhead Fan
Yes
Satellite
Yes
Cable Prewiring
Yes
Supercharged
No
Reclining Seats
Yes
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Wallpaper
Yes
Power Adjustable Seat
Yes
Screened Room
No
Swivel Seats
Yes
Overdrive
Yes
Refrigerator
Standard
Bunkhouse
Yes
Interior Wood Finish
Yes
Water Heater Tank Bypass
Yes
Power Retractable Slideout
Yes
Sliding Glass Door
No
TV Antenna Prewiring
Yes
Phone Prewiring
Yes
Satellite Prewiring
Yes
Surround Sound
Yes
Battery Power Converter
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Seats | 2 | - | - | - |
| Seat Type | Bucket | - | - | - |
| Number Of Rows | 1 | - | - | - |
| Seat Material | Leather | - | - | - |
| Seat Specifications | Standard | - | - | - |
Specs
Buy Now
More
Number Of Seats
2
Seat Type
Bucket
Number Of Rows
1
Seat Material
Leather
Seat Specifications
Standard
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Brand | Spartan | - | - | - |
| Chassis Model | K2 | - | - | - |
Specs
Buy Now
More
Chassis Brand
Spartan
Chassis Model
K2
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Speeds | 6 | - | - | - |
| Transmission Type | Automatic | - | - | - |
| Driveline Type | 4X2 | - | - | - |
| Transmission Brand | Allison | - | - | - |
Specs
Buy Now
More
Number Of Speeds
6
Transmission Type
Automatic
Driveline Type
4X2
Transmission Brand
Allison
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Torque RPM | 1400 | - | - | - |
| Engine Brand Name | Cummins | - | - | - |
| Carburetion | Standard | - | - | - |
| Horsepower RPM | 2100 | - | - | - |
| Cylinders | 6 | - | - | - |
| Torque | 1694.7 Nm | - | - | - |
| Horsepower | 450 bhp | - | - | - |
| Engine Type | I6 Diesel Pusher | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
Specs
Buy Now
More
Torque RPM
1400
Engine Brand Name
Cummins
Carburetion
Standard
Horsepower RPM
2100
Cylinders
6
Torque
1694.7 Nm
Horsepower
450 bhp
Engine Type
I6 Diesel Pusher
Carburetion Type
Fuel Injected
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 5 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Television Brand Name | Insignia | - | - | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
5
Television Brand Name
Insignia
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Type | Diesel | Fuel Treatment | - | - |
| Fuel Capacity | 100 / 378.5 gal/l | 5Gal Gas Can | - | - |
Specs
Buy Now
More
Fuel Type
Diesel
Fuel Capacity
100 / 378.5 gal/l
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 2 | - | - | - |
| GPS Brand | Rand McNally | - | - | - |
Specs
Buy Now
More
Number Of Radios
2
GPS Brand
Rand McNally
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Thor Industries | - | - | - |
| Year | 2018 | - | - | - |
| Make | Entegra Coach | - | - | - |
| Display Name | Insignia 44R | - | - | - |
| Class | Class A | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 4 | - | - | - |
| Introduction Year | 2018 | - | - | - |
Specs
Buy Now
More
Parent Company
Thor Industries
Year
2018
Make
Entegra Coach
Display Name
Insignia 44R
Class
Class A
Max Sleeping Count
8
Number of Slideouts
4
Introduction Year
2018
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class a.
Drivability & Handling
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.0
Final Drivability & Handling
5.0
Living Space & Layout
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.8
Final Living Space & Layout
5.8
Comfort & Features
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.3
Final Comfort & Features
6.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class A class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2018 Entegra Coach Insignia 44r, ensure your vehicle's rated tow capacity exceeds its GVWR of 48000 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class A has a dry weight of lbs and a GVWR of 48000 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length in., width 101 in., and height 155 in. Always confirm clearances for garages, storage, and campsites.
The Insignia 44r includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Insignia 44r owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 48000 lbs and dry weight of lbs, the Insignia 44r is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class A.
The Insignia 44r features body construction with sidewalls and 2 axle(s). Its GVWR of 48000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
