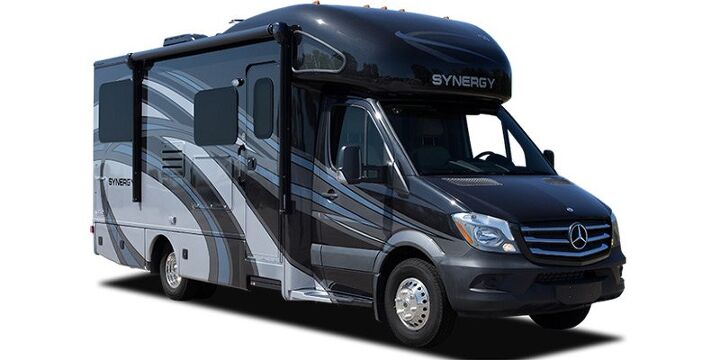

2017 Thor Motor Coach Synergy Sd24 Specs
Know Before You Drive
Key specs for safe motorhome driving
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
11,030 lbs
License
Standard driver's license
Type
Class C
License Requirement
Standard driver's license
Standard
Check State
CDL May Apply
Essential Upgrades for the 2017 Thor Motor Coach Synergy Sd24
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 11030 lbs | - | - | - |
| Length | 295 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 90 in | Clip On Mirrors | Shop Mirrors | - |
| Towing Capacity | 5000 / 2268 lbs | - | - | - |
| Exterior Height | 130 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 80 in | - | - | - |
Specs
Buy Now
More
GVWR
11030 lbs
Length
295 in
Width
90 in
Towing Capacity
5000 / 2268 lbs
Exterior Height
130 in
Interior Height
80 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 36 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 38 gal | - | - | - |
| Black Water Tank Capacity | 38 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 68.2 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
36 gal
Gray Water Tank Capacity
38 gal
Black Water Tank Capacity
38 gal
Number Of Propane Tanks
1
Propane Tank Capacity
68.2 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Wheel Diameter | 16 | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Tire | 215/85 R16 Full Spec | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Front Tire Width | 215 | - | - | - |
| Rear Tire Width | 215 | - | - | - |
| Rear Tire | 215/85 R16 Full Spec | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Wheelbase | 170 / 4318 in | - | - | - |
| Front Tire Aspect Ratio | 85 | - | - | - |
| Rear Tire Aspect Ratio | 85 | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
Specs
Buy Now
More
Front Wheel Diameter
16
Rear Wheel Diameter
16
Spare Tire Location
Exterior Mounted
Front Tire
215/85 R16 Full Spec
Wheels Composition
Steel
Front Tire Width
215
Rear Tire Width
215
Rear Tire
215/85 R16 Full Spec
Front Brake Type
Hydraulic Disc
Wheelbase
170 / 4318 in
Front Tire Aspect Ratio
85
Rear Tire Aspect Ratio
85
Rear Brake Type
Hydraulic Disc
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Living Area Location | Center | - | - | - |
| Master Bedroom Location | Rear | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Bunk Beds | 1 | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Curtain | - | - | - |
Specs
Buy Now
More
Number Of Convertible / Sofa Beds
1
Living Area Location
Center
Master Bedroom Location
Rear
Full Size Master Bedroom Closet
No
Master Bedroom Shades / Curtains
Yes
Number Of Bunk Beds
1
Master Bedroom Flooring Type
Vinyl
Number Of Queen Size Beds
1
Master Bedroom Mirror Doors
No
Number Of Bathrooms
1
Master Bedroom Door Style
Curtain
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 2 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
2
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Rear
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 14.5 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
14.5 ft/m
Number of Awnings
1
Number Of Axles
1
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Satellite | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Turbocharged | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Supercharged | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Heated | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Surround Sound | No | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Power Adjustable Seat | No | - | - | - |
Specs
Buy Now
More
Satellite
No
Bunkhouse
No
Turbocharged
Yes
Overdrive
Yes
Supercharged
No
Interior Wood Finish
Yes
Power Retractable Slideout
Yes
Screened Room
No
Wallpaper
Yes
Phone Prewiring
No
Refrigerator
Standard
Battery Power Converter
Yes
Swivel Seats
Yes
Sliding Glass Door
No
Heated
No
Water Heater Tank Bypass
Yes
Power Retractable Awning
Yes
Satellite Prewiring
No
Cable Prewiring
Yes
TV Antenna Prewiring
Yes
Overhead Fan
Yes
Air Conditioning Prewiring
Yes
Surround Sound
No
Reclining Seats
Yes
Seat Armrests
Yes
Heat Prewiring
Yes
Washer / Dryer Prewiring
No
Power Adjustable Seat
No
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Seat Type | Bucket | - | - | - |
| Number Of Rows | 1 | - | - | - |
| Seat Material | Vinyl | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Number Of Seats | 2 | - | - | - |
Specs
Buy Now
More
Seat Type
Bucket
Number Of Rows
1
Seat Material
Vinyl
Seat Specifications
Standard
Number Of Seats
2
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Model | 3500 | - | - | - |
| Chassis Brand | Mercedes-Benz® Sprinter | - | - | - |
Specs
Buy Now
More
Chassis Model
3500
Chassis Brand
Mercedes-Benz® Sprinter
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Driveline Type | 4X2 | - | - | - |
| Transmission Type | Automatic | - | - | - |
| Number Of Speeds | 5 | - | - | - |
Specs
Buy Now
More
Driveline Type
4X2
Transmission Type
Automatic
Number Of Speeds
5
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Torque RPM | 1400 | - | - | - |
| Engine Brand Name | Mercedes-Benz® | - | - | - |
| Carburetion | Standard | - | - | - |
| Torque | 440.6 Nm | - | - | - |
| Horsepower RPM | 3800 | - | - | - |
| Cylinders | 6 | - | - | - |
| Horsepower | 188 bhp | - | - | - |
| Engine Type | V6 | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
Specs
Buy Now
More
Torque RPM
1400
Engine Brand Name
Mercedes-Benz®
Carburetion
Standard
Torque
440.6 Nm
Horsepower RPM
3800
Cylinders
6
Horsepower
188 bhp
Engine Type
V6
Carburetion Type
Fuel Injected
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 2 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
2
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Type | Diesel | Fuel Treatment | - | - |
| Fuel Capacity | 26.4 / 99.9 gal/l | 5Gal Gas Can | - | - |
Specs
Buy Now
More
Fuel Type
Diesel
Fuel Capacity
26.4 / 99.9 gal/l
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 2 | - | - | - |
Specs
Buy Now
More
Number Of Radios
2
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Thor Industries | - | - | - |
| Year | 2017 | - | - | - |
| Make | Thor Motor Coach | - | - | - |
| Display Name | Synergy SD24 | - | - | - |
| Class | Class C | - | - | - |
| Max Sleeping Count | 5 | - | - | - |
| Number of Slideouts | 2 | - | - | - |
| Introduction Year | 2016 | - | - | - |
Specs
Buy Now
More
Parent Company
Thor Industries
Year
2017
Make
Thor Motor Coach
Display Name
Synergy SD24
Class
Class C
Max Sleeping Count
5
Number of Slideouts
2
Introduction Year
2016
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class c.
Drivability & Handling
7.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+2.8
Final Drivability & Handling
7.8
Living Space & Layout
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.8
Final Living Space & Layout
6.8
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Thor Motor Coach Synergy Sd24, ensure your vehicle's rated tow capacity exceeds its GVWR of 11030 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class C has a dry weight of lbs and a GVWR of 11030 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 295 in., width 90 in., and height 130 in. Always confirm clearances for garages, storage, and campsites.
The Synergy Sd24 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Synergy Sd24 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 11030 lbs and dry weight of lbs, the Synergy Sd24 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 5 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class C.
The Synergy Sd24 features body construction with sidewalls and 1 axle(s). Its GVWR of 11030 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
