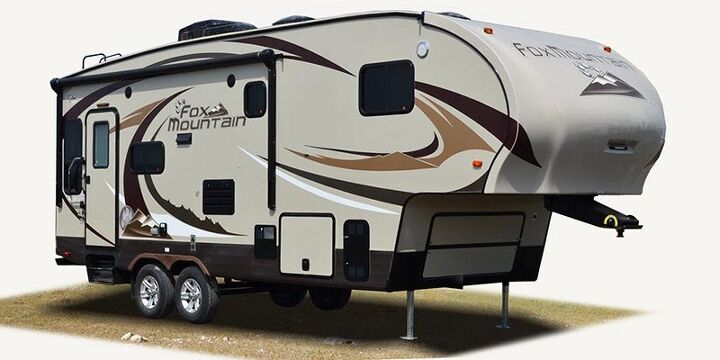

2017 Northwood Fox Mountain 255rks Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2017 Northwood Fox Mountain 255rks
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 15000 lbs | - | - | - |
| Dry Weight | 6859 lbs | - | - | - |
| Hitch Weight | 1918 lbs | - | - | - |
| Payload Capacity | 2723 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 358 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 154 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
15000 lbs
Dry Weight
6859 lbs
Hitch Weight
1918 lbs
Payload Capacity
2723 lbs
Length
358 in
Width
96 in
Exterior Height
154 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 2 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 60 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 40 gal | - | - | - |
| Black Water Tank Capacity | 35 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
2
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
60 gal
Gray Water Tank Capacity
40 gal
Black Water Tank Capacity
35 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Width | 225 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Speed Rating | D | - | - | - |
| Rear Tire | ST225/75R15 D Full Spec | - | - | - |
| Rear Wheel Diameter | 15 | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
Specs
Buy Now
More
Rear Brake Type
Electric Drum
Rear Tire Width
225
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Tire Speed Rating
D
Rear Tire
ST225/75R15 D Full Spec
Rear Wheel Diameter
15
Wheels Composition
Aluminum
Rear Tire Aspect Ratio
75
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.

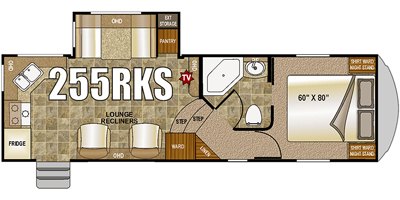

Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Mirror Doors | No | - | - | - |
| Master Bedroom Door Style | Conventional Door | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Living Area Location | Center | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Sofa Material | Vinyl | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
Specs
Buy Now
More
Master Bedroom Mirror Doors
No
Master Bedroom Door Style
Conventional Door
Number Of Queen Size Beds
1
Number Of Recliner / Rockers
2
Full Size Master Bedroom Closet
No
Master Bedroom Location
Front
Number Of Convertible / Sofa Beds
1
Living Area Location
Center
Master Bedroom Shades / Curtains
Yes
Master Bedroom Flooring Type
Carpet
Sofa Material
Vinyl
Number Of Bathrooms
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Rear | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Rear
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Center
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Satellite | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Metallic | No | - | - | - |
| Screened Room | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Bunkhouse | No | - | - | - |
Specs
Buy Now
More
Satellite
No
Power Retractable Awning
Yes
Wallpaper
Yes
Metallic
No
Screened Room
No
Battery Power Converter
Yes
Refrigerator
Standard
Water Heater Tank Bypass
Yes
Interior Wood Finish
Yes
Phone Prewiring
No
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Satellite Prewiring
Yes
Air Conditioning Prewiring
Yes
Power Retractable Slideout
Yes
Washer / Dryer Prewiring
No
Heat Prewiring
Yes
Overhead Fan
Yes
Sliding Glass Door
No
Bunkhouse
No
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior
Number Of Televisions
1
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Vinyl | - | - | - |
Specs
Buy Now
More
Material
Vinyl
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Northwood Manufacturing | - | - | - |
| Year | 2017 | - | - | - |
| Make | Northwood | - | - | - |
| Display Name | Fox Mountain 255RKS | - | - | - |
| Class | Fifth Wheel | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2017 | - | - | - |
Specs
Buy Now
More
Parent Company
Northwood Manufacturing
Year
2017
Make
Northwood
Display Name
Fox Mountain 255RKS
Class
Fifth Wheel
Max Sleeping Count
4
Number of Slideouts
1
Introduction Year
2017
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this fifth wheel.
Tow-Ready Score
7.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.5
Final Tow-Ready Score
7.5
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.5
Final Storage Space
5.5
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Northwood Fox Mountain 255rks, ensure your vehicle's rated tow capacity exceeds its GVWR of 15000 lbs. With a dry weight of 6859 lbs and hitch weight of 1918 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Fifth Wheel has a dry weight of 6859 lbs and a GVWR of 15000 lbs, giving a payload capacity of 2723 lbs for gear, water, and supplies.
The approximate dimensions are length 358 in., width 96 in., and height 154 in. Always confirm clearances for garages, storage, and campsites.
The Fox Mountain 255rks includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Fox Mountain 255rks owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 15000 lbs and dry weight of 6859 lbs, the Fox Mountain 255rks is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Fifth Wheel.
The Fox Mountain 255rks features body construction with sidewalls and 2 axle(s). Its GVWR of 15000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
