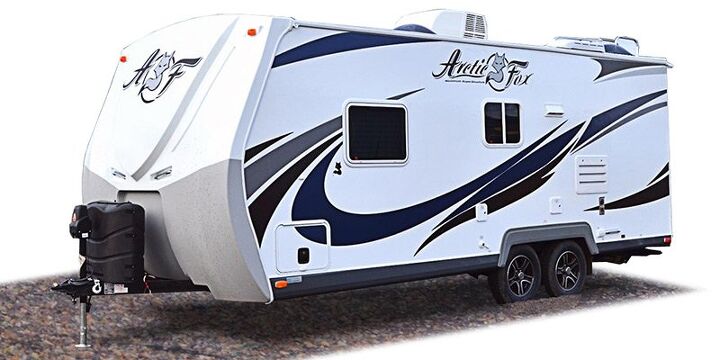

2017 Northwood Arctic Fox Classic-22g Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2017 Northwood Arctic Fox Classic-22g
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 7500 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 4678 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 550 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 2822 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 286 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 102 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 123 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
7500 lbs
Dry Weight
4678 lbs
Hitch Weight
550 lbs
Payload Capacity
2822 lbs
Length
286 in
Width
102 in
Exterior Height
123 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 46 gal | 44 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 42 gal | 42gal Grey Water Tank | Gray Water Tanks | - |
| Black Water Tank Capacity | 35 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
46 gal
Gray Water Tank Capacity
42 gal
Black Water Tank Capacity
35 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire | ST205/75R15C Full Spec | - | - | - |
| Rear Wheel Diameter | 15 | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
Specs
Buy Now
More
Rear Tire
ST205/75R15C Full Spec
Rear Wheel Diameter
15
Rear Tire Aspect Ratio
75
Wheels Composition
Aluminum
Rear Brake Type
Electric Drum
Rear Tire Width
205
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Tire Speed Rating
C
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Living Area Location | Center | - | - | - |
| Master Bedroom Door Style | Accordion | - | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Number Of Full Size Beds | 1 | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Master Bedroom Shades / Curtains
Yes
Number Of Bathrooms
1
Living Area Location
Center
Master Bedroom Door Style
Accordion
Master Bedroom Mirror Doors
No
Number Of Full Size Beds
1
Master Bedroom Location
Front
Full Size Master Bedroom Closet
No
Number Of Convertible / Sofa Beds
1
Master Bedroom Flooring Type
Vinyl
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
Specs
Buy Now
More
Kitchen Location
Center
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Rear | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Rear
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Screened Room | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Surround Sound | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Metallic | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Screened Room
No
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Refrigerator
Standard
Washer / Dryer Prewiring
No
Overhead Fan
Yes
Surround Sound
No
Bunkhouse
No
Satellite Prewiring
Yes
Power Retractable Awning
Yes
Wallpaper
Yes
Metallic
No
Sliding Glass Door
No
Battery Power Converter
Yes
Interior Wood Finish
Yes
Satellite
No
Water Heater Tank Bypass
Yes
Phone Prewiring
No
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Number Of Televisions
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Northwood Manufacturing | - | - | - |
| Year | 2017 | - | - | - |
| Make | Northwood | - | - | - |
| Display Name | Arctic Fox Classic 22G | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
Specs
Buy Now
More
Parent Company
Northwood Manufacturing
Year
2017
Make
Northwood
Display Name
Arctic Fox Classic 22G
Class
Travel Trailer
Max Sleeping Count
4
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
7.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.5
Final Tow-Ready Score
7.5
Living Space & Layout
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.5
Final Living Space & Layout
6.5
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.0
Final Storage Space
7.0
Off-Grid & Campsites
7.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.3
Final Off-Grid & Campsites
7.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Northwood Arctic Fox Classic-22g, ensure your vehicle's rated tow capacity exceeds its GVWR of 7500 lbs. With a dry weight of 4678 lbs and hitch weight of 550 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 4678 lbs and a GVWR of 7500 lbs, giving a payload capacity of 2822 lbs for gear, water, and supplies.
The approximate dimensions are length 286 in., width 102 in., and height 123 in. Always confirm clearances for garages, storage, and campsites.
The Arctic Fox Classic-22g includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Arctic Fox Classic-22g owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 7500 lbs and dry weight of 4678 lbs, the Arctic Fox Classic-22g is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Arctic Fox Classic-22g features body construction with sidewalls and 2 axle(s). Its GVWR of 7500 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
