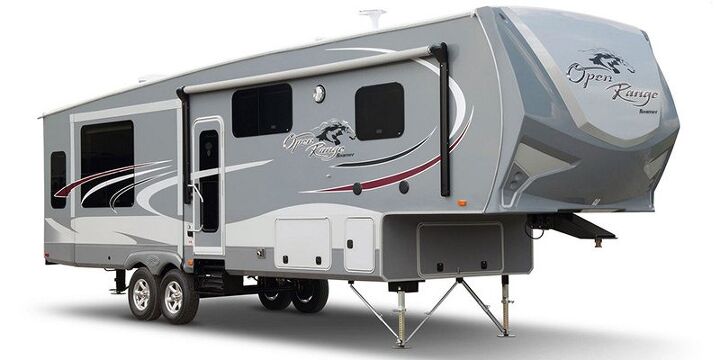

2017 Highland Ridge Open Range Roamer Rf430rls Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2017 Highland Ridge Open Range Roamer Rf430rls
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 16090 lbs | - | - | - |
| Dry Weight | 11800 lbs | - | - | - |
| Hitch Weight | 2370 lbs | - | - | - |
| Payload Capacity | 4290 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 511 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 100 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 155 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
16090 lbs
Dry Weight
11800 lbs
Hitch Weight
2370 lbs
Payload Capacity
4290 lbs
Length
511 in
Width
100 in
Exterior Height
155 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 2 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 85 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 98 gal | - | - | - |
| Black Water Tank Capacity | 41 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 3 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
2
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
85 gal
Gray Water Tank Capacity
98 gal
Black Water Tank Capacity
41 gal
Number Of Propane Tanks
3
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Wheel Diameter | 16 | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire | 16 inch Wheels Full Spec | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
Specs
Buy Now
More
Rear Wheel Diameter
16
Wheels Composition
Aluminum
Front Brake Type
Not Applicable
Rear Tire
16 inch Wheels Full Spec
Rear Brake Type
Hydraulic Disc
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 10 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
10 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Sofas | 2 | Tri-Fold Sofa | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Sofa Material | Leather | - | - | - |
| Master Bedroom Door Style | Conventional Door | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Living Area Location | Rear | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
Specs
Buy Now
More
Reclining Sofa
No
Number Of Sofas
2
Number Of Convertible / Sofa Beds
2
Master Bedroom Flooring Type
Carpet
Master Bedroom Mirror Doors
Yes
Number Of Recliner / Rockers
2
Full Size Master Bedroom Closet
Yes
Number Of Bathrooms
1
Sofa Material
Leather
Master Bedroom Door Style
Conventional Door
Number Of Queen Size Beds
1
Living Area Location
Rear
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Chairs | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Chairs
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Toilet Type
Porcelain
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 16 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
16 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Washer / Dryer Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Surround Sound | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Washer / Dryer Prewiring
Yes
Heat Prewiring
Yes
Phone Prewiring
No
Surround Sound
Yes
Bunkhouse
No
Satellite Prewiring
Yes
Power Retractable Slideout
Yes
Wallpaper
Yes
Overhead Fan
Yes
Sliding Glass Door
No
Battery Power Converter
Yes
Refrigerator
Standard
Water Heater Tank Bypass
Yes
Interior Wood Finish
Yes
Power Retractable Awning
Yes
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Screened Room
No
Air Conditioning Prewiring
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Leather | - | - | - |
Specs
Buy Now
More
Material
Leather
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Thor Industries | - | - | - |
| Year | 2017 | - | - | - |
| Make | Highland Ridge | - | - | - |
| Display Name | Open Range Roamer RF430RLS | - | - | - |
| Class | Fifth Wheel | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 4 | - | - | - |
| Introduction Year | 2015 | - | - | - |
Specs
Buy Now
More
Parent Company
Thor Industries
Year
2017
Make
Highland Ridge
Display Name
Open Range Roamer RF430RLS
Class
Fifth Wheel
Max Sleeping Count
8
Number of Slideouts
4
Introduction Year
2015
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this fifth wheel.
Tow-Ready Score
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.3
Final Tow-Ready Score
5.3
Living Space & Layout
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.0
Final Living Space & Layout
6.0
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Comfort & Features
5.8
Storage Space
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.0
Final Storage Space
7.0
Off-Grid & Campsites
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Off-Grid & Campsites
5.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Highland Ridge Open Range Roamer Rf430rls, ensure your vehicle's rated tow capacity exceeds its GVWR of 16090 lbs. With a dry weight of 11800 lbs and hitch weight of 2370 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Fifth Wheel has a dry weight of 11800 lbs and a GVWR of 16090 lbs, giving a payload capacity of 4290 lbs for gear, water, and supplies.
The approximate dimensions are length 511 in., width 100 in., and height 155 in. Always confirm clearances for garages, storage, and campsites.
The Open Range Roamer Rf430rls includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Open Range Roamer Rf430rls owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 16090 lbs and dry weight of 11800 lbs, the Open Range Roamer Rf430rls is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

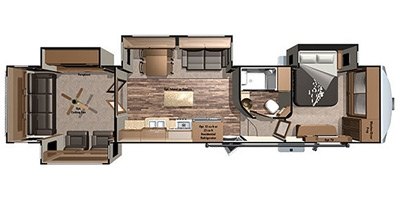

This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Fifth Wheel.
The Open Range Roamer Rf430rls features body construction with sidewalls and 2 axle(s). Its GVWR of 16090 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
