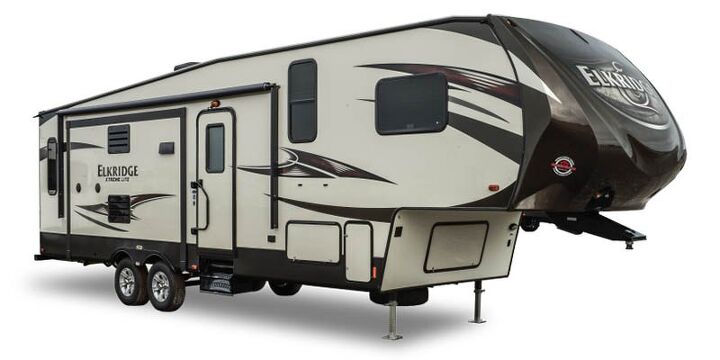

2017 Heartland Elkridge Xtreme-light-e-289 Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2017 Heartland Elkridge Xtreme-light-e-289
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 11250 lbs | - | - | - |
| Dry Weight | 8287 lbs | - | - | - |
| Hitch Weight | 1725 lbs | - | - | - |
| Length | 376 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 142 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
11250 lbs
Dry Weight
8287 lbs
Hitch Weight
1725 lbs
Length
376 in
Width
96 in
Exterior Height
142 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 47 gal | 44 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 40 gal | - | - | - |
| Black Water Tank Capacity | 40 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
47 gal
Gray Water Tank Capacity
40 gal
Black Water Tank Capacity
40 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire Width | 225 | - | - | - |
| Rear Tire | ST225/75R15D Full Spec | - | - | - |
| Rear Tire Speed Rating | D | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Wheel Diameter | 15 | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
Specs
Buy Now
More
Rear Tire Width
225
Rear Tire
ST225/75R15D Full Spec
Rear Tire Speed Rating
D
Wheels Composition
Steel
Rear Brake Type
Electric Drum
Rear Wheel Diameter
15
Rear Tire Aspect Ratio
75
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.

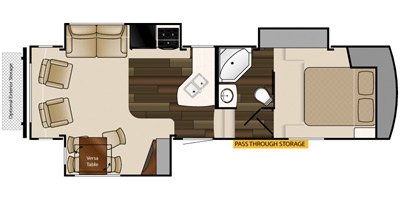

Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Rear | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Conventional Door | - | - | - |
| Sofa Material | Vinyl | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
Specs
Buy Now
More
Living Area Location
Rear
Master Bedroom Shades / Curtains
Yes
Number Of Bathrooms
1
Master Bedroom Door Style
Conventional Door
Sofa Material
Vinyl
Number Of Queen Size Beds
1
Master Bedroom Mirror Doors
Yes
Master Bedroom Location
Front
Reclining Sofa
No
Number Of Sofas
1
Full Size Master Bedroom Closet
Yes
Number Of Convertible / Sofa Beds
1
Master Bedroom Flooring Type
Carpet
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Oven Depth | 16 / 406.4 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Chairs | - | - | - |
Specs
Buy Now
More
Oven Depth
16 / 406.4 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Chairs
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 14 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
14 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Phone Prewiring | No | - | - | - |
| Surround Sound | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Screened Room
No
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Refrigerator
Standard
Washer / Dryer Prewiring
No
Phone Prewiring
No
Surround Sound
No
Bunkhouse
No
Satellite Prewiring
No
Wallpaper
Yes
Overhead Fan
Yes
Sliding Glass Door
No
Battery Power Converter
Yes
Interior Wood Finish
Yes
Satellite
No
Water Heater Tank Bypass
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Number Of Discs
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Heartland Recreational Vehicles LLC | - | - | - |
| Year | 2017 | - | - | - |
| Make | Heartland | - | - | - |
| Display Name | ElkRidge Xtreme Light E 289 | - | - | - |
| Class | Fifth Wheel | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2016 | - | - | - |
Specs
Buy Now
More
Parent Company
Heartland Recreational Vehicles LLC
Year
2017
Make
Heartland
Display Name
ElkRidge Xtreme Light E 289
Class
Fifth Wheel
Max Sleeping Count
4
Number of Slideouts
3
Introduction Year
2016
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this fifth wheel.
Tow-Ready Score
7.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.5
Final Tow-Ready Score
7.5
Living Space & Layout
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.5
Final Living Space & Layout
6.5
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2017 Heartland Elkridge Xtreme-light-e-289, ensure your vehicle's rated tow capacity exceeds its GVWR of 11250 lbs. With a dry weight of 8287 lbs and hitch weight of 1725 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Fifth Wheel has a dry weight of 8287 lbs and a GVWR of 11250 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 376 in., width 96 in., and height 142 in. Always confirm clearances for garages, storage, and campsites.
The Elkridge Xtreme-light-e-289 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Elkridge Xtreme-light-e-289 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 11250 lbs and dry weight of 8287 lbs, the Elkridge Xtreme-light-e-289 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Fifth Wheel.
The Elkridge Xtreme-light-e-289 features body construction with sidewalls and 2 axle(s). Its GVWR of 11250 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
