2016 Keystone RV Passport Ultra Lite Express 195rbwe Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2016 Keystone RV Passport Ultra Lite Express 195rbwe
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 5930 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 3847 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 350 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 2083 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 293 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 121 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 78 in | - | - | - |
Specs
Buy Now
More
GVWR
5930 lbs
Dry Weight
3847 lbs
Hitch Weight
350 lbs
Payload Capacity
2083 lbs
Length
293 in
Width
96 in
Exterior Height
121 in
Interior Height
78 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 43 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 30 gal | - | - | - |
| Black Water Tank Capacity | 30 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 40 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
43 gal
Gray Water Tank Capacity
30 gal
Black Water Tank Capacity
30 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheels Composition | Steel | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire | 205/75R 14C Full Spec | - | - | - |
| Rear Tire Width | 205 | - | - | - |
Specs
Buy Now
More
Wheels Composition
Steel
Rear Brake Type
Electric Drum
Rear Tire Speed Rating
C
Spare Tire Location
Exterior Mounted
Rear Wheel Diameter
14
Front Brake Type
Not Applicable
Rear Tire Aspect Ratio
75
Rear Tire
205/75R 14C Full Spec
Rear Tire Width
205
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Master Bedroom Door Style | Curtain | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Location | Front | - | - | - |
| Living Area Location | Center | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Sofa Material | Cloth | - | - | - |
Specs
Buy Now
More
Master Bedroom Shades / Curtains
Yes
Master Bedroom Flooring Type
Vinyl
Number Of Bathrooms
1
Number Of Sofas
1
Master Bedroom Mirror Doors
No
Master Bedroom Door Style
Curtain
Number Of Queen Size Beds
1
Master Bedroom Location
Front
Living Area Location
Center
Reclining Sofa
No
Full Size Master Bedroom Closet
No
Number Of Convertible / Sofa Beds
1
Sofa Material
Cloth
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Rear | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Rear
Bathroom Flooring Type
Vinyl
Toilet Type
Plastic
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Curtain | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Curtain
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Water Heater Tank Bypass | Yes | - | - | - |
| Satellite | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Heated | No | - | - | - |
| Power Retractable Slideout | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Screened Room | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Surround Sound | No | - | - | - |
| Metallic | No | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
Specs
Buy Now
More
Water Heater Tank Bypass
Yes
Satellite
No
Battery Power Converter
Yes
Heated
No
Power Retractable Slideout
No
TV Antenna Prewiring
Yes
Overhead Fan
Yes
Screened Room
No
Cable Prewiring
Yes
Washer / Dryer Prewiring
No
Refrigerator
Standard
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Power Retractable Awning
Yes
Surround Sound
No
Metallic
No
Satellite Prewiring
No
Bunkhouse
No
Wallpaper
Yes
Interior Wood Finish
Yes
Phone Prewiring
No
Sliding Glass Door
No
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Number Of Televisions
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Keystone RV Inc. | - | - | - |
| Year | 2016 | - | - | - |
| Make | Keystone | - | - | - |
| Display Name | Passport Ultra Lite Express 195RBWE | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Introduction Year | 2014 | - | - | - |
Specs
Buy Now
More
Parent Company
Keystone RV Inc.
Year
2016
Make
Keystone
Display Name
Passport Ultra Lite Express 195RBWE
Class
Travel Trailer
Max Sleeping Count
4
Introduction Year
2014
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
8.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+3.5
Final Tow-Ready Score
8.5
Living Space & Layout
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.5
Final Living Space & Layout
6.5
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.0
Final Storage Space
7.0
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2016 Keystone RV Passport Ultra Lite Express 195rbwe, ensure your vehicle's rated tow capacity exceeds its GVWR of 5930 lbs. With a dry weight of 3847 lbs and hitch weight of 350 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 3847 lbs and a GVWR of 5930 lbs, giving a payload capacity of 2083 lbs for gear, water, and supplies.
The approximate dimensions are length 293 in., width 96 in., and height 121 in. Always confirm clearances for garages, storage, and campsites.
The Passport Ultra Lite Express 195rbwe includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Passport Ultra Lite Express 195rbwe owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 5930 lbs and dry weight of 3847 lbs, the Passport Ultra Lite Express 195rbwe is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

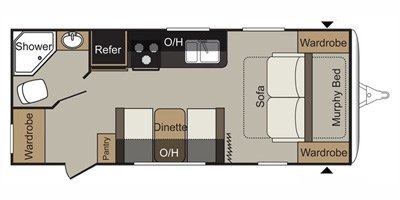

This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Passport Ultra Lite Express 195rbwe features body construction with sidewalls and 2 axle(s). Its GVWR of 5930 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
