2016 Jayco Octane T26y Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2016 Jayco Octane T26y
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 11950 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 7205 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 1070 lbs | - | - | - |
| Payload Capacity | 4745 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 369 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 102 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 146.8 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 94 in | - | - | - |
Specs
Buy Now
More
GVWR
11950 lbs
Dry Weight
7205 lbs
Hitch Weight
1070 lbs
Payload Capacity
4745 lbs
Length
369 in
Width
102 in
Exterior Height
146.8 in
Interior Height
94 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 30 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
30
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 102 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 45.4 gal | - | - | - |
| Black Water Tank Capacity | 45.4 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
102 gal
Gray Water Tank Capacity
45.4 gal
Black Water Tank Capacity
45.4 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Brake Type | Electric Drum | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire | Nitro-Filled Radial Full Spec | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
Specs
Buy Now
More
Rear Brake Type
Electric Drum
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Tire
Nitro-Filled Radial Full Spec
Wheels Composition
Aluminum
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Bathrooms | 1 | - | - | - |
| Number Of Sofas | 2 | Tri-Fold Sofa | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Master Bedroom Door Style | Curtain | - | - | - |
| Number Of Queen Size Beds | 3 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Location | Front | - | - | - |
| Living Area Location | Center | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Sofa Material | Vinyl | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
Specs
Buy Now
More
Number Of Bathrooms
1
Number Of Sofas
2
Master Bedroom Mirror Doors
No
Master Bedroom Door Style
Curtain
Number Of Queen Size Beds
3
Master Bedroom Location
Front
Living Area Location
Center
Full Size Master Bedroom Closet
No
Number Of Convertible / Sofa Beds
1
Sofa Material
Vinyl
Master Bedroom Flooring Type
Vinyl
Master Bedroom Shades / Curtains
Yes
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen Table Configuration | Pedestal Table | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Kitchen Table Configuration
Pedestal Table
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Plastic
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 16 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Curtain | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
16 ft/m
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Water Heater Tank Bypass | Yes | - | - | - |
| Heated | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Overhead Fan | No | Overhead Fan | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Metallic | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Screened Room | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
Specs
Buy Now
More
Water Heater Tank Bypass
Yes
Heated
No
Refrigerator
Standard
Cable Prewiring
Yes
Overhead Fan
No
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Air Conditioning Prewiring
Yes
Washer / Dryer Prewiring
No
Heat Prewiring
Yes
Power Retractable Awning
Yes
Bunkhouse
No
Metallic
No
Sliding Glass Door
No
Interior Wood Finish
Yes
Satellite
No
Wallpaper
Yes
Phone Prewiring
No
Screened Room
No
Battery Power Converter
Yes
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Cargo Area Auxiliary Gas Tank Capacity | 24 / 90.8 gal/lbs | - | - | - |
| Cargo Area Width | 96 / 2438.4 in | - | - | - |
| Cargo Area Height | 94 / 2387.6 in | - | - | - |
| Cargo Area Rear Door Style | Ramp Door | - | - | - |
| Cargo Area Flooring Type | Vinyl | - | - | - |
| Cargo Area Length | 144 / 3657.6 in | - | - | - |
Specs
Buy Now
More
Cargo Area Auxiliary Gas Tank Capacity
24 / 90.8 gal/lbs
Cargo Area Width
96 / 2438.4 in
Cargo Area Height
94 / 2387.6 in
Cargo Area Rear Door Style
Ramp Door
Cargo Area Flooring Type
Vinyl
Cargo Area Length
144 / 3657.6 in
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Jayco | - | - | - |
| Year | 2016 | - | - | - |
| Make | Jayco | - | - | - |
| Display Name | Octane T26Y | - | - | - |
| Class | Toy Hauler | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
Specs
Buy Now
More
Parent Company
Jayco
Year
2016
Make
Jayco
Display Name
Octane T26Y
Class
Toy Hauler
Max Sleeping Count
8
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this toy hauler.
Tow-Ready Score
7.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+2.3
Final Tow-Ready Score
7.3
Living Space & Layout
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.0
Final Living Space & Layout
5.0
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.3
Final Comfort & Features
5.3
Storage Space
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+2.0
Final Storage Space
7.0
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2016 Jayco Octane T26y, ensure your vehicle's rated tow capacity exceeds its GVWR of 11950 lbs. With a dry weight of 7205 lbs and hitch weight of 1070 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Toy Hauler has a dry weight of 7205 lbs and a GVWR of 11950 lbs, giving a payload capacity of 4745 lbs for gear, water, and supplies.
The approximate dimensions are length 369 in., width 102 in., and height 147 in. Always confirm clearances for garages, storage, and campsites.
The Octane T26y includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Octane T26y owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 11950 lbs and dry weight of 7205 lbs, the Octane T26y is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

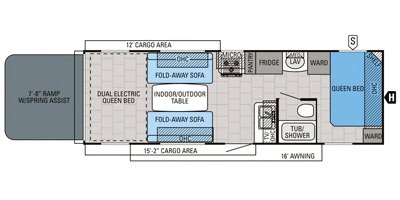

This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Toy Hauler.
The Octane T26y features body construction with sidewalls and 2 axle(s). Its GVWR of 11950 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
