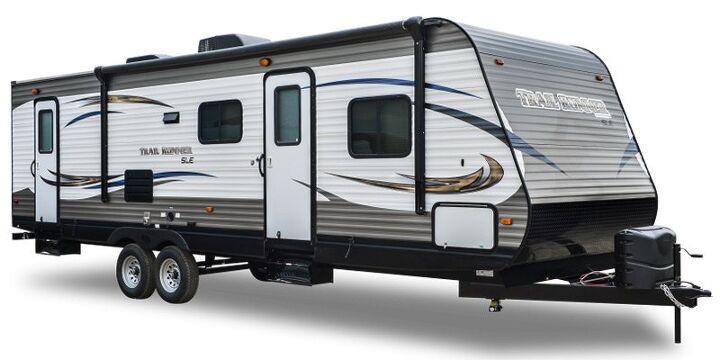

2016 Heartland Trail Runner Tr-27-fqbs Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2016 Heartland Trail Runner Tr-27-fqbs
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 7700 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 6081 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 705 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 1619 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 367 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 134 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 80 in | - | - | - |
Specs
Buy Now
More
GVWR
7700 lbs
Dry Weight
6081 lbs
Hitch Weight
705 lbs
Payload Capacity
1619 lbs
Length
367 in
Width
96 in
Exterior Height
134 in
Interior Height
80 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 45 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
45
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 42 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 35 gal | - | - | - |
| Black Water Tank Capacity | 35 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
42 gal
Gray Water Tank Capacity
35 gal
Black Water Tank Capacity
35 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire Width | 205 | - | - | - |
| Rear Tire | ST205/75R15C Full Spec | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Wheel Diameter | 15 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
Specs
Buy Now
More
Rear Tire Width
205
Rear Tire
ST205/75R15C Full Spec
Rear Tire Speed Rating
C
Rear Brake Type
Electric Drum
Rear Wheel Diameter
15
Wheels Composition
Steel
Rear Tire Aspect Ratio
75
Front Brake Type
Not Applicable
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Double Beds | 2 | - | - | - |
| Living Area Location | Center | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Accordion | - | - | - |
Specs
Buy Now
More
Number Of Double Beds
2
Living Area Location
Center
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Sofa Material
Cloth
Number Of Convertible / Sofa Beds
2
Master Bedroom Mirror Doors
No
Master Bedroom Flooring Type
Vinyl
Number Of Queen Size Beds
1
Number Of Sofas
1
Full Size Master Bedroom Closet
No
Number Of Bathrooms
1
Master Bedroom Door Style
Accordion
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Oven Depth | 20 / 508 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
Specs
Buy Now
More
Oven Depth
20 / 508 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Bench Seats
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Rear
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 17 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Aluminum | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Curtain | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Awning Length
17 ft/m
Number of Awnings
1
Number Of Axles
2
Sidewall Construction
Aluminum
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Phone Prewiring | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Bunkhouse | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Satellite Prewiring | No | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Metallic | No | - | - | - |
| Satellite | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
Specs
Buy Now
More
Phone Prewiring
No
Wallpaper
Yes
Cable Prewiring
Yes
Screened Room
No
Air Conditioning Prewiring
Yes
Refrigerator
Standard
Water Heater Tank Bypass
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Bunkhouse
Yes
Overhead Fan
Yes
Satellite Prewiring
No
Power Retractable Slideout
Yes
Washer / Dryer Prewiring
No
Sliding Glass Door
No
Battery Power Converter
Yes
Metallic
No
Satellite
No
Interior Wood Finish
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Heartland Recreational Vehicles LLC | - | - | - |
| Year | 2016 | - | - | - |
| Make | Heartland | - | - | - |
| Display Name | Trail Runner TR 27 FQBS | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 10 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2013 | - | - | - |
Specs
Buy Now
More
Parent Company
Heartland Recreational Vehicles LLC
Year
2016
Make
Heartland
Display Name
Trail Runner TR 27 FQBS
Class
Travel Trailer
Max Sleeping Count
10
Number of Slideouts
1
Introduction Year
2013
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.0
Final Tow-Ready Score
6.0
Living Space & Layout
4.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
-0.2
Final Living Space & Layout
4.8
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.5
Final Storage Space
5.5
Off-Grid & Campsites
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Off-Grid & Campsites
5.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2016 Heartland Trail Runner Tr-27-fqbs, ensure your vehicle's rated tow capacity exceeds its GVWR of 7700 lbs. With a dry weight of 6081 lbs and hitch weight of 705 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 6081 lbs and a GVWR of 7700 lbs, giving a payload capacity of 1619 lbs for gear, water, and supplies.
The approximate dimensions are length 367 in., width 96 in., and height 134 in. Always confirm clearances for garages, storage, and campsites.
The Trail Runner Tr-27-fqbs includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Trail Runner Tr-27-fqbs owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 7700 lbs and dry weight of 6081 lbs, the Trail Runner Tr-27-fqbs is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

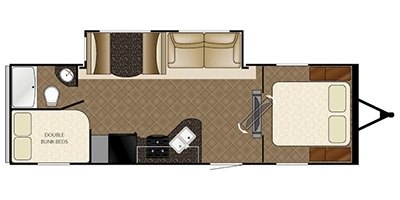

This floorplan sleeps up to 10 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Trail Runner Tr-27-fqbs features body construction with sidewalls and 2 axle(s). Its GVWR of 7700 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
