2015 Highland Ridge Open Range Journeyer Jt337rls Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2015 Highland Ridge Open Range Journeyer Jt337rls
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Dry Weight | 8870 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 795 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 3925 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 436 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 100 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 145 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
Dry Weight
8870 lbs
Hitch Weight
795 lbs
Payload Capacity
3925 lbs
Length
436 in
Width
100 in
Exterior Height
145 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 85 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 57 gal | - | - | - |
| Black Water Tank Capacity | 41 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
85 gal
Gray Water Tank Capacity
57 gal
Black Water Tank Capacity
41 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheels Composition | Aluminum | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire | 16 Inch Radial Full Spec | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
Specs
Buy Now
More
Wheels Composition
Aluminum
Rear Wheel Diameter
16
Front Brake Type
Not Applicable
Rear Tire
16 Inch Radial Full Spec
Rear Brake Type
Electric Drum
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 10 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
10 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Sofa Material | Leather | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Living Area Location | Rear | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Door Style | Conventional Door | - | - | - |
Specs
Buy Now
More
Number Of Queen Size Beds
1
Master Bedroom Mirror Doors
Yes
Master Bedroom Location
Front
Number Of Recliner / Rockers
2
Number Of Convertible / Sofa Beds
1
Sofa Material
Leather
Master Bedroom Flooring Type
Carpet
Living Area Location
Rear
Full Size Master Bedroom Closet
Yes
Master Bedroom Shades / Curtains
Yes
Number Of Bathrooms
1
Number Of Sofas
1
Master Bedroom Door Style
Conventional Door
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Size | Mid-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Chairs | - | - | - |
| Oven Depth | 22 / 558.8 in | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Refrigerator Size
Mid-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Chairs
Oven Depth
22 / 558.8 in
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Center
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 16 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
16 ft/m
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Washer / Dryer Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Wallpaper | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Phone Prewiring | No | - | - | - |
| Screened Room | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Heated | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Washer / Dryer Prewiring
Yes
Cable Prewiring
Yes
Power Retractable Awning
Yes
Surround Sound
Yes
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Refrigerator
Standard
Wallpaper
Yes
Bunkhouse
No
Phone Prewiring
No
Screened Room
No
Interior Wood Finish
Yes
Water Heater Tank Bypass
Yes
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Battery Power Converter
Yes
Heated
No
Satellite Prewiring
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
Specs
Buy Now
More
Number Of Televisions
1
Number Of Discs
1
Speaker Location
Interior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Leather | - | - | - |
Specs
Buy Now
More
Material
Leather
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Jayco | - | - | - |
| Year | 2015 | - | - | - |
| Make | Highland Ridge | - | - | - |
| Display Name | Open Range Journeyer JT337RLS | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2015 | - | - | - |
Specs
Buy Now
More
Parent Company
Jayco
Year
2015
Make
Highland Ridge
Display Name
Open Range Journeyer JT337RLS
Class
Travel Trailer
Max Sleeping Count
4
Number of Slideouts
3
Introduction Year
2015
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
4.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
-0.2
Final Tow-Ready Score
4.8
Living Space & Layout
8.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+3.0
Final Living Space & Layout
8.0
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
7.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.8
Final Off-Grid & Campsites
7.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2015 Highland Ridge Open Range Journeyer Jt337rls, ensure your vehicle's rated tow capacity exceeds its GVWR of lbs. With a dry weight of 8870 lbs and hitch weight of 795 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 8870 lbs and a GVWR of lbs, giving a payload capacity of 3925 lbs for gear, water, and supplies.
The approximate dimensions are length 436 in., width 100 in., and height 145 in. Always confirm clearances for garages, storage, and campsites.
The Open Range Journeyer Jt337rls includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Open Range Journeyer Jt337rls owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of lbs and dry weight of 8870 lbs, the Open Range Journeyer Jt337rls is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

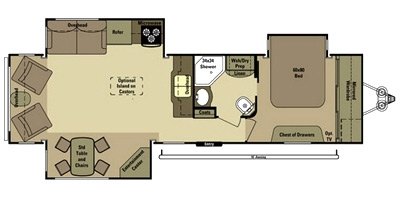

This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Open Range Journeyer Jt337rls features body construction with sidewalls and 2 axle(s). Its GVWR of lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
