2013 Roadtrek Ranger Rt Specs
1
Can Your Vehicle Tow This?
Enter your vehicle to check manufacturer-rated limits
Loading your garage...
2
Get Your Real Numbers
Tow rating is one limit — payload is what overloads first
The full calculator factors in:
Tongue weight vs payload
Water tanks (50 gal = 417 lbs)
Propane (40 lbs full)
Passengers in truck
Gear, bikes, coolers, tools
Cargo weight distribution
Your truck's payload limit carries tongue weight, passengers, and everything in the bed — that's the number that overloads first. The calculator checks both tow and payload with real gear weights.
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 13000 lbs | - | - | - |
| Payload Capacity | 1700 lbs | - | - | |
| Length | 245 in | - | ||
| Width | 84 in | - | ||
| Exterior Height | 105 in | - | ||
| Interior Height | 73 in | - | ||
| Tongue Weight | 1000 / 450 lbs | - | - | - |
| Towing Capacity | 5600 / 2550 lbs | - | - | - |
Specs
Buy Now
More
GVWR
13000 lbs
Payload Capacity
1700 lbs
Length
245 in
Width
84 in
Exterior Height
105 in
Interior Height
73 in
Tongue Weight
1000 / 450 lbs
Towing Capacity
5600 / 2550 lbs
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 45 | - | ||
| Shore Power | 30 Amps | - | ||
| Battery Type | 12V Lead-Acid | Top 5 | ||
| Solar Pre-Wired | Optional | - | ||
| Inverter | Optional | - |
Specs
Buy Now
More
Battery Converter Amps
45
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | ||
| Number Of Gray Water Holding Tanks | 1 | - | ||
| Number Of Black Water Holding Tanks | 1 | - | ||
| Fresh Water Tank Capacity | 18 gal | - | ||
| Gray Water Tank Capacity | 23 gal | - | ||
| Black Water Tank Capacity | 10 gal | - | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
18 gal
Gray Water Tank Capacity
23 gal
Black Water Tank Capacity
10 gal
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Brake Type | Hydraulic Disc | - | - | - |
| Front Tire | LT245/75 R16E Full Spec | - | - | - |
| Front Tire Aspect Ratio | 75 | - | - | - |
| Front Tire Width | 245 | - | - | - |
| Front Wheel Diameter | 16 | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
| Rear Tire | LT245/75 R16E Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire Width | 245 | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Spare Tire Location | Interior Mounted | - | ||
| Wheelbase | 155 / 3940 in | - | - | - |
| Wheels Composition | Steel | - | - | - |
Specs
Buy Now
More
Front Brake Type
Hydraulic Disc
Front Tire
LT245/75 R16E Full Spec
Front Tire Aspect Ratio
75
Front Tire Width
245
Front Wheel Diameter
16
Rear Brake Type
Hydraulic Disc
Rear Tire
LT245/75 R16E Full Spec
Rear Tire Aspect Ratio
75
Rear Tire Width
245
Rear Wheel Diameter
16
Spare Tire Location
Interior Mounted
Wheelbase
155 / 3940 in
Wheels Composition
Steel
Tires & Wheels Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | - | ||
| Water Heater Tank Capacity | 2.5 g | - | - | |
| Water Heater Pump Power Mode | Electrical | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
2.5 g
Water Heater Pump Power Mode
Electrical
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Rear | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Number Of Sofas | 1 | - | - | |
| Sofa Material | Cloth | - | - | - |
Specs
Buy Now
More
Living Area Location
Rear
Number Of Convertible / Sofa Beds
1
Number Of Sofas
1
Sofa Material
Cloth
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Kitchen Location | Center | - | - | - |
| Kitchen Table Configuration | Pedestal Table | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
| Refrigerator Power Mode | Electric | - | - | - |
| Refrigerator Size | Compact | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Location
Center
Kitchen Table Configuration
Pedestal Table
Number Of Oven Burners
2
Refrigerator Power Mode
Electric
Refrigerator Size
Compact
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Bathroom Location | Center | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Toilet Type | Plastic | Top 5 |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Number Of Bathrooms
1
Toilet Type
Plastic
Bathroom Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Axles | 1 | - | - | - |
| Number of Doors | 1 | - | ||
| Door Type | Curtain | - |
Specs
Buy Now
More
Number Of Axles
1
Number of Doors
1
Door Type
Curtain
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | ||
| Battery Power Converter | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Heated | No | - | ||
| Interior Wood Finish | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Overhead Fan | No | - | - | |
| Phone Prewiring | No | - | - | - |
| Power Adjustable Seat | No | - | - | - |
| Power Retractable Slideout | No | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Satellite | No | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Seat Armrests | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Supercharged | No | - | - | - |
| Surround Sound | No | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Turbocharged | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Wallpaper | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Water Heater Tank Bypass | No | - | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Battery Power Converter
Yes
Bunkhouse
No
Cable Prewiring
Yes
Heat Prewiring
Yes
Recommended
FOGATTI RV Furnace 35,000 BTU High-Capacity - Quiet Thermostat Controlled RV Heater for Motorhome, Camper & Travel Trailer
Interior Wood Finish
Yes
Overdrive
Yes
Overhead Fan
No
Phone Prewiring
No
Power Adjustable Seat
No
Power Retractable Slideout
No
Reclining Seats
Yes
Refrigerator
Standard
Satellite
No
Satellite Prewiring
No
Seat Armrests
Yes
Sliding Glass Door
No
Supercharged
No
Surround Sound
No
Swivel Seats
Yes
Turbocharged
No
TV Antenna Prewiring
Yes
Wallpaper
No
Washer / Dryer Prewiring
No
Water Heater Tank Bypass
No
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Rows | 1 | - | - | - |
| Number Of Seats | 2 | - | - | - |
| Seat Material | Cloth | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Seat Type | Bucket | - | - | - |
Specs
Buy Now
More
Number Of Rows
1
Number Of Seats
2
Seat Material
Cloth
Seat Specifications
Standard
Seat Type
Bucket
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Storage Capacity | 62 / 397.2 / 1750 cuft/gal/l | - | - | - |
Specs
Buy Now
More
Storage Capacity
62 / 397.2 / 1750 cuft/gal/l
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Brand | Chevrolet | - | - | - |
| Chassis Model | Express 2500 | - | - | - |
Specs
Buy Now
More
Chassis Brand
Chevrolet
Chassis Model
Express 2500
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Driveline Type | 4X2 | - | - | - |
| Number Of Speeds | 6 | - | - | - |
| Transmission Type | Automatic | - | - | - |
Specs
Buy Now
More
Driveline Type
4X2
Number Of Speeds
6
Transmission Type
Automatic
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Carburetion | Standard | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Cylinders | 8 | - | - | - |
| Engine Brand Name | Vortec® | - | - | - |
| Engine Type | V8 | - | - | - |
| Horsepower | 285 bhp | - | - | - |
| Horsepower RPM | 5200 | - | - | - |
| Torque | 398 Nm | - | - | - |
| Torque RPM | 4000 | - | - | - |
Specs
Buy Now
More
Carburetion
Standard
Carburetion Type
Fuel Injected
Cylinders
8
Engine Brand Name
Vortec®
Engine Type
V8
Horsepower
285 bhp
Horsepower RPM
5200
Torque
398 Nm
Torque RPM
4000
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior | - | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 31 / 117 gal/l | - | - | |
| Fuel Type | Gas | - | - |
Specs
Buy Now
More
Fuel Capacity
31 / 117 gal/l
Fuel Type
Gas
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Roadtrek Motorhomes Inc. | - | - | - |
| Year | 2013 | - | - | - |
| Make | Roadtrek | - | - | - |
| Display Name | Ranger RT | - | - | - |
| Class | Class B | - | - | - |
| Max Sleeping Count | 2 | - | - | - |
| Introduction Year | 2013 | - | - | - |
Specs
Buy Now
More
Parent Company
Roadtrek Motorhomes Inc.
Year
2013
Make
Roadtrek
Display Name
Ranger RT
Class
Class B
Max Sleeping Count
2
Introduction Year
2013
Essential Upgrades for the 2013 Roadtrek Ranger Rt
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class b.
Drivability & Handling
8.3/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+3.3
Final Drivability & Handling
8.3
Living Space & Layout
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+0.0
Final Living Space & Layout
5.0
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Class B class averages
+1.0
Final Off-Grid & Campsites
6.0
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2013 Roadtrek Ranger Rt, ensure your vehicle's rated tow capacity exceeds its GVWR of 13000 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class B has a dry weight of lbs and a GVWR of 13000 lbs, giving a payload capacity of 1700 lbs for gear, water, and supplies.
The approximate dimensions are length 245 in., width 84 in., and height 105 in. Always confirm clearances for garages, storage, and campsites.
The Ranger Rt includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Ranger Rt owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 13000 lbs and dry weight of lbs, the Ranger Rt is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

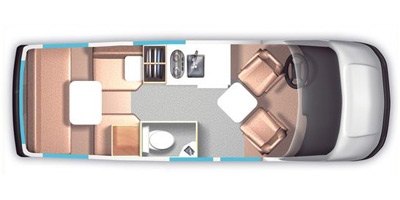

This floorplan sleeps up to 2 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class B.
The Ranger Rt features body construction with sidewalls and 1 axle(s). Its GVWR of 13000 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
Leave the Noise Behind.
Reconnect Outdoors.
Our mission is to help people make well-informed RV buying decisions, so they can leave the noise and screens behind, reconnect with family, and create unforgettable memories in the great outdoors.
Free tools. No sales pressure. Just better decisions.
