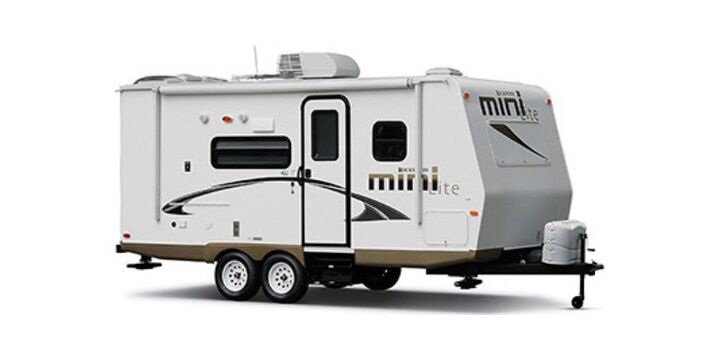

2013 Forest River RV Rockwood Mini Lite 1809s Specs
1
Can Your Vehicle Tow This?
Enter your vehicle to check manufacturer-rated limits
Loading your garage...
2
Get Your Real Numbers
Tow rating is one limit — payload is what overloads first
The full calculator factors in:
Tongue weight vs payload
Water tanks (50 gal = 417 lbs)
Propane (40 lbs full)
Passengers in truck
Gear, bikes, coolers, tools
Cargo weight distribution
Your truck's payload limit carries tongue weight, passengers, and everything in the bed — that's the number that overloads first. The calculator checks both tow and payload with real gear weights.
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Dry Weight | 3476 lbs | - | ||
| Hitch Weight | 250 lbs | - | ||
| Payload Capacity | 1136 lbs | - | ||
| Length | 240 in | - | ||
| Width | 96 in | - | ||
| Exterior Height | 109 in | - | ||
| Interior Height | 80 in | - |
Specs
Buy Now
More
Dry Weight
3476 lbs
Hitch Weight
250 lbs
Payload Capacity
1136 lbs
Length
240 in
Width
96 in
Exterior Height
109 in
Interior Height
80 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | ||
| Shore Power | 30 Amps | - | ||
| Battery Type | 12V Lead-Acid | Top 5 | ||
| Solar Pre-Wired | Optional | - | ||
| Inverter | Optional | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | ||
| Number Of Gray Water Holding Tanks | 1 | - | ||
| Number Of Black Water Holding Tanks | 1 | - | ||
| Fresh Water Tank Capacity | 36 gal | - | ||
| Gray Water Tank Capacity | 30 gal | - | ||
| Black Water Tank Capacity | 30 gal | - | - | |
| Number Of Propane Tanks | 2 | - | ||
| Propane Tank Capacity | 40 lbs | - | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
36 gal
Gray Water Tank Capacity
30 gal
Black Water Tank Capacity
30 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Brake Type | Not Applicable | - | - | - |
| Rear Brake Type | Electric Drum | - | ||
| Rear Tire | 14 inch Full Spec | - | - | - |
| Rear Tire Diameter | 14 in | - | - | - |
| Spare Tire Location | Exterior Mounted | - | ||
| Wheels Composition | Steel | - | - | - |
Specs
Buy Now
More
Front Brake Type
Not Applicable
Rear Brake Type
Electric Drum
Rear Tire
14 inch Full Spec
Rear Tire Diameter
14 in
Spare Tire Location
Exterior Mounted
Wheels Composition
Steel
Tires & Wheels Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | - | ||
| Water Heater Tank Capacity | 6 g | - | ||
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Center | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Number Of Full Size Beds | 1 | - | - | - |
| Number Of Sofas | 1 | - | - | |
| Sofa Material | Cloth | - | - | - |
Specs
Buy Now
More
Living Area Location
Center
Number Of Convertible / Sofa Beds
1
Number Of Full Size Beds
1
Number Of Sofas
1
Sofa Material
Cloth
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Kitchen Location | Center | - | - | - |
| Kitchen Table Configuration | Pedestal Table | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Location
Center
Kitchen Table Configuration
Pedestal Table
Number Of Oven Burners
3
Refrigerator Power Mode
Electric / Propane
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Bathroom Location | Rear | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Toilet Type | Plastic | Top 5 |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Bathroom Location
Rear
Number Of Bathrooms
1
Toilet Type
Plastic
Bathroom Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | - | ||
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | ||
| Door Type | Curtain | - | ||
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Curtain
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Prewiring | Yes | - | ||
| Battery Power Converter | Yes | - | - | - |
| Bunkhouse | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Heated | Yes | - | ||
| Interior Wood Finish | Yes | - | - | - |
| Metallic | No | - | - | - |
| Overhead Fan | Yes | - | - | |
| Power Retractable Slideout | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Surround Sound | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
Air Conditioning Prewiring
Yes
Battery Power Converter
Yes
Bunkhouse
No
Cable Prewiring
Yes
Heat Prewiring
Yes
Recommended
FOGATTI RV Furnace 35,000 BTU High-Capacity - Quiet Thermostat Controlled RV Heater for Motorhome, Camper & Travel Trailer
Interior Wood Finish
Yes
Metallic
No
Overhead Fan
Yes
Power Retractable Slideout
Yes
Refrigerator
Standard
Satellite Prewiring
Yes
Sliding Glass Door
No
Surround Sound
No
TV Antenna Prewiring
Yes
Wallpaper
Yes
Washer / Dryer Prewiring
No
Water Heater Tank Bypass
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Number Of Televisions | 1 | - | ||
| Speaker Location | Interior / Exterior | - | - |
Specs
Buy Now
More
Number Of Discs
1
Number Of Televisions
1
Speaker Location
Interior / Exterior
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Forest River | - | - | - |
| Year | 2013 | - | - | - |
| Make | Forest River | - | - | - |
| Display Name | Rockwood Mini Lite 1809S | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
Specs
Buy Now
More
Parent Company
Forest River
Year
2013
Make
Forest River
Display Name
Rockwood Mini Lite 1809S
Class
Travel Trailer
Max Sleeping Count
4
Number of Slideouts
1
Essential Upgrades for the 2013 Forest River RV Rockwood Mini Lite 1809s
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.0
Final Tow-Ready Score
6.0
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2013 Forest River RV Rockwood Mini Lite 1809s, ensure your vehicle's rated tow capacity exceeds its GVWR of lbs. With a dry weight of 3476 lbs and hitch weight of 250 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 3476 lbs and a GVWR of lbs, giving a payload capacity of 1136 lbs for gear, water, and supplies.
The approximate dimensions are length 240 in., width 96 in., and height 109 in. Always confirm clearances for garages, storage, and campsites.
The Rockwood Mini Lite 1809s includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Rockwood Mini Lite 1809s owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of lbs and dry weight of 3476 lbs, the Rockwood Mini Lite 1809s is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Rockwood Mini Lite 1809s features body construction with sidewalls and 2 axle(s). Its GVWR of lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
