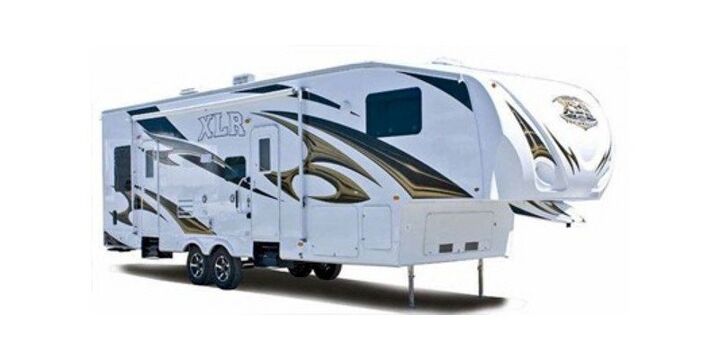

2011 Forest River RV XLR Viper-305v10 Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2011 Forest River RV XLR Viper-305v10
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 13730 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 9649 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 1730 lbs | - | - | - |
| Payload Capacity | 4081 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 432 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 102 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 158 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
13730 lbs
Dry Weight
9649 lbs
Hitch Weight
1730 lbs
Payload Capacity
4081 lbs
Length
432 in
Width
102 in
Exterior Height
158 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 100 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 64 gal | - | - | - |
| Black Water Tank Capacity | 32 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
100 gal
Gray Water Tank Capacity
64 gal
Black Water Tank Capacity
32 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheels Composition | Aluminum | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Rear Tire | 16 Inch Full Spec | - | - | - |
Specs
Buy Now
More
Wheels Composition
Aluminum
Rear Wheel Diameter
16
Rear Brake Type
Electric Drum
Spare Tire Location
Exterior Mounted
Rear Tire
16 Inch Full Spec
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Living Area Location | Center | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Bathrooms | 1 | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Master Bedroom Door Style | Conventional Door | - | - | - |
| Number Of Full Size Beds | 1 | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
Specs
Buy Now
More
Number Of Convertible / Sofa Beds
1
Master Bedroom Mirror Doors
Yes
Master Bedroom Flooring Type
Carpet
Living Area Location
Center
Full Size Master Bedroom Closet
Yes
Number Of Queen Size Beds
1
Number Of Bathrooms
1
Sofa Material
Cloth
Master Bedroom Door Style
Conventional Door
Number Of Full Size Beds
1
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Number Of Sofas
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Refrigerator Power Mode
Electric / Propane
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Number Of Oven Burners
3
Refrigerator Size
Mid-Size
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 18 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
18 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Washer / Dryer Prewiring | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Power Retractable Awning | No | - | - | - |
| Surround Sound | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Wallpaper | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Satellite | No | - | - | - |
Specs
Buy Now
More
Washer / Dryer Prewiring
No
Bunkhouse
No
Power Retractable Awning
No
Surround Sound
Yes
Refrigerator
Standard
Wallpaper
Yes
Battery Power Converter
Yes
Overhead Fan
Yes
Sliding Glass Door
No
Interior Wood Finish
Yes
Water Heater Tank Bypass
Yes
Cable Prewiring
Yes
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Satellite
No
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Cargo Area Rear Door Style | Ramp Door | - | - | - |
| Cargo Area Length | 120 / 3048 in | - | - | - |
Specs
Buy Now
More
Cargo Area Rear Door Style
Ramp Door
Cargo Area Length
120 / 3048 in
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Number Of Televisions
1
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Forest River Inc. | - | - | - |
| Year | 2011 | - | - | - |
| Make | Forest River | - | - | - |
| Display Name | XLR Viper 305V10 | - | - | - |
| Class | Toy Hauler | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 2 | - | - | - |
Specs
Buy Now
More
Parent Company
Forest River Inc.
Year
2011
Make
Forest River
Display Name
XLR Viper 305V10
Class
Toy Hauler
Max Sleeping Count
8
Number of Slideouts
2
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this toy hauler.
Tow-Ready Score
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+1.0
Final Tow-Ready Score
6.0
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.5
Final Storage Space
5.5
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2011 Forest River RV XLR Viper-305v10, ensure your vehicle's rated tow capacity exceeds its GVWR of 13730 lbs. With a dry weight of 9649 lbs and hitch weight of 1730 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Toy Hauler has a dry weight of 9649 lbs and a GVWR of 13730 lbs, giving a payload capacity of 4081 lbs for gear, water, and supplies.
The approximate dimensions are length 432 in., width 102 in., and height 158 in. Always confirm clearances for garages, storage, and campsites.
The XLR Viper-305v10 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many XLR Viper-305v10 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 13730 lbs and dry weight of 9649 lbs, the XLR Viper-305v10 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

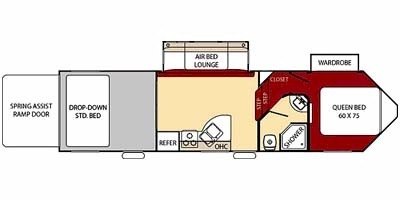

This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Toy Hauler.
The XLR Viper-305v10 features body construction with sidewalls and 2 axle(s). Its GVWR of 13730 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
