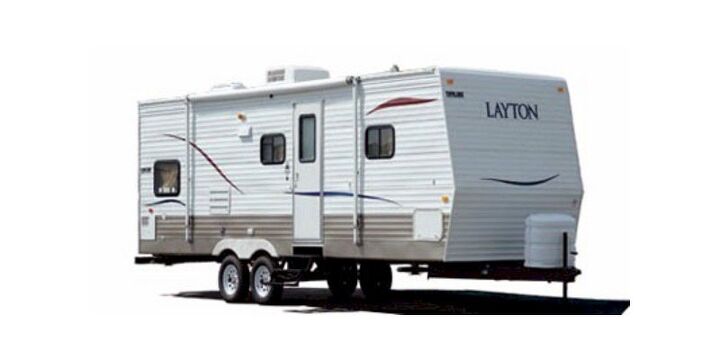

2010 Skyline Layton Limited 247 Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2010 Skyline Layton Limited 247
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 6200 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 4100 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 475 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 1925 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 337 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 119 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 76 in | - | - | - |
Specs
Buy Now
More
GVWR
6200 lbs
Dry Weight
4100 lbs
Hitch Weight
475 lbs
Payload Capacity
1925 lbs
Length
337 in
Width
96 in
Exterior Height
119 in
Interior Height
76 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 36 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 31 gal | - | - | - |
| Black Water Tank Capacity | 31 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 40 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
36 gal
Gray Water Tank Capacity
31 gal
Black Water Tank Capacity
31 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Wheel Diameter | 14 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Rear Tire | ST205/75C R14 Full Spec | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
Specs
Buy Now
More
Rear Wheel Diameter
14
Rear Brake Type
Electric Drum
Rear Tire Aspect Ratio
75
Wheels Composition
Steel
Rear Tire Width
205
Rear Tire
ST205/75C R14 Full Spec
Rear Tire Speed Rating
C
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Curtain | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Living Area Location | Center | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Number Of Bunk Beds | 1 | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Number Of Double Beds | 1 | - | - | - |
Specs
Buy Now
More
Number Of Bathrooms
1
Master Bedroom Door Style
Curtain
Master Bedroom Shades / Curtains
Yes
Living Area Location
Center
Number Of Convertible / Sofa Beds
2
Master Bedroom Location
Front
Sofa Material
Cloth
Number Of Queen Size Beds
1
Master Bedroom Mirror Doors
No
Number Of Bunk Beds
1
Full Size Master Bedroom Closet
No
Master Bedroom Flooring Type
Vinyl
Number Of Sofas
1
Number Of Double Beds
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
Specs
Buy Now
More
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Plastic
Bathroom Location
Rear
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Sheet Metal | - | - | - |
| Number of Doors | 1 | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Number Of Axles
2
Sidewall Construction
Sheet Metal
Number of Doors
1
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Cable Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Interior Wood Finish | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Cable Prewiring
Yes
Refrigerator
Standard
Washer / Dryer Prewiring
No
Heat Prewiring
Yes
Sliding Glass Door
No
Battery Power Converter
Yes
Phone Prewiring
No
Wallpaper
Yes
Satellite Prewiring
No
Water Heater Tank Bypass
Yes
Air Conditioning Prewiring
Yes
Overhead Fan
Yes
Interior Wood Finish
Yes
TV Antenna Prewiring
Yes
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Skyline Corporation | - | - | - |
| Year | 2010 | - | - | - |
| Make | Skyline | - | - | - |
| Display Name | Layton Limited 247 | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 9 | - | - | - |
Specs
Buy Now
More
Parent Company
Skyline Corporation
Year
2010
Make
Skyline
Display Name
Layton Limited 247
Class
Travel Trailer
Max Sleeping Count
9
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.0
Final Tow-Ready Score
7.0
Living Space & Layout
4.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
-0.5
Final Living Space & Layout
4.5
Comfort & Features
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Comfort & Features
5.0
Storage Space
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.0
Final Storage Space
6.0
Off-Grid & Campsites
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Off-Grid & Campsites
5.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2010 Skyline Layton Limited 247, ensure your vehicle's rated tow capacity exceeds its GVWR of 6200 lbs. With a dry weight of 4100 lbs and hitch weight of 475 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 4100 lbs and a GVWR of 6200 lbs, giving a payload capacity of 1925 lbs for gear, water, and supplies.
The approximate dimensions are length 337 in., width 96 in., and height 119 in. Always confirm clearances for garages, storage, and campsites.
The Layton Limited 247 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Layton Limited 247 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 6200 lbs and dry weight of 4100 lbs, the Layton Limited 247 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 9 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Layton Limited 247 features body construction with sidewalls and 2 axle(s). Its GVWR of 6200 lbs ensures strength without excessive towing weight.
