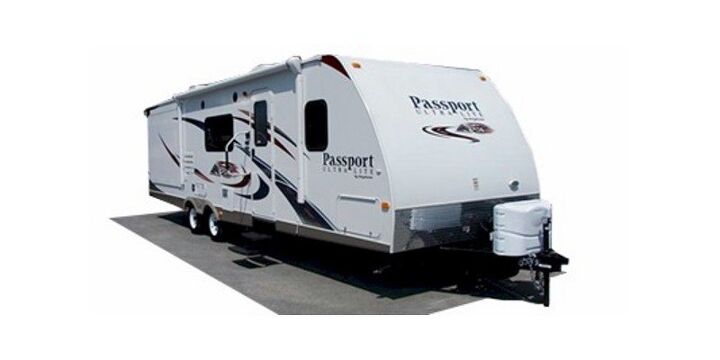

2010 Keystone RV Passport Ultra Lite 285rl Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2010 Keystone RV Passport Ultra Lite 285rl
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Dry Weight | 4909 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 605 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 1296 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 374 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 122 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 78 in | - | - | - |
Specs
Buy Now
More
Dry Weight
4909 lbs
Hitch Weight
605 lbs
Payload Capacity
1296 lbs
Length
374 in
Width
96 in
Exterior Height
122 in
Interior Height
78 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 30 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 30 gal | - | - | - |
| Black Water Tank Capacity | 30 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 40 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
30 gal
Gray Water Tank Capacity
30 gal
Black Water Tank Capacity
30 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire | 205/75R 14C Full Spec | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Rear Wheel Width | 5 in | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
Specs
Buy Now
More
Rear Tire
205/75R 14C Full Spec
Rear Wheel Diameter
14
Spare Tire Location
Exterior Mounted
Rear Tire Aspect Ratio
75
Rear Brake Type
Electric Drum
Rear Tire Width
205
Rear Wheel Width
5 in
Wheels Composition
Steel
Rear Tire Speed Rating
C
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Door Style | Curtain | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Location | Front | - | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Living Area Location | Rear | - | - | - |
Specs
Buy Now
More
Master Bedroom Shades / Curtains
Yes
Master Bedroom Door Style
Curtain
Number Of Queen Size Beds
1
Number Of Sofas
1
Master Bedroom Location
Front
Master Bedroom Mirror Doors
No
Number Of Convertible / Sofa Beds
2
Number Of Recliner / Rockers
2
Full Size Master Bedroom Closet
No
Master Bedroom Flooring Type
Vinyl
Sofa Material
Cloth
Number Of Bathrooms
1
Living Area Location
Rear
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Plastic
Bathroom Location
Center
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 2 | - | - | - |
| Door Type | Curtain | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
2
Door Type
Curtain
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Satellite Prewiring | No | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Satellite | No | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Metallic | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
Specs
Buy Now
More
Satellite Prewiring
No
Power Retractable Slideout
Yes
Washer / Dryer Prewiring
No
Heat Prewiring
Yes
Sliding Glass Door
No
Battery Power Converter
Yes
Overhead Fan
Yes
Satellite
No
Power Retractable Awning
Yes
Wallpaper
Yes
Screened Room
No
Air Conditioning Prewiring
Yes
Metallic
No
Refrigerator
Standard
Water Heater Tank Bypass
Yes
Interior Wood Finish
Yes
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Number Of Televisions
1
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Cloth | - | - | - |
Specs
Buy Now
More
Material
Cloth
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Keystone RV Inc. | - | - | - |
| Year | 2010 | - | - | - |
| Make | Keystone | - | - | - |
| Display Name | Passport Ultra Lite 285RL | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2007 | - | - | - |
Specs
Buy Now
More
Parent Company
Keystone RV Inc.
Year
2010
Make
Keystone
Display Name
Passport Ultra Lite 285RL
Class
Travel Trailer
Max Sleeping Count
6
Number of Slideouts
1
Introduction Year
2007
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Tow-Ready Score
5.3
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.8
Final Off-Grid & Campsites
5.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2010 Keystone RV Passport Ultra Lite 285rl, ensure your vehicle's rated tow capacity exceeds its GVWR of lbs. With a dry weight of 4909 lbs and hitch weight of 605 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 4909 lbs and a GVWR of lbs, giving a payload capacity of 1296 lbs for gear, water, and supplies.
The approximate dimensions are length 374 in., width 96 in., and height 122 in. Always confirm clearances for garages, storage, and campsites.
The Passport Ultra Lite 285rl includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Passport Ultra Lite 285rl owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of lbs and dry weight of 4909 lbs, the Passport Ultra Lite 285rl is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

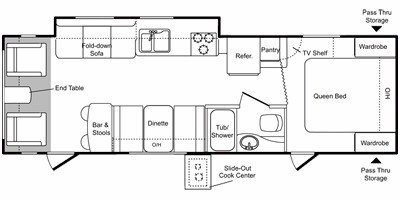

This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Passport Ultra Lite 285rl features body construction with sidewalls and 2 axle(s). Its GVWR of lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
