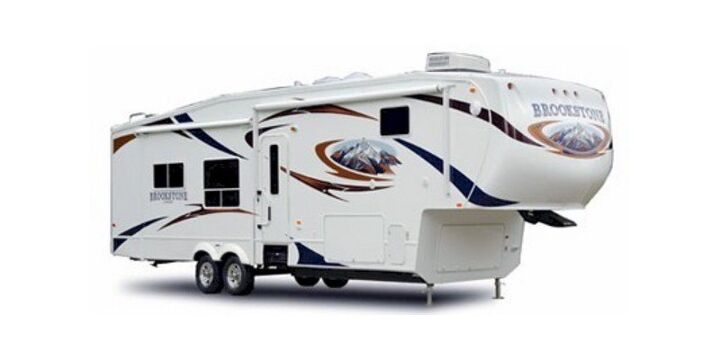

2010 Coachmen RV Brookstone 346sa Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2010 Coachmen RV Brookstone 346sa
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 15500 lbs | - | - | - |
| Dry Weight | 10880 lbs | - | - | - |
| Hitch Weight | 2460 lbs | - | - | - |
| Length | 462 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
Specs
Buy Now
More
GVWR
15500 lbs
Dry Weight
10880 lbs
Hitch Weight
2460 lbs
Length
462 in
Width
96 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 77 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 90 gal | - | - | - |
| Black Water Tank Capacity | 45 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
77 gal
Gray Water Tank Capacity
90 gal
Black Water Tank Capacity
45 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheels Composition | Aluminum | - | - | - |
| Rear Tire | 16-Inch Radial Tires Full Spec | - | - | - |
| Tire Brand | Goodyear® | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
Specs
Buy Now
More
Wheels Composition
Aluminum
Rear Tire
16-Inch Radial Tires Full Spec
Tire Brand
Goodyear®
Rear Brake Type
Electric Drum
Rear Wheel Diameter
16
Spare Tire Location
Exterior Mounted
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 16 g | 16Gal Water heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
16 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Rear | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Location | Front | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Number Of Recliner / Rockers | 2 | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Door Style | Accordion | - | - | - |
Specs
Buy Now
More
Living Area Location
Rear
Full Size Master Bedroom Closet
Yes
Number Of Queen Size Beds
1
Master Bedroom Location
Front
Number Of Sofas
1
Number Of Convertible / Sofa Beds
1
Master Bedroom Shades / Curtains
Yes
Master Bedroom Flooring Type
Carpet
Number Of Recliner / Rockers
2
Number Of Bathrooms
1
Sofa Material
Cloth
Master Bedroom Mirror Doors
Yes
Master Bedroom Door Style
Accordion
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Oven Depth | 22 / 558.8 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Chairs | - | - | - |
Specs
Buy Now
More
Oven Depth
22 / 558.8 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Chairs
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Center
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| TV Antenna Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Metallic | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Phone Prewiring | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Satellite | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
Specs
Buy Now
More
TV Antenna Prewiring
Yes
Power Retractable Awning
Yes
Screened Room
No
Air Conditioning Prewiring
Yes
Metallic
No
Refrigerator
Standard
Washer / Dryer Prewiring
Yes
Interior Wood Finish
Yes
Surround Sound
Yes
Cable Prewiring
Yes
Phone Prewiring
Yes
Satellite Prewiring
Yes
Wallpaper
Yes
Heat Prewiring
Yes
Power Retractable Slideout
Yes
Sliding Glass Door
No
Battery Power Converter
Yes
Overhead Fan
Yes
Satellite
No
Water Heater Tank Bypass
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 3 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Number Of Televisions
3
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Interior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Material | Cloth | - | - | - |
Specs
Buy Now
More
Material
Cloth
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Forest River | - | - | - |
| Year | 2010 | - | - | - |
| Make | Coachmen | - | - | - |
| Display Name | Brookstone 346SA | - | - | - |
| Class | Fifth Wheel | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2010 | - | - | - |
Specs
Buy Now
More
Parent Company
Forest River
Year
2010
Make
Coachmen
Display Name
Brookstone 346SA
Class
Fifth Wheel
Max Sleeping Count
6
Number of Slideouts
3
Introduction Year
2010
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this fifth wheel.
Tow-Ready Score
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.3
Final Tow-Ready Score
5.3
Living Space & Layout
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.0
Final Living Space & Layout
7.0
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
7.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.3
Final Off-Grid & Campsites
7.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2010 Coachmen RV Brookstone 346sa, ensure your vehicle's rated tow capacity exceeds its GVWR of 15500 lbs. With a dry weight of 10880 lbs and hitch weight of 2460 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Fifth Wheel has a dry weight of 10880 lbs and a GVWR of 15500 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 462 in., width 96 in., and height in. Always confirm clearances for garages, storage, and campsites.
The Brookstone 346sa includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Brookstone 346sa owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 15500 lbs and dry weight of 10880 lbs, the Brookstone 346sa is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Fifth Wheel.
The Brookstone 346sa features body construction with sidewalls and 2 axle(s). Its GVWR of 15500 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
