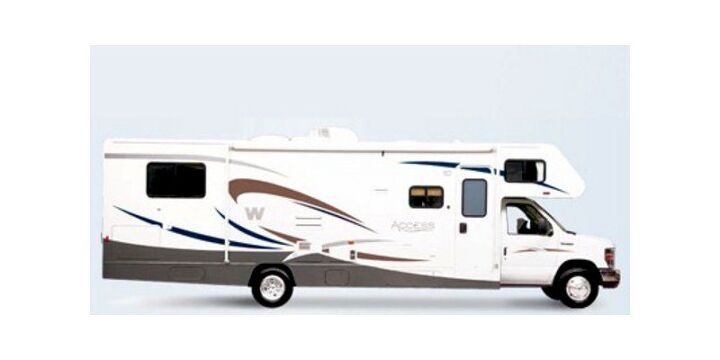

2009 Winnebago Access 31c Specs
Know Before You Drive
Key specs for safe motorhome driving
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
14,500 lbs
License
Standard driver's license
Type
Class C
License Requirement
Standard driver's license
Standard
Check State
CDL May Apply
Essential Upgrades for the 2009 Winnebago Access 31c
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 14500 lbs | - | - | - |
| Length | 380 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 101 in | Clip On Mirrors | Shop Mirrors | - |
| Interior Height | 82 in | - | - | - |
| Towing Capacity | 5000 / 2268 lbs | - | - | - |
| Exterior Height | 131 in | Telescoping Ladder | Shop Ladders | - |
| Tongue Weight | 350 / 158.8 lbs | - | - | - |
Specs
Buy Now
More
GVWR
14500 lbs
Length
380 in
Width
101 in
Interior Height
82 in
Towing Capacity
5000 / 2268 lbs
Exterior Height
131 in
Tongue Weight
350 / 158.8 lbs
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 45 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
45
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 42 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 41 gal | - | - | - |
| Black Water Tank Capacity | 41 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 76.3 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
42 gal
Gray Water Tank Capacity
41 gal
Black Water Tank Capacity
41 gal
Number Of Propane Tanks
1
Propane Tank Capacity
76.3 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Front Tire | 225/75 R16 Full Spec | - | - | - |
| Front Wheel Diameter | 16 | - | - | - |
| Front Tire Aspect Ratio | 75 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Tire Width | 225 | - | - | - |
| Rear Tire | 225/75 R16E Full Spec | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Front Tire Width | 225 | - | - | - |
| Wheelbase | 220 / 5588 in | - | - | - |
| Rear Tire Speed Rating | E | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
| Front Tire Speed Rating | E | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
Specs
Buy Now
More
Front Tire
225/75 R16 Full Spec
Front Wheel Diameter
16
Front Tire Aspect Ratio
75
Wheels Composition
Steel
Rear Tire Width
225
Rear Tire
225/75 R16E Full Spec
Front Brake Type
Hydraulic Disc
Front Tire Width
225
Wheelbase
220 / 5588 in
Rear Tire Speed Rating
E
Rear Brake Type
Hydraulic Disc
Front Tire Speed Rating
E
Rear Wheel Diameter
16
Spare Tire Location
Exterior Mounted
Rear Tire Aspect Ratio
75
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Full Size Master Bedroom Closet | No | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Bathrooms | 1 | - | - | - |
| Living Area Location | Front | - | - | - |
| Master Bedroom Door Style | Accordion | - | - | - |
| Number Of Full Size Beds | 1 | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Rear | - | - | - |
Specs
Buy Now
More
Full Size Master Bedroom Closet
No
Number Of Convertible / Sofa Beds
2
Number Of Sofas
1
Master Bedroom Flooring Type
Carpet
Number Of Queen Size Beds
1
Number Of Bathrooms
1
Living Area Location
Front
Master Bedroom Door Style
Accordion
Number Of Full Size Beds
1
Sofa Material
Cloth
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Rear
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Toilet Type
Plastic
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number Of Axles
1
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| TV Antenna Prewiring | Yes | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Supercharged | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Turbocharged | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Power Adjustable Seat | Yes | - | - | - |
| Swivel Seats | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Seat Armrests | Yes | - | - | - |
Specs
Buy Now
More
TV Antenna Prewiring
Yes
Reclining Seats
Yes
Air Conditioning Prewiring
Yes
Overhead Fan
Yes
Supercharged
No
Washer / Dryer Prewiring
No
Interior Wood Finish
Yes
Satellite Prewiring
Yes
Turbocharged
No
Cable Prewiring
Yes
Power Retractable Slideout
Yes
Overdrive
Yes
Sliding Glass Door
No
Wallpaper
Yes
Heat Prewiring
Yes
Refrigerator
Standard
Battery Power Converter
Yes
Power Adjustable Seat
Yes
Swivel Seats
No
Water Heater Tank Bypass
Yes
Seat Armrests
Yes
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Rows | 1 | - | - | - |
| Seat Material | Cloth | - | - | - |
| Seat Specifications | Standard | - | - | - |
| Number Of Seats | 2 | - | - | - |
| Seat Type | Bucket | - | - | - |
Specs
Buy Now
More
Number Of Rows
1
Seat Material
Cloth
Seat Specifications
Standard
Number Of Seats
2
Seat Type
Bucket
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Model | E450 | - | - | - |
| Chassis Brand | Ford | - | - | - |
Specs
Buy Now
More
Chassis Model
E450
Chassis Brand
Ford
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Transmission Brand | TorqShift | - | - | - |
| Number Of Speeds | 5 | - | - | - |
| Transmission Type | Automatic | - | - | - |
| Driveline Type | 4X2 | - | - | - |
Specs
Buy Now
More
Transmission Brand
TorqShift
Number Of Speeds
5
Transmission Type
Automatic
Driveline Type
4X2
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Torque RPM | 3250 | - | - | - |
| Torque | 569.4 Nm | - | - | - |
| Engine Brand Name | Triton® | - | - | - |
| Horsepower RPM | 4500 | - | - | - |
| Carburetion | Standard | - | - | - |
| Cylinders | 10 | - | - | - |
| Horsepower | 305 bhp | - | - | - |
| Engine Type | V10 | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
Specs
Buy Now
More
Torque RPM
3250
Torque
569.4 Nm
Engine Brand Name
Triton®
Horsepower RPM
4500
Carburetion
Standard
Cylinders
10
Horsepower
305 bhp
Engine Type
V10
Carburetion Type
Fuel Injected
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 55 / 208.2 gal/l | 5Gal Gas Can | - | - |
| Fuel Type | Gas | Fuel Treatment | - | - |
Specs
Buy Now
More
Fuel Capacity
55 / 208.2 gal/l
Fuel Type
Gas
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Winnebago Industries | - | - | - |
| Year | 2009 | - | - | - |
| Make | Winnebago | - | - | - |
| Display Name | Access 31C | - | - | - |
| Class | Class C | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
Specs
Buy Now
More
Parent Company
Winnebago Industries
Year
2009
Make
Winnebago
Display Name
Access 31C
Class
Class C
Max Sleeping Count
8
Number of Slideouts
1
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class c.
Drivability & Handling
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.3
Final Drivability & Handling
6.3
Living Space & Layout
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.8
Final Living Space & Layout
5.8
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.3
Final Off-Grid & Campsites
5.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2009 Winnebago Access 31c, ensure your vehicle's rated tow capacity exceeds its GVWR of 14500 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class C has a dry weight of lbs and a GVWR of 14500 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 380 in., width 101 in., and height 131 in. Always confirm clearances for garages, storage, and campsites.
The Access 31c includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Access 31c owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 14500 lbs and dry weight of lbs, the Access 31c is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class C.
The Access 31c features body construction with sidewalls and 1 axle(s). Its GVWR of 14500 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
