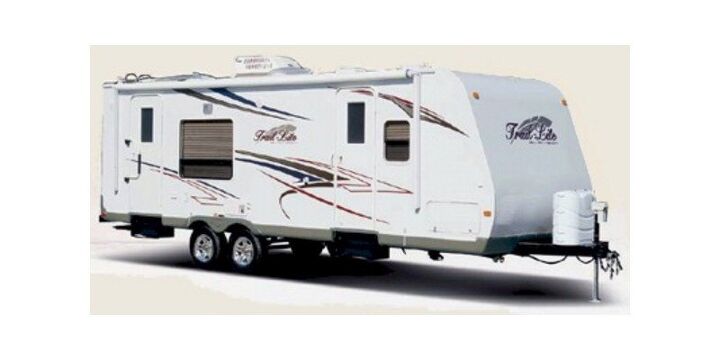

2009 R-Vision Trail Lite Tl29fl Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2009 R-Vision Trail Lite Tl29fl
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 8969 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 5887 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 969 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 3082 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 396 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 128 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
8969 lbs
Dry Weight
5887 lbs
Hitch Weight
969 lbs
Payload Capacity
3082 lbs
Length
396 in
Width
96 in
Exterior Height
128 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 40 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 40 gal | - | - | - |
| Black Water Tank Capacity | 40 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
40 gal
Gray Water Tank Capacity
40 gal
Black Water Tank Capacity
40 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheels Composition | Aluminum | - | - | - |
| Rear Tire Speed Rating | D | - | - | - |
| Rear Wheel Diameter | 15 | - | - | - |
| Rear Tire | ST225/75 R15 Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire Width | 225 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
Specs
Buy Now
More
Wheels Composition
Aluminum
Rear Tire Speed Rating
D
Rear Wheel Diameter
15
Rear Tire
ST225/75 R15 Full Spec
Rear Tire Aspect Ratio
75
Rear Tire Width
225
Rear Brake Type
Electric Drum
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Location | Rear | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Mirror Doors | No | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Master Bedroom Door Style | Curtain | - | - | - |
| Living Area Location | Front | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
Specs
Buy Now
More
Master Bedroom Location
Rear
Sofa Material
Cloth
Master Bedroom Shades / Curtains
Yes
Number Of Convertible / Sofa Beds
2
Master Bedroom Flooring Type
Carpet
Number Of Sofas
1
Master Bedroom Mirror Doors
No
Number Of Bathrooms
1
Full Size Master Bedroom Closet
No
Master Bedroom Door Style
Curtain
Living Area Location
Front
Number Of Queen Size Beds
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Toilet Type
Plastic
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Leveling Jack Type | Front Manual / Rear Manual | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 2 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Leveling Jack Type
Front Manual / Rear Manual
Number Of Axles
2
Sidewall Construction
Fiberglass
Number of Doors
2
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Water Heater Tank Bypass | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Metallic | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite Prewiring | No | - | - | - |
Specs
Buy Now
More
Water Heater Tank Bypass
Yes
Cable Prewiring
Yes
Phone Prewiring
No
TV Antenna Prewiring
Yes
Heat Prewiring
Yes
Refrigerator
Standard
Washer / Dryer Prewiring
No
Battery Power Converter
Yes
Overhead Fan
Yes
Sliding Glass Door
No
Power Retractable Slideout
Yes
Wallpaper
Yes
Air Conditioning Prewiring
Yes
Metallic
No
Interior Wood Finish
Yes
Satellite Prewiring
No
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | R-Vision Inc. | - | - | - |
| Year | 2009 | - | - | - |
| Make | R-Vision | - | - | - |
| Display Name | Trail-Lite TL29FL | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
Specs
Buy Now
More
Parent Company
R-Vision Inc.
Year
2009
Make
R-Vision
Display Name
Trail-Lite TL29FL
Class
Travel Trailer
Max Sleeping Count
6
Number of Slideouts
1
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Tow-Ready Score
5.0
Living Space & Layout
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.8
Final Living Space & Layout
6.8
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.3
Final Comfort & Features
5.3
Storage Space
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.5
Final Storage Space
6.5
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2009 R-Vision Trail Lite Tl29fl, ensure your vehicle's rated tow capacity exceeds its GVWR of 8969 lbs. With a dry weight of 5887 lbs and hitch weight of 969 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 5887 lbs and a GVWR of 8969 lbs, giving a payload capacity of 3082 lbs for gear, water, and supplies.
The approximate dimensions are length 396 in., width 96 in., and height 128 in. Always confirm clearances for garages, storage, and campsites.
The Trail Lite Tl29fl includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Trail Lite Tl29fl owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 8969 lbs and dry weight of 5887 lbs, the Trail Lite Tl29fl is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Trail Lite Tl29fl features body construction with sidewalls and 2 axle(s). Its GVWR of 8969 lbs ensures strength without excessive towing weight.
