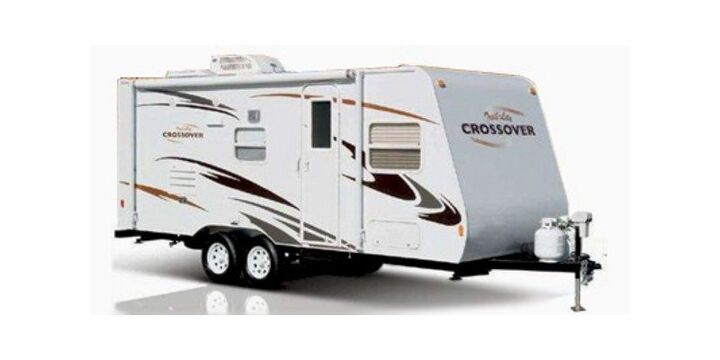

2009 R-Vision Trail-Lite Crossover Tlx189qb Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
4Runner
Up to 5,000 lbs
Grand Cherokee
Up to 7,200 lbs
Explorer
Up to 5,600 lbs
Chevy Tahoe
Up to 8,400 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2009 R-Vision Trail-Lite Crossover Tlx189qb
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 3818 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 2360 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 318 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Payload Capacity | 1458 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 230 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 87 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 116 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
3818 lbs
Dry Weight
2360 lbs
Hitch Weight
318 lbs
Payload Capacity
1458 lbs
Length
230 in
Width
87 in
Exterior Height
116 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 55 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
55
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 30 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 25 gal | - | - | - |
| Black Water Tank Capacity | 25 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 40 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
30 gal
Gray Water Tank Capacity
25 gal
Black Water Tank Capacity
25 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire Speed Rating | C | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Rear Tire | 205/75 R14C Full Spec | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
Specs
Buy Now
More
Rear Tire Speed Rating
C
Wheels Composition
Steel
Rear Wheel Diameter
14
Rear Tire Aspect Ratio
75
Rear Tire
205/75 R14C Full Spec
Rear Tire Width
205
Rear Brake Type
Electric Drum
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Center | - | - | - |
| Number Of Convertible / Sofa Beds | 1 | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
Specs
Buy Now
More
Living Area Location
Center
Number Of Convertible / Sofa Beds
1
Number Of Bathrooms
1
Number Of Queen Size Beds
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 2 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Location | Center | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
2
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
Bench Seats
Refrigerator Size
Mid-Size
Kitchen Location
Center
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Toilet Type | Plastic | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
Specs
Buy Now
More
Toilet Type
Plastic
Bathroom Location
Rear
Bathroom Flooring Type
Vinyl
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Leveling Jack Type | Rear Manual | - | - | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Leveling Jack Type
Rear Manual
Number Of Axles
1
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Metallic | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Phone Prewiring | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Satellite Prewiring | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Heat Prewiring | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
Specs
Buy Now
More
Metallic
No
Washer / Dryer Prewiring
No
Cable Prewiring
Yes
Sliding Glass Door
No
Phone Prewiring
No
Interior Wood Finish
Yes
Wallpaper
Yes
Battery Power Converter
Yes
Satellite Prewiring
No
Overhead Fan
Yes
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Air Conditioning Prewiring
Yes
Refrigerator
Standard
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | R-Vision Inc. | - | - | - |
| Year | 2009 | - | - | - |
| Make | R-Vision | - | - | - |
| Display Name | Trail-Lite Crossover TLX189QB | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 4 | - | - | - |
Specs
Buy Now
More
Parent Company
R-Vision Inc.
Year
2009
Make
R-Vision
Display Name
Trail-Lite Crossover TLX189QB
Class
Travel Trailer
Max Sleeping Count
4
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
8.8/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+3.8
Final Tow-Ready Score
8.8
Living Space & Layout
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.0
Final Living Space & Layout
6.0
Comfort & Features
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Comfort & Features
5.0
Storage Space
6.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.5
Final Storage Space
6.5
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2009 R-Vision Trail-Lite Crossover Tlx189qb, ensure your vehicle's rated tow capacity exceeds its GVWR of 3818 lbs. With a dry weight of 2360 lbs and hitch weight of 318 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 2360 lbs and a GVWR of 3818 lbs, giving a payload capacity of 1458 lbs for gear, water, and supplies.
The approximate dimensions are length 230 in., width 87 in., and height 116 in. Always confirm clearances for garages, storage, and campsites.
The Trail-Lite Crossover Tlx189qb includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Trail-Lite Crossover Tlx189qb owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 3818 lbs and dry weight of 2360 lbs, the Trail-Lite Crossover Tlx189qb is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 4 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Trail-Lite Crossover Tlx189qb features body construction with sidewalls and 1 axle(s). Its GVWR of 3818 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
