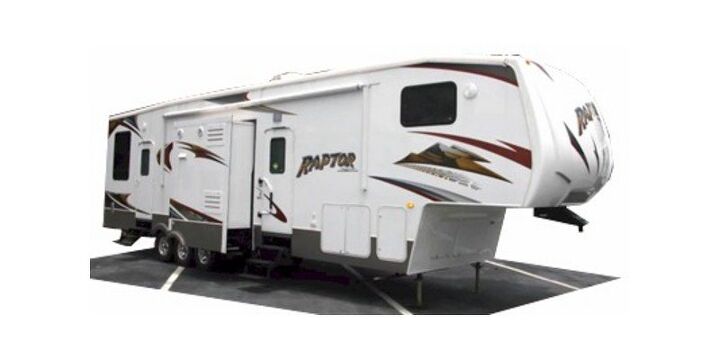

2009 Keystone RV Raptor 3600rl Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2009 Keystone RV Raptor 3600rl
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Dry Weight | 11840 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 2855 lbs | - | - | - |
| Payload Capacity | 4660 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 451 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 102 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 158 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
Dry Weight
11840 lbs
Hitch Weight
2855 lbs
Payload Capacity
4660 lbs
Length
451 in
Width
102 in
Exterior Height
158 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 75 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
75
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 110 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 69 gal | - | - | - |
| Black Water Tank Capacity | 39 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
110 gal
Gray Water Tank Capacity
69 gal
Black Water Tank Capacity
39 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wheels Composition | Aluminum | - | - | - |
| Rear Tire Width | 235 | - | - | - |
| Rear Tire | 235/80R 16E Full Spec | - | - | - |
| Rear Tire Speed Rating | E | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Tire Aspect Ratio | 80 | - | - | - |
| Rear Wheel Width | 6 in | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
Specs
Buy Now
More
Wheels Composition
Aluminum
Rear Tire Width
235
Rear Tire
235/80R 16E Full Spec
Rear Tire Speed Rating
E
Spare Tire Location
Exterior Mounted
Rear Brake Type
Electric Drum
Rear Wheel Diameter
16
Rear Tire Aspect Ratio
80
Rear Wheel Width
6 in
Front Brake Type
Not Applicable
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 12 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
12 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Living Area Location | Center | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Sofas | 2 | Tri-Fold Sofa | - | - |
| Master Bedroom Location | Front | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Number Of Convertible / Sofa Beds | 3 | - | - | - |
Specs
Buy Now
More
Living Area Location
Center
Full Size Master Bedroom Closet
Yes
Master Bedroom Flooring Type
Carpet
Sofa Material
Cloth
Number Of Bathrooms
1
Master Bedroom Door Style
Full Sliding Door
Master Bedroom Shades / Curtains
Yes
Number Of Queen Size Beds
1
Number Of Sofas
2
Master Bedroom Location
Front
Master Bedroom Mirror Doors
Yes
Number Of Convertible / Sofa Beds
3
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Oven Depth | 22 / 558.8 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
Specs
Buy Now
More
Oven Depth
22 / 558.8 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Bench Seats
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Manual | - | - | - |
| Number Of Axles | 3 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Brand Name | Alpine | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Manual
Number Of Axles
3
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Brand Name
Alpine
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Wallpaper | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Metallic | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Screened Room | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Surround Sound | Yes | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Satellite Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Wallpaper
Yes
Power Retractable Awning
Yes
Sliding Glass Door
No
Air Conditioning Prewiring
Yes
Metallic
No
Water Heater Tank Bypass
Yes
Interior Wood Finish
Yes
Refrigerator
Standard
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Screened Room
No
Washer / Dryer Prewiring
No
Heat Prewiring
Yes
Power Retractable Slideout
Yes
Surround Sound
Yes
Battery Power Converter
Yes
Overhead Fan
Yes
Satellite Prewiring
Yes
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Cargo Area Width | 102 / 2590.8 in | - | - | - |
| Cargo Area Flooring Type | Vinyl | - | - | - |
| Cargo Area Rear Door Style | Ramp Door | - | - | - |
| Cargo Area Length | 144 / 3657.6 in | - | - | - |
Specs
Buy Now
More
Cargo Area Width
102 / 2590.8 in
Cargo Area Flooring Type
Vinyl
Cargo Area Rear Door Style
Ramp Door
Cargo Area Length
144 / 3657.6 in
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior / Exterior
Number Of Televisions
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Keystone RV Inc. | - | - | - |
| Year | 2009 | - | - | - |
| Make | Keystone | - | - | - |
| Display Name | Raptor 3600RL | - | - | - |
| Class | Toy Hauler | - | - | - |
| Max Sleeping Count | 8 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2007 | - | - | - |
Specs
Buy Now
More
Parent Company
Keystone RV Inc.
Year
2009
Make
Keystone
Display Name
Raptor 3600RL
Class
Toy Hauler
Max Sleeping Count
8
Number of Slideouts
3
Introduction Year
2007
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this toy hauler.
Tow-Ready Score
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.3
Final Tow-Ready Score
5.3
Living Space & Layout
7.0/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+2.0
Final Living Space & Layout
7.0
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.8/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+1.8
Final Off-Grid & Campsites
6.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2009 Keystone RV Raptor 3600rl, ensure your vehicle's rated tow capacity exceeds its GVWR of lbs. With a dry weight of 11840 lbs and hitch weight of 2855 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Toy Hauler has a dry weight of 11840 lbs and a GVWR of lbs, giving a payload capacity of 4660 lbs for gear, water, and supplies.
The approximate dimensions are length 451 in., width 102 in., and height 158 in. Always confirm clearances for garages, storage, and campsites.
The Raptor 3600rl includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Raptor 3600rl owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of lbs and dry weight of 11840 lbs, the Raptor 3600rl is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

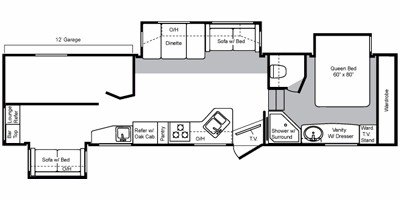

This floorplan sleeps up to 8 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Toy Hauler.
The Raptor 3600rl features body construction with sidewalls and 3 axle(s). Its GVWR of lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
