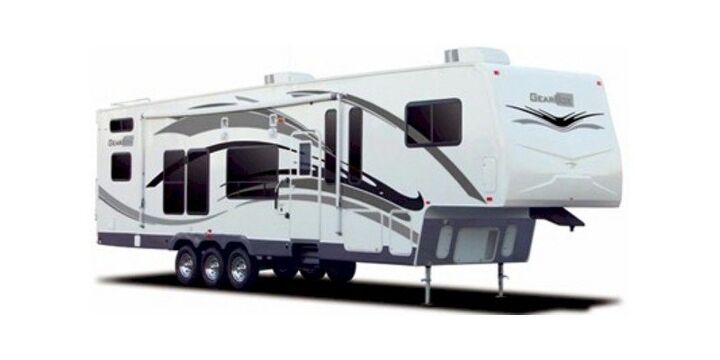

2009 Fleetwood RV GearBox 385sa2g Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2009 Fleetwood RV GearBox 385sa2g
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 17200 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 11773 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 2460 lbs | - | - | - |
| Payload Capacity | 5000 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 479 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 102 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 161 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
17200 lbs
Dry Weight
11773 lbs
Hitch Weight
2460 lbs
Payload Capacity
5000 lbs
Length
479 in
Width
102 in
Exterior Height
161 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 120 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 80 gal | - | - | - |
| Black Water Tank Capacity | 40 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
120 gal
Gray Water Tank Capacity
80 gal
Black Water Tank Capacity
40 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Wheel Diameter | 16 | - | - | - |
| Rear Tire | ST235/80 R16D Full Spec | - | - | - |
| Rear Tire Aspect Ratio | 80 | - | - | - |
| Wheels Composition | Chrome | - | - | - |
| Rear Tire Width | 235 | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Rear Tire Speed Rating | D | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
Specs
Buy Now
More
Rear Wheel Diameter
16
Rear Tire
ST235/80 R16D Full Spec
Rear Tire Aspect Ratio
80
Wheels Composition
Chrome
Rear Tire Width
235
Rear Brake Type
Electric Drum
Spare Tire Location
Exterior Mounted
Rear Tire Speed Rating
D
Front Brake Type
Not Applicable
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 10 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
10 g
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Living Area Location | Center | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Master Bedroom Flooring Type | Carpet | - | - | - |
| Sofa Material | Cloth | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Number Of Queen Size Beds | 3 | Queen RV Mattress | Shop Mattresses | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Master Bedroom Location | Front / Rear | - | - | - |
| Master Bedroom Mirror Doors | Yes | - | - | - |
Specs
Buy Now
More
Number Of Convertible / Sofa Beds
2
Living Area Location
Center
Full Size Master Bedroom Closet
Yes
Master Bedroom Flooring Type
Carpet
Sofa Material
Cloth
Number Of Bathrooms
1
Master Bedroom Shades / Curtains
Yes
Master Bedroom Door Style
Full Sliding Door
Number Of Queen Size Beds
3
Number Of Sofas
1
Master Bedroom Location
Front / Rear
Master Bedroom Mirror Doors
Yes
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Oven Depth | 22 / 558.8 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
Specs
Buy Now
More
Oven Depth
22 / 558.8 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Bench Seats
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Manual | - | - | - |
| Number Of Axles | 3 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Manual
Number Of Axles
3
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Power Retractable Slideout | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Sliding Glass Door | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Satellite | No | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Power Retractable Awning | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Refrigerator | Standard | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Surround Sound | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
Specs
Buy Now
More
Power Retractable Slideout
Yes
Wallpaper
Yes
Overhead Fan
Yes
Sliding Glass Door
No
Air Conditioning Prewiring
Yes
Satellite
No
Interior Wood Finish
Yes
Power Retractable Awning
No
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Screened Room
No
Refrigerator
Standard
Washer / Dryer Prewiring
No
Heat Prewiring
Yes
Phone Prewiring
No
Surround Sound
No
Battery Power Converter
Yes
Satellite Prewiring
Yes
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Cargo Area Flooring Type | Vinyl | - | - | - |
| Cargo Area Rear Door Style | Ramp Door | - | - | - |
Specs
Buy Now
More
Cargo Area Flooring Type
Vinyl
Cargo Area Rear Door Style
Ramp Door
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Fleetwood | - | - | - |
| Year | 2009 | - | - | - |
| Make | Fleetwood | - | - | - |
| Display Name | GearBox® 385SA2G | - | - | - |
| Class | Toy Hauler | - | - | - |
| Max Sleeping Count | 10 | - | - | - |
| Number of Slideouts | 2 | - | - | - |
Specs
Buy Now
More
Parent Company
Fleetwood
Year
2009
Make
Fleetwood
Display Name
GearBox® 385SA2G
Class
Toy Hauler
Max Sleeping Count
10
Number of Slideouts
2
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this toy hauler.
Tow-Ready Score
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.5
Final Tow-Ready Score
5.5
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.8
Final Comfort & Features
5.8
Storage Space
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+0.5
Final Storage Space
5.5
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Toy Hauler class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2009 Fleetwood RV GearBox 385sa2g, ensure your vehicle's rated tow capacity exceeds its GVWR of 17200 lbs. With a dry weight of 11773 lbs and hitch weight of 2460 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Toy Hauler has a dry weight of 11773 lbs and a GVWR of 17200 lbs, giving a payload capacity of 5000 lbs for gear, water, and supplies.
The approximate dimensions are length 479 in., width 102 in., and height 161 in. Always confirm clearances for garages, storage, and campsites.
The GearBox 385sa2g includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many GearBox 385sa2g owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 17200 lbs and dry weight of 11773 lbs, the GearBox 385sa2g is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

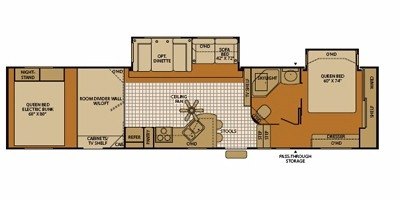

This floorplan sleeps up to 10 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Toy Hauler.
The GearBox 385sa2g features body construction with sidewalls and 3 axle(s). Its GVWR of 17200 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
