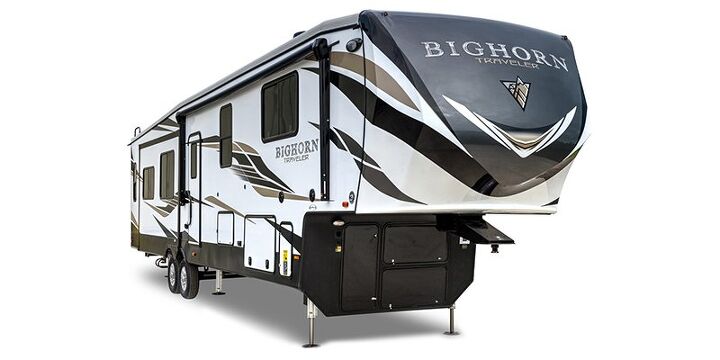

2022 Heartland Bighorn Traveler Bhtr-33-rks Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-250
Up to 22,800 lbs
Ram 2500
Up to 20,000 lbs
Chevy 2500HD
Up to 22,500 lbs
GMC 2500HD
Up to 22,500 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2022 Heartland Bighorn Traveler Bhtr-33-rks
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 15500 lbs | - | - | - |
| Dry Weight | 10910 lbs | - | - | - |
| Hitch Weight | 3475 lbs | - | - | - |
| Payload Capacity | 4542 lbs | Coil SumoSprings | Shop Suspension Kits | - |
| Length | 450 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96.7 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 160 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 76.3 in | - | - | - |
Specs
Buy Now
More
GVWR
15500 lbs
Dry Weight
10910 lbs
Hitch Weight
3475 lbs
Payload Capacity
4542 lbs
Length
450 in
Width
96.7 in
Exterior Height
160 in
Interior Height
76.3 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 75 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
75
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 65 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 90 gal | - | - | - |
| Black Water Tank Capacity | 45 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 60 lbs | 30Lb Propane Tank | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
65 gal
Gray Water Tank Capacity
90 gal
Black Water Tank Capacity
45 gal
Number Of Propane Tanks
2
Propane Tank Capacity
60 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Tire | 16 Inch F rated Full Spec | - | - | - |
| Rear Wheel Diameter | 16 | - | - | - |
| Wheels Composition | Aluminum | - | - | - |
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Tire Speed Rating | F | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
Specs
Buy Now
More
Rear Tire
16 Inch F rated Full Spec
Rear Wheel Diameter
16
Wheels Composition
Aluminum
Rear Brake Type
Electric Drum
Rear Tire Speed Rating
F
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 12 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
12 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Mirror Doors | Yes | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Full Size Master Bedroom Closet | Yes | - | - | - |
| Sofa Material | Vinyl | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Number Of King Size Beds | 1 | - | - | - |
| Number Of Sofas | 3 | Tri-Fold Sofa | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Location | Front | - | - | - |
| Reclining Sofa | Yes | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Living Area Location | Center | - | - | - |
Specs
Buy Now
More
Master Bedroom Mirror Doors
Yes
Master Bedroom Flooring Type
Vinyl
Full Size Master Bedroom Closet
Yes
Sofa Material
Vinyl
Number Of Bathrooms
1
Master Bedroom Door Style
Full Sliding Door
Number Of King Size Beds
1
Number Of Sofas
3
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Reclining Sofa
Yes
Number Of Convertible / Sofa Beds
2
Living Area Location
Center
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Full-Size | - | - | - |
| Kitchen Table Configuration | Chairs | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Rear | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Full-Size
Kitchen Table Configuration
Chairs
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Rear
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Center | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Center
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 15 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Leveling Jack Type | Front Power / Rear Power | - | - | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
15 ft/m
Number of Awnings
1
Leveling Jack Type
Front Power / Rear Power
Number Of Axles
2
Sidewall Construction
Fiberglass
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Water Heater Tank Bypass | Yes | - | - | - |
| Satellite | No | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Screened Room | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Washer / Dryer Prewiring | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Surround Sound | No | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Bunkhouse | No | - | - | - |
Specs
Buy Now
More
Water Heater Tank Bypass
Yes
Satellite
No
Power Retractable Slideout
Yes
TV Antenna Prewiring
Yes
Overhead Fan
Yes
Screened Room
No
Battery Power Converter
Yes
Washer / Dryer Prewiring
Yes
Interior Wood Finish
Yes
Refrigerator
Standard
Cable Prewiring
Yes
Power Retractable Awning
Yes
Surround Sound
No
Satellite Prewiring
Yes
Air Conditioning Prewiring
Yes
Heat Prewiring
Yes
Wallpaper
Yes
Phone Prewiring
No
Sliding Glass Door
No
Bunkhouse
No
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior / Exterior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 2 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Speaker Location
Interior / Exterior
Number Of Televisions
2
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Heartland Recreational Vehicles LLC | - | - | - |
| Year | 2022 | - | - | - |
| Make | Heartland | - | - | - |
| Display Name | Bighorn Traveler BHTR 33 RKS | - | - | - |
| Class | Fifth Wheel | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 3 | - | - | - |
| Introduction Year | 2021 | - | - | - |
Specs
Buy Now
More
Parent Company
Heartland Recreational Vehicles LLC
Year
2022
Make
Heartland
Display Name
Bighorn Traveler BHTR 33 RKS
Class
Fifth Wheel
Max Sleeping Count
6
Number of Slideouts
3
Introduction Year
2021
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this fifth wheel.
Tow-Ready Score
6.0/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.0
Final Tow-Ready Score
6.0
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.3
Final Comfort & Features
6.3
Storage Space
7.5/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+2.5
Final Storage Space
7.5
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Fifth Wheel class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2022 Heartland Bighorn Traveler Bhtr-33-rks, ensure your vehicle's rated tow capacity exceeds its GVWR of 15500 lbs. With a dry weight of 10910 lbs and hitch weight of 3475 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Fifth Wheel has a dry weight of 10910 lbs and a GVWR of 15500 lbs, giving a payload capacity of 4542 lbs for gear, water, and supplies.
The approximate dimensions are length 450 in., width 96 in., and height 160 in. Always confirm clearances for garages, storage, and campsites.
The Bighorn Traveler Bhtr-33-rks includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Bighorn Traveler Bhtr-33-rks owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 15500 lbs and dry weight of 10910 lbs, the Bighorn Traveler Bhtr-33-rks is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

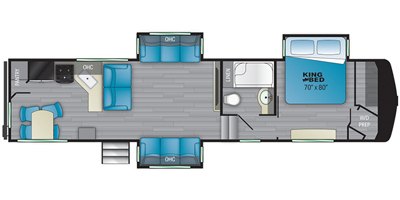

This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Fifth Wheel.
The Bighorn Traveler Bhtr-33-rks features body construction with sidewalls and 2 axle(s). Its GVWR of 15500 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
