2016 Heartland Pioneer Rb-220 Specs
Can Your Vehicle Tow This?
Interactive towing compatibility checker
Select Your Tow Vehicle
RECOMMENDED TOW VEHICLES
Ford F-150
Up to 14,000 lbs
Ram 1500
Up to 12,750 lbs
Silverado 1500
Up to 13,300 lbs
Toyota Tundra
Up to 12,000 lbs
Safe Towing Capacity
80%
Under capacity
Safe zone
Max rating
Essential Upgrades for the 2016 Heartland Pioneer Rb-220
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 6900 lbs | Class 4 Receiver | Shop Receivers | - |
| Dry Weight | 4596 lbs | CURT WD Hitch & Sway Controller | Shop Weight Distributing Hitches | - |
| Hitch Weight | 492 lbs | ReeseTrailer Hitch | Shop Hitches | - |
| Length | 321 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 96 in | Clip On Mirrors | Shop Mirrors | - |
| Exterior Height | 129 in | Telescoping Ladder | Shop Ladders | - |
| Interior Height | 80 in | - | - | - |
Specs
Buy Now
More
GVWR
6900 lbs
Dry Weight
4596 lbs
Hitch Weight
492 lbs
Length
321 in
Width
96 in
Exterior Height
129 in
Interior Height
80 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 45 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
45
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 41 gal | 40 Gal Tank | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 35 gal | - | - | - |
| Black Water Tank Capacity | 35 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 2 | - | - | - |
| Propane Tank Capacity | 40 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
41 gal
Gray Water Tank Capacity
35 gal
Black Water Tank Capacity
35 gal
Number Of Propane Tanks
2
Propane Tank Capacity
40 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Brake Type | Electric Drum | - | - | - |
| Rear Wheel Diameter | 14 | - | - | - |
| Rear Tire Aspect Ratio | 75 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Front Brake Type | Not Applicable | - | - | - |
| Rear Tire Width | 205 | - | - | - |
| Rear Tire | ST205/75R14C Full Spec | - | - | - |
| Rear Tire Speed Rating | C | - | - | - |
Specs
Buy Now
More
Rear Brake Type
Electric Drum
Rear Wheel Diameter
14
Rear Tire Aspect Ratio
75
Wheels Composition
Steel
Front Brake Type
Not Applicable
Rear Tire Width
205
Rear Tire
ST205/75R14C Full Spec
Rear Tire Speed Rating
C
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 12 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
12 g
Heater Type
Automatic
Water Heater Pump Power Mode
Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Master Bedroom Mirror Doors | No | - | - | - |
| Master Bedroom Door Style | Full Sliding Door | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Full Size Master Bedroom Closet | No | - | - | - |
| Reclining Sofa | No | RV Loveseat Recliner Sofa | Shop Sofa | - |
| Number Of Queen Size Beds | 1 | Queen RV Mattress | Shop Mattresses | - |
| Master Bedroom Location | Front | - | - | - |
| Living Area Location | Center | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Master Bedroom Shades / Curtains | Yes | - | - | - |
| Master Bedroom Flooring Type | Vinyl | - | - | - |
| Sofa Material | Vinyl | - | - | - |
| Number Of Bathrooms | 1 | - | - | - |
Specs
Buy Now
More
Master Bedroom Mirror Doors
No
Master Bedroom Door Style
Full Sliding Door
Number Of Sofas
1
Full Size Master Bedroom Closet
No
Reclining Sofa
No
Number Of Queen Size Beds
1
Master Bedroom Location
Front
Living Area Location
Center
Number Of Convertible / Sofa Beds
2
Master Bedroom Shades / Curtains
Yes
Master Bedroom Flooring Type
Vinyl
Sofa Material
Vinyl
Number Of Bathrooms
1
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Oven Burners | 3 | - | - | - |
| Kitchen / Living Area Flooring Type | Carpet / Vinyl | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Oven Depth | 20 / 508 in | - | - | - |
| Kitchen Location | Center | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
Specs
Buy Now
More
Number Of Oven Burners
3
Kitchen / Living Area Flooring Type
Carpet / Vinyl
Refrigerator Power Mode
Electric / Propane
Kitchen Table Configuration
Bench Seats
Oven Depth
20 / 508 in
Kitchen Location
Center
Refrigerator Size
Mid-Size
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
| Bathroom Location | Rear | - | - | - |
Specs
Buy Now
More
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Bathroom Location
Rear
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 14 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Number Of Axles | 2 | - | - | - |
| Sidewall Construction | Aluminum | - | - | - |
| Number Of Emergency Exits | 1 | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Curtain | - | - | - |
| Body Material | Wood | - | - | - |
Specs
Buy Now
More
Awning Length
14 ft/m
Number of Awnings
1
Number Of Axles
2
Sidewall Construction
Aluminum
Number Of Emergency Exits
1
Number of Doors
1
Door Type
Curtain
Body Material
Wood
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Satellite Prewiring | No | - | - | - |
| Wallpaper | Yes | - | - | - |
| Sliding Glass Door | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Metallic | No | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Phone Prewiring | No | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
| Surround Sound | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
Specs
Buy Now
More
Satellite Prewiring
No
Wallpaper
Yes
Sliding Glass Door
No
Battery Power Converter
Yes
Metallic
No
Water Heater Tank Bypass
Yes
Interior Wood Finish
Yes
Satellite
No
TV Antenna Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Air Conditioning Prewiring
Yes
Screened Room
No
Washer / Dryer Prewiring
No
Heat Prewiring
Yes
Refrigerator
Standard
Surround Sound
No
Bunkhouse
No
Overhead Fan
Yes
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
| Number Of Discs | 1 | - | - | - |
Specs
Buy Now
More
Speaker Location
Interior
Number Of Discs
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 1 | - | - | - |
Specs
Buy Now
More
Number Of Radios
1
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Heartland Recreational Vehicles LLC | - | - | - |
| Year | 2016 | - | - | - |
| Make | Heartland | - | - | - |
| Display Name | Pioneer RB 220 | - | - | - |
| Class | Travel Trailer | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Introduction Year | 2016 | - | - | - |
Specs
Buy Now
More
Parent Company
Heartland Recreational Vehicles LLC
Year
2016
Make
Heartland
Display Name
Pioneer RB 220
Class
Travel Trailer
Max Sleeping Count
6
Introduction Year
2016
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this travel trailer.
Tow-Ready Score
7.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+2.3
Final Tow-Ready Score
7.3
Living Space & Layout
5.5/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.5
Final Living Space & Layout
5.5
Comfort & Features
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Comfort & Features
5.0
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Travel Trailer class averages
+1.3
Final Off-Grid & Campsites
6.3
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2016 Heartland Pioneer Rb-220, ensure your vehicle's rated tow capacity exceeds its GVWR of 6900 lbs. With a dry weight of 4596 lbs and hitch weight of 492 lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Travel Trailer has a dry weight of 4596 lbs and a GVWR of 6900 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 321 in., width 96 in., and height 129 in. Always confirm clearances for garages, storage, and campsites.
The Pioneer Rb-220 includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many Pioneer Rb-220 owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 6900 lbs and dry weight of 4596 lbs, the Pioneer Rb-220 is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.

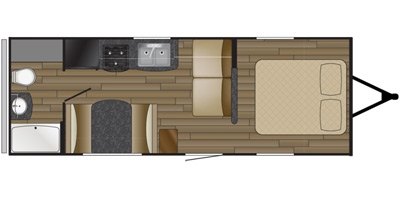

This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Travel Trailer.
The Pioneer Rb-220 features body construction with sidewalls and 2 axle(s). Its GVWR of 6900 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
