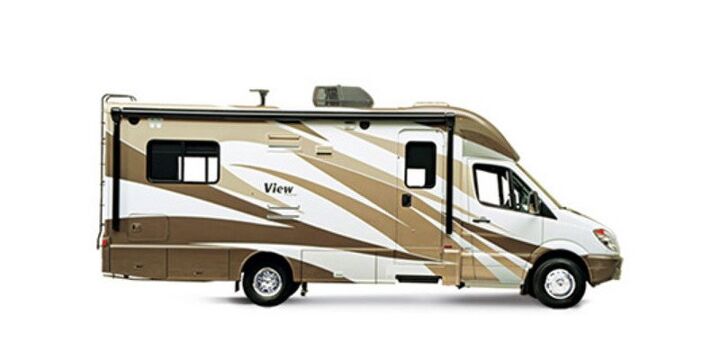

2014 Winnebago View 24m Specs
Know Before You Drive
Key specs for safe motorhome driving
⚠️ Height Alert: Over 11' tall. Watch for low bridges and overhangs!
Compact
<14k
Mid-Size
14-20k
Large
20-26k
XL
26k+
DRIVING QUICK FACTS
GVWR
11,030 lbs
License
Standard driver's license
Type
Class C
License Requirement
Standard driver's license
Standard
Check State
CDL May Apply
Essential Upgrades for the 2014 Winnebago View 24m
Towing & Dimensions
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| GVWR | 11030 lbs | - | - | - |
| Length | 294 in | Furrion Backup Camera | Shop Cameras | - |
| Width | 90 in | Clip On Mirrors | Shop Mirrors | - |
| Tongue Weight | 500 / 158.8 lbs | - | - | - |
| Interior Height | 80 in | - | - | - |
| Towing Capacity | 5000 / 2268 lbs | - | - | - |
| Exterior Height | 135 in | Telescoping Ladder | Shop Ladders | - |
Specs
Buy Now
More
GVWR
11030 lbs
Length
294 in
Width
90 in
Tongue Weight
500 / 158.8 lbs
Interior Height
80 in
Towing Capacity
5000 / 2268 lbs
Exterior Height
135 in
Towing & Dimensions Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Electrical & Solar
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Battery Converter Amps | 45 | - | - | - |
| Shore Power | 30 Amps | - | - | - |
| Battery Type | 12V Lead-Acid | Renogy 100Ah LiFePO4 | RV Batteries | Top 5 |
| Solar Pre-Wired | Optional | - | - | - |
| Inverter | Optional | - | - | - |
Specs
Buy Now
More
Battery Converter Amps
45
Shore Power
30 Amps
Battery Type
12V Lead-Acid
Solar Pre-Wired
Optional
Inverter
Optional
Electrical & Solar Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tank Capacities
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Fresh Water Holding Tanks | 1 | - | - | - |
| Number Of Gray Water Holding Tanks | 1 | - | - | - |
| Number Of Black Water Holding Tanks | 1 | - | - | - |
| Fresh Water Tank Capacity | 32 gal | - | Fresh Water Tanks | - |
| Gray Water Tank Capacity | 36 gal | - | - | - |
| Black Water Tank Capacity | 32 gal | - | Back Water Tanks | - |
| Number Of Propane Tanks | 1 | - | - | - |
| Propane Tank Capacity | 55.1 lbs | - | Propane Tank Capacity | - |
Specs
Buy Now
More
Number Of Fresh Water Holding Tanks
1
Number Of Gray Water Holding Tanks
1
Number Of Black Water Holding Tanks
1
Fresh Water Tank Capacity
32 gal
Gray Water Tank Capacity
36 gal
Black Water Tank Capacity
32 gal
Number Of Propane Tanks
1
Propane Tank Capacity
55.1 lbs
Tank Capacities Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Tires & Wheels
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Rear Wheel Diameter | 16 | - | - | - |
| Spare Tire Location | Exterior Mounted | - | - | - |
| Front Tire | 215/85 R16 Full Spec | - | - | - |
| Front Tire Width | 215 | - | - | - |
| Wheels Composition | Steel | - | - | - |
| Rear Tire Width | 215 | - | - | - |
| Rear Tire | 215/85 R16 Full Spec | - | - | - |
| Front Brake Type | Hydraulic Disc | - | - | - |
| Front Tire Aspect Ratio | 85 | - | - | - |
| Wheelbase | 170 / 4318 in | - | - | - |
| Rear Tire Aspect Ratio | 85 | - | - | - |
| Rear Brake Type | Hydraulic Disc | - | - | - |
| Front Wheel Diameter | 16 | - | - | - |
Specs
Buy Now
More
Rear Wheel Diameter
16
Spare Tire Location
Exterior Mounted
Front Tire
215/85 R16 Full Spec
Front Tire Width
215
Wheels Composition
Steel
Rear Tire Width
215
Rear Tire
215/85 R16 Full Spec
Front Brake Type
Hydraulic Disc
Front Tire Aspect Ratio
85
Wheelbase
170 / 4318 in
Rear Tire Aspect Ratio
85
Rear Brake Type
Hydraulic Disc
Front Wheel Diameter
16
Heating & Cooling
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Air Conditioning Type | Automatic | Dometic 13.5K Air Conditioner | Shop All RV AC | - |
| Water Heater Tank Capacity | 6 g | RV Tank Water Heater | RV Water Heaters | - |
| Heater Type | Automatic | - | - | - |
| Water Heater Pump Power Mode | Electrical / Propane | - | - | - |
Specs
Buy Now
More
Air Conditioning Type
Automatic
Water Heater Tank Capacity
6 g
Heater Type
Automatic
Water Heater Pump Power Mode
Electrical / Propane
Heating & Cooling Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.

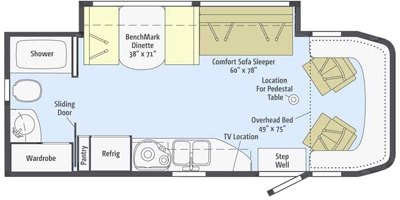

Living Room / Bedroom(s)
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Sofa Material | Leather | - | - | - |
| Number Of Convertible / Sofa Beds | 2 | - | - | - |
| Number Of Sofas | 1 | Tri-Fold Sofa | - | - |
| Number Of Bathrooms | 1 | - | - | - |
| Number Of Double Beds | 1 | - | - | - |
| Living Area Location | Front | - | - | - |
Specs
Buy Now
More
Sofa Material
Leather
Number Of Convertible / Sofa Beds
2
Number Of Sofas
1
Number Of Bathrooms
1
Number Of Double Beds
1
Living Area Location
Front
Living Room / Bedroom(s) Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Kitchen / Dining
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Kitchen / Living Area Flooring Type | Vinyl | - | - | - |
| Refrigerator Size | Mid-Size | - | - | - |
| Kitchen Table Configuration | Bench Seats | - | - | - |
| Refrigerator Power Mode | Electric / Propane | - | - | - |
| Kitchen Location | Center | - | - | - |
| Number Of Oven Burners | 2 | - | - | - |
Specs
Buy Now
More
Kitchen / Living Area Flooring Type
Vinyl
Refrigerator Size
Mid-Size
Kitchen Table Configuration
Bench Seats
Refrigerator Power Mode
Electric / Propane
Kitchen Location
Center
Number Of Oven Burners
2
Bathroom
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Bathroom Location | Rear | - | - | - |
| Bathroom Flooring Type | Vinyl | - | - | - |
| Toilet Type | Porcelain | RV Toilet with Sprayer Attachment | Toilets | Top 5 |
Specs
Buy Now
More
Bathroom Location
Rear
Bathroom Flooring Type
Vinyl
Toilet Type
Porcelain
Exterior
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Awning Length | 15 ft/m | Awning Fabric Replacement | All Awnings | - |
| Number of Awnings | 1 | Motorized RV Awning Set | Shop Awnings | - |
| Number Of Axles | 1 | - | - | - |
| Sidewall Construction | Fiberglass | - | - | - |
| Number of Doors | 1 | - | - | - |
| Door Type | Plastic / Glass | - | - | - |
| Body Material | Aluminum | - | - | - |
Specs
Buy Now
More
Awning Length
15 ft/m
Number of Awnings
1
Number Of Axles
1
Sidewall Construction
Fiberglass
Number of Doors
1
Door Type
Plastic / Glass
Body Material
Aluminum
Exterior Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Options
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Supercharged | No | - | - | - |
| Battery Power Converter | Yes | - | - | - |
| Power Retractable Awning | Yes | - | - | - |
| Wallpaper | Yes | - | - | - |
| Overdrive | Yes | - | - | - |
| Screened Room | No | - | - | - |
| Swivel Seats | Yes | - | - | - |
| Cable Prewiring | Yes | - | - | - |
| Reclining Seats | Yes | - | - | - |
| Air Conditioning Prewiring | Yes | - | - | - |
| Water Heater Tank Bypass | Yes | - | - | - |
| Power Adjustable Seat | No | - | - | - |
| Sliding Glass Door | No | - | - | - |
| TV Antenna Prewiring | Yes | - | - | - |
| Interior Wood Finish | Yes | - | - | - |
| Satellite Prewiring | Yes | - | - | - |
| Surround Sound | No | - | - | - |
| Bunkhouse | No | - | - | - |
| Power Retractable Slideout | Yes | - | - | - |
| Washer / Dryer Prewiring | No | - | - | - |
| Overhead Fan | Yes | Overhead Fan | - | - |
| Seat Armrests | Yes | - | - | - |
| Turbocharged | Yes | - | - | - |
| Heat Prewiring | Yes | - | - | - |
| Refrigerator | Standard | - | - | - |
Specs
Buy Now
More
Supercharged
No
Battery Power Converter
Yes
Power Retractable Awning
Yes
Wallpaper
Yes
Overdrive
Yes
Screened Room
No
Swivel Seats
Yes
Cable Prewiring
Yes
Reclining Seats
Yes
Air Conditioning Prewiring
Yes
Water Heater Tank Bypass
Yes
Power Adjustable Seat
No
Sliding Glass Door
No
TV Antenna Prewiring
Yes
Interior Wood Finish
Yes
Satellite Prewiring
Yes
Surround Sound
No
Bunkhouse
No
Power Retractable Slideout
Yes
Washer / Dryer Prewiring
No
Overhead Fan
Yes
Seat Armrests
Yes
Turbocharged
Yes
Heat Prewiring
Yes
Refrigerator
Standard
Cabin Specs
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Seats | 2 | - | - | - |
| Seat Type | Bucket | - | - | - |
| Number Of Rows | 1 | - | - | - |
| Seat Material | Leather | - | - | - |
| Seat Specifications | Standard | - | - | - |
Specs
Buy Now
More
Number Of Seats
2
Seat Type
Bucket
Number Of Rows
1
Seat Material
Leather
Seat Specifications
Standard
Cargo
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Storage Capacity | 37.4 / 240.4 / 1059 cuft/gal/l | - | - | - |
Specs
Buy Now
More
Storage Capacity
37.4 / 240.4 / 1059 cuft/gal/l
Chasis
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Chassis Model | 3500 | - | - | - |
| Chassis Brand | Mercedes-Benz® Sprinter | - | - | - |
Specs
Buy Now
More
Chassis Model
3500
Chassis Brand
Mercedes-Benz® Sprinter
Drivetrain
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Transmission Type | Automatic | - | - | - |
| Number Of Speeds | 5 | - | - | - |
| Driveline Type | 4X2 | - | - | - |
Specs
Buy Now
More
Transmission Type
Automatic
Number Of Speeds
5
Driveline Type
4X2
Engine
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Carburetion | Standard | - | - | - |
| Engine Type | V6 | - | - | - |
| Carburetion Type | Fuel Injected | - | - | - |
| Torque | 440.6 Nm | - | - | - |
| Torque RPM | 1400 | - | - | - |
| Engine Brand Name | Mercedes-Benz® | - | - | - |
| Horsepower | 188 bhp | - | - | - |
| Horsepower RPM | 3800 | - | - | - |
| Cylinders | 6 | - | - | - |
Specs
Buy Now
More
Carburetion
Standard
Engine Type
V6
Carburetion Type
Fuel Injected
Torque
440.6 Nm
Torque RPM
1400
Engine Brand Name
Mercedes-Benz®
Horsepower
188 bhp
Horsepower RPM
3800
Cylinders
6
Entertainment
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Discs | 1 | - | - | - |
| Speaker Location | Interior | RecPro Exterior Speakers | - | - |
| Number Of Televisions | 1 | Insignia LED HD Alexa TV | Shop RV TV's | - |
Specs
Buy Now
More
Number Of Discs
1
Speaker Location
Interior
Number Of Televisions
1
Entertainment Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Fuel & MPG
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Fuel Capacity | 26.4 / 99.9 gal/l | 5Gal Gas Can | - | - |
| Fuel Type | Diesel | Fuel Treatment | - | - |
Specs
Buy Now
More
Fuel Capacity
26.4 / 99.9 gal/l
Fuel Type
Diesel
Fuel & MPG Best Sellers
Top-rated products RV owners use to upgrade or maintain their RV.
Instrumentation
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Number Of Radios | 2 | - | - | - |
Specs
Buy Now
More
Number Of Radios
2
Quick Overview
| Specs | Value | Buy | Shop All | Top 5 |
|---|---|---|---|---|
| Parent Company | Winnebago Industries | - | - | - |
| Year | 2014 | - | - | - |
| Make | Winnebago | - | - | - |
| Display Name | View 24M | - | - | - |
| Class | Class C | - | - | - |
| Max Sleeping Count | 6 | - | - | - |
| Number of Slideouts | 1 | - | - | - |
| Introduction Year | 2012 | - | - | - |
Specs
Buy Now
More
Parent Company
Winnebago Industries
Year
2014
Make
Winnebago
Display Name
View 24M
Class
Class C
Max Sleeping Count
6
Number of Slideouts
1
Introduction Year
2012
How We Scored This RV
Our MintRV Rating analyzes over 50 specifications across 5 key dimensions. Each dimension starts at 5.0 points and adjusts based on how this RV's specs compare to others in its class. Below is exactly how we calculated each score for this class c.
Drivability & Handling
8.5/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+3.5
Final Drivability & Handling
8.5
Living Space & Layout
6.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+1.3
Final Living Space & Layout
6.3
Comfort & Features
5.3/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.3
Final Comfort & Features
5.3
Storage Space
5.0/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.0
Final Storage Space
5.0
Off-Grid & Campsites
5.8/10
Base Score
5.0
Spec-based adjustments
Based on Class C class averages
+0.8
Final Off-Grid & Campsites
5.8
About Our Rating Methodology
MintRV Ratings are calculated using verified manufacturer specifications. We compare each RV against others in its class type and weight category. Scores are updated when new specs become available. Learn more about our methodology →
Owner Reviews
No reviews yet. Be the first to share your experience!
Frequently Asked Questions
To safely tow the 2014 Winnebago View 24m, ensure your vehicle's rated tow capacity exceeds its GVWR of 11030 lbs. With a dry weight of lbs and hitch weight of lbs, most midsize trucks and SUVs can tow it comfortably with a 10-20% safety margin.
This Class C has a dry weight of lbs and a GVWR of 11030 lbs, giving a payload capacity of lbs for gear, water, and supplies.
The approximate dimensions are length 294 in., width 90 in., and height 135 in. Always confirm clearances for garages, storage, and campsites.
The View 24m includes a fresh water capacity of gallons, black water tank(s), and lbs of propane capacity-ideal for off-grid weekends.
Many View 24m owners add a weight-distribution hitch, brake controller, leveling system, and portable generator to improve towing comfort. Solar kits, backup cameras, and upgraded tires are also popular upgrades.
With a GVWR of 11030 lbs and dry weight of lbs, the View 24m is light enough for smaller tow vehicles yet rugged enough for light off-road travel. Add solar, extra propane, and a generator for extended off-grid stays.
This floorplan sleeps up to 6 people comfortably - perfect for couples or small families seeking a lightweight, easy-tow Class C.
The View 24m features body construction with sidewalls and 1 axle(s). Its GVWR of 11030 lbs ensures strength without excessive towing weight.
?? Tip: Always check your vehicle's specific towing capacity in the owner's manual. Consider payload and tongue weight too!
As an Amazon Associate, we may earn from qualifying purchases. Your price stays the same.
"Our mission at Mint RV is to help people make well-informed RV buying decisions, so they can escape the stress of everyday life, reconnect with family, and create unforgettable memories in the great outdoors"
